SF63 Serial RS232/422/485 to Fiber Converter

Overview SF63

The SF63 Industrial Serial to Fiber Media Converter Series provide industrial conversion between 100BaseFX(SC or ST connector), RS-232, and RS-422/485; connection options include multi-mode SC/ST connector (2km), and single- mode SC/ST connector (30km). The SF63 Serial to Fiber Media Converter is designed for harsh industrial environments, and complies with FCC/CE standards.

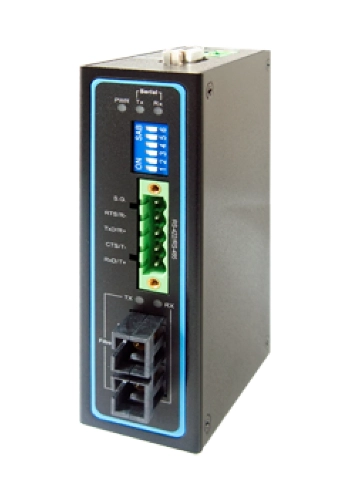

Serial to fiber converter

Features SF63

  • RS-232/422/485 interface, 2 - 4 wire
  • Supports Multi-mode 2KM, Single-mode 30KM
  • Serial transmission speeds 300bps to 921.6Kbps(RS-422/485), 300bps to 115.2Kbps(RS-232)
  • PTP and Ring mode for serial fiber ring communication
  • Supports RS-485 120 ohm line terminator
  • Supports RS-485 Data signals pull high/low resister
  • DIN Rail mounting

Interfaces

  • 1x RS232/422/485 (Terminal Block)
  • 1x Duplex ST or SC, multimode 850nm Port
  • SF63-TB-DB-1Fm-SC-2 (multi-mode): 850nm, 2Km
  • SF63-TB-DB-1Fs-SC-30 (single-mode):1310nm, 30Km
  • SF63-TB-DB-1Fm-ST-2 (multi-mode): 1310nm, 2Km
  • SF63-TB-DB-1Fs-ST-30 (single-mode):1310nm, 30Km

Power

  • Input Power: 9-48 V DC

Environmental

  • Operating Temperature -40 to 70°C
  • Operating Humidity 5% to 95% Non-condensing

Physical Characteristics

  • Dimensions (mm): 34.4 x 91.2 x 120mm
  • Enclosure: metal - IP30
  • Warranty: 5 years

Accessories

  • NDR- series, DIN-Rail power supply
