PT-PIS4PB1-AC

Industrial 4-port unmanaged Gigabit PoE Ethernet switch

Overview
The PT-PIS4PB1-AC Series is an industrial-grade, DIN-rail mountable device with a built-in AC to DC power supply. It supports direct power input of 100-240VAC, delivering a total power of up to 200W. Alternatively, DC power input can be selected, providing up to 360W

It works with a wide input voltage of 100-240Vac and operates from -40℃ to 75℃. This model includes 1 LAN data uplink, 1 power input terminal block and 4 PoE ports, providing 90W each port power for remote PDs over 4 pairs output at 10/100/1000Mbps of data speed. Each PoE port is compliant with BT standard and backward compatible with 802.3af/at. Such as power for Pan Tilt Zoom cameras/IP cameras, VoIP video phones, building/access control equipment, WiFi access devices, POS terminals, thin clients, kiosks, and IP print servers.

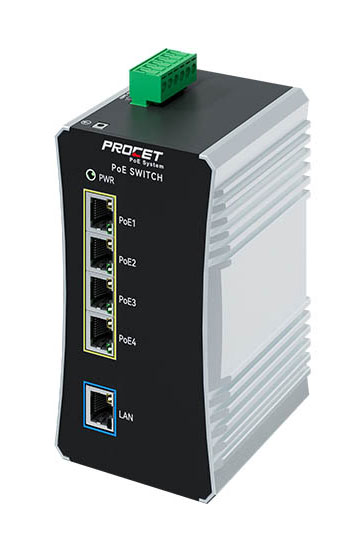

procet switch

Features

  • 4-Port BT 90W PoE Switch
  • PoE IEEE802.3af/at/bt
  • Backplane Bandwidth: 14Gbps
  • AC to DC
  • Surge protection at PoE port
  • AC Input Voltage:100 to 240Vac
  • Rigid IP-40 housing; DIN-Rail

Specifications

Interfaces

PT-PIS4PB1S-AC

  • 4x 10/100/1000Base-TX with P.S.E. ports
  • 1x 100/1000BaseX SFP LAN Port

PT-PIS4PB1T-AC

  • 4x 10/100/1000Base-TX with P.S.E. ports
  • 1x 10/100/1000Base-TX (RJ45) LAN port

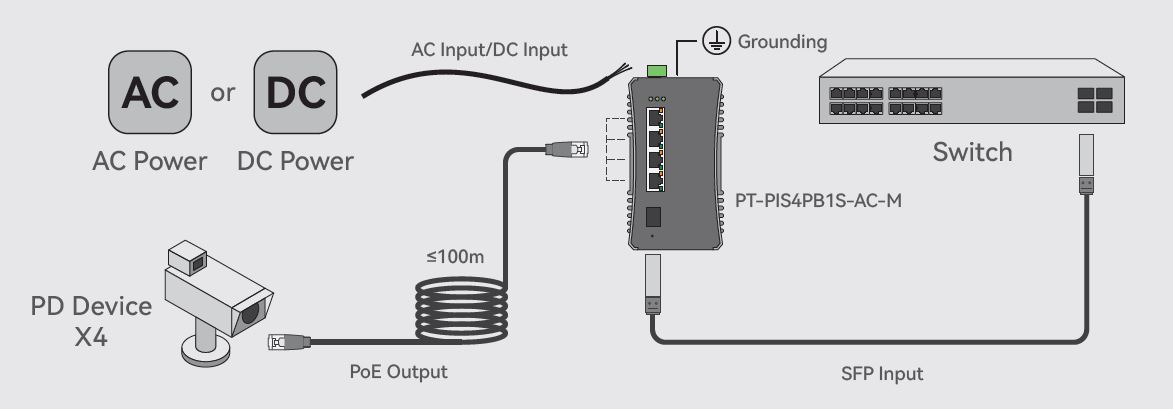

procet topo

Power

  • Dual inputs: AC 100-240VAC + DC 48-55VDC on terminal block
  • Power Consumption (Typ.) 13,2 Watts
  • Overload Current Protection Present

PoE

  • PoE power budget input 100-240VAC: 200W max - 90W/port
  • PoE power budget input 48-55VDCC: 360W max - 90W/port

Environmental

  • Operating Temperature -40 to 75°C (-40 to 167°F)
  • Operating Humidity 20% to 80% Non-condensing

Physical Characteristics

  • Dimensions (mm): 76(W) x 95(D) x 146(H)
  • Enclosure: metallic - IP40

Accessories

  • NDR-240 series, 240W Din Rail Power Supply
  • SFP1G series 1Gbps SFP optical transceiver
  • SFP100 series 100Mbps SFP optical transceiver
