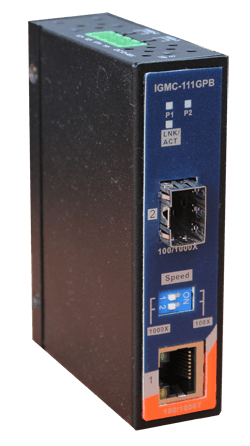

IGMC-111GPB Industrial Media Converter

Industrial mini type Gigabit Ethernet to fiber media converter with 1x100/1000Base-T(X) and 1x100/1000Base-X, SFP socket

Overview
IGMC-111GPB is a cost-effective solution for the conversion between 100/1000Base-T(X) and 100/1000Base-X interface, it allows you to extend communication distance by optical fiber. IGMC-111GPB supports MDI/MDIX auto detection, so you don’t need to use crossover wires. IGMC-111GPB with wide operating temperature range from -40 ~ 70°C and accepts a wide voltage range from dual 12 ~ 48 VDC power inputs, so it is suitable for harsh operating environments.

IGMC-111GPB Industrial Media Converter

Features

  • 1 ports 100/1000Base-T(X)
  • 1 port 1000Base-X SFP
  • Supports store and forward transmission
  • Provided DIP-Switch to setting SFP speed
  • DIN Rail  mounting
  • Rigid IP-30 housing design

Interfaces

  • 1x 100/1000BaseX slot SFP
  • 1x 100/1000Base-T(X) Ports in RJ45

Power

  • Input Power: Dual 12-48VDC inputs on 4pin terminal block
  • Power Consumption (Typ.) 3,6 Watts

Environmental

  • Operating Temperature -40 to 70°C
  • Operating Humidity 5% to 95% Non-condensing

Physical Characteristics

  • Dimensions (mm): 26.1 (W) x 70 (D) x 95 (H)
  • Enclosure: metal - IP30

Accessories

  • NDR DIN-Rail power supply
  • SFP 100M / 1G modules
