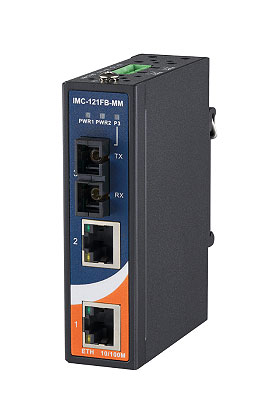

IMC-121FB Series
Industrial mini type Ethernet to fiber media converter with 2x10/100Base-T(X) and 1x100Base-FX
Overview
IMC-121FB series are industrial media converters providing media conversion between 10/100Base-T(X) and 100Base-FX. IMC-121FB series feature rigid IP-30 housing design and support wide operating temperature range from -40 to 70˚C. Therefore, IMC-121FB series are reliable media converter and can satisfy most demands of operating environments.
Features
- 2 ports 10/100Base-T(X)
- 1 port 100Base-X multimode or singlemode SC connector
- Mini type format
- Supports store and forward transmission
- DIN Rail & wall mounting
- Rigid IP-30 housing design
Interfaces
IMC-121FB-MM-SC
- 1x 100BaseFX, multimode 1310nm, up to 2Km, Duplex SC connector
- 2x 10/100Base-T(X) Ports in RJ45
Interfaces
IMC-121FB-SS-SC
- 1x 100BaseLX, singlemode 1310nm, up to 30Km, Duplex SC connector
- 2x 10/100Base-T(X) Ports in RJ45
Power
- Input Power: Dual 12-48VDC inputs on 4pin terminal block
- Power Consumption (Typ.) 4,5 Watts
Environmental
- Operating Temperature -40 to 70°C
- Operating Humidity 5% to 95% Non-condensing
Physical Characteristics
- Dimensions (mm): 95(H)x 26,1(W) x 70(D)
- Enclosure: metal - IP30
Accessories
- NDR DIN-Rail power supply
