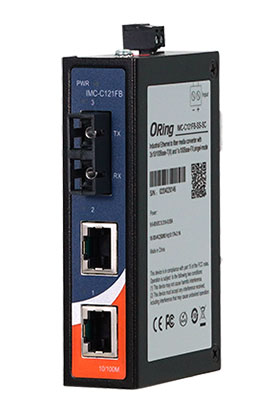

IMC-C121FB Series
Industrial mini type Ethernet to fiber media converter with 2x10/100Base-T(X) and 1x100Base-FX
Overview
IMC-C121FB series are industrial media converters providing media conversion between 10/100Base-T(X) and 100Base-FX. IMC-C121FB series feature rigid IP-40 housing design and support wide operating temperature range from -10 to 60˚C. Therefore, IMC-1C21FB series are reliable media converter and can satisfy most demands of operating environments.
Features
- 2 ports 10/100Base-T(X)
- 1 port 100Base-X multimode or singlemode SC connector
- QoS supported to process critical data in heavy traffic
- Supports store and forward transmission
- DIN Rail mounting
- Rigid IP-40 housing design
Interfaces
IMC-C121FB-MM-SC
- 1x 100BaseFX, multimode 1310nm, up to 2Km, Duplex SC connector
- 2x 10/100Base-T(X) Ports in RJ45
Interfaces
IMC-C121FB-SS-SC
- 1x 100BaseLX, singlemode 1310nm, up to 30Km, Duplex SC connector
- 2x 10/100Base-T(X) Ports in RJ45
Power
- Input Power: 9,6~60VDC/24VAC (18~30 VAC) on 2-pin terminal block.
- Power Consumption (Typ.) 3 Watts
Environmental
- Operating Temperature -10 to 60°C
- Operating Humidity 5% to 95% Non-condensing
Physical Characteristics
- Dimensions (mm): 103(H)x 26(W) x 64(D)
- Enclosure: metal - IP40
Accessories
- NDR DIN-Rail power supply
