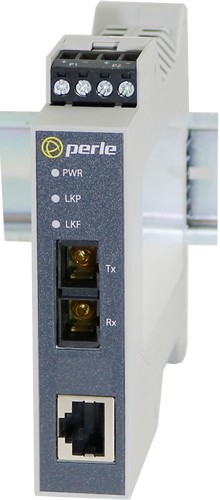

SR-100-XT
Industrial mini type Fast Ethernet to fiber media converter with 1x100Base-T(X) and 1x100Base-X
Overview
SR-100 DIN Rail Media Converter transparently connects UTP CAT5/6/7 copper to fiber in electric utility and power substation environments. With an extended operating temperature range of -40°C to 75°C and advanced electrical certifications these fiber to Ethernet converters meet all requirements necessary to operate safely in the harsh electrical environments.
Advanced features such as Auto-Negotiation, Auto-MDIX, Link Pass-Through, Far End Fault, and Pause which make the end to end link completely transparent. This allows for more efficient troubleshooting and less on-site maintenance.
Features
- Support 1 ports 100Base-T(X)

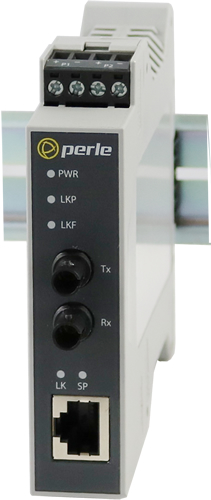

- Support 1 port 100Base-X SC / ST fiber port
- Smart Link Pass Through, Far-End Fault, Auto-MDIX
- Supports store and forward transmission
- DIN Rail mounting
- Molded plastic rigid IP-20 housing design
Interfaces
- 1x 100BaseX, Duplex or Simplex SC / ST
- 1x 100Base-T(X) Ports in RJ45
Environmental
- Operating Temperature -40 to 75°C
- Operating Humidity 5% to 95% Non-condensing
Power
- Input Power: Triple voltage 12/24/48 VDC (9,6 – 60 VDC) input supporting:
- 2 x Terminal Block power input and
- 1 x T-Bus power input
Physical Characteristics
- Dimensions (mm): 114 x 100 x 22.5
- Enclosure: plastic - IP20
- Warranty: Limited Lifetime
Accessories
- UNO- series, 30W DIN-Rail power supply
| Model | Connector | Type | Fiber Type | Wavelenght(nm) | Distance |
|---|---|---|---|---|---|
| SR-100-SC2-XT | Dual SC | 100BaseFX | MM | 1310 | 2Km |
| SR-100-ST2-XT | Dual ST | ||||
| SR-100-SC20-XT | Dual SC | 100BaseLX | SM | 1310 | 20Km |
| SR-100-ST20-XT | Dual ST | ||||
| SR-100-SC40-XT | Dual SC | 100BaseEX | SM | 1310 | 40Km |
| SR-100-ST40-XT | Dual ST |
| Model | Connector | Type | Fiber Type | Wavelenght (nm) | Operating Distance |
|---|---|---|---|---|---|
| SR-100-SC20U-XT | Simplex SC | 100BaseBX | SM | 1310nm TX / 1550nm RX | 20Km |
| SR-100-SC20D-XT | 1550nm TX / 1310nm RX |
