SR-1110-SFP

Industrial mini type Gigabit Ethernet to fiber media converter with 1x100/1000Base-T(X) and 1x100/1000Base-X, SFP socket

Overview
The Perle SR-1110-SFP DIN Rail Media Converter transparently connects UTP copper to fiber. A pluggable fiber optics port allows for flexible network configurations using SFP transceivers supplied by Perle, Cisco or other manufacturers of MSA compliant SFPs.

An SR-1110-SFP Media Converter is also available with support for -40C to +75C (-40F to +167F) extended operating temperatures.

Network Administrators can rest assured with Perle's advanced features such as Auto-Negotiation, Auto-MDIX, Link Pass-Through, Far End Fault, and Pause which make the end to end link completely transparent. This allows for more efficient troubleshooting and less on-site maintenance.

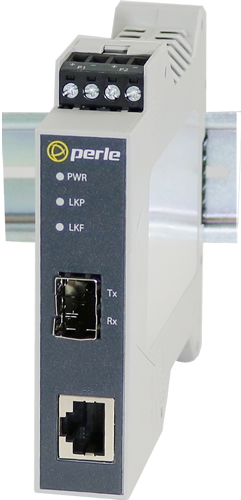

sr-1100-sfp

Features

  • Support 1 ports 10/100/1000Base-T(X) auto-negotiation and auto-MDI/MDI-X
  • Support 1 port 100/1000Base-X SFP fiber port
  • Smart Link Pass Through, Far-End Fault, Auto-MDIX
  • Transparent to jumbo packets up to 10KB
  • Supports store and forward transmission
  • DIN Rail mounting
  • Molded plastic rigid IP-20 housing design

Interfaces

  • 1x 100/1000BaseX, slot SFP
  • 1 x 10/100/1000Base-T(X) Ports in RJ45

SR-1110-SFP - Operating Temperature -10 to 60°C

SR-1110-SFP-XT - Operating Temperature -40 to 75°C

Power

  • Input Power: Triple voltage 12/24/48 VDC (9,6 – 60 VDC) input supporting:
  1. 2 x Terminal Block power input and
  2. 1 x T-Bus power input

Physical Characteristics

  • Dimensions (mm): 114 x 100 x 22.5
  • Enclosure: plastic - IP20
  • Warranty: Limited Lifetime

Environmental

  • Operating Humidity 5% to 95% Non-condensing

Accessories

  • SFP series 1Gbps optical transceiver
  • SFP series 100Mbps optical transceiver
  • UNO- series, 30W DIN-Rail power supply
