Conversores Fibra Óptica PoE
Completa línea de Conversores Ópticos PoE. Permiten la conexión transparente entre cobre y fibra, suministrando al mismo tiempo alimentación Power over Ethernet (PoE) a dispositivos compatibles, basados sobre los estándares PoE, PoE+ y High-PoE, como videocamaras IP, telefonos VoIP y puntos de accesso wireless.
- Conversores ópticos de 1-2 puertas PSE y 1-2 porte ópticas
- Funcionalidades avanzadas para la gestión del link de fibra
- Dual Fiber y Single Fiber. Conectores SFP, Duplex / Simplex SC o ST
Conversor Fast Ethernet PoE y PoE+
- 1x 10/100TX PSE + 1x 100BaseX
- Para fibras multimodo/monomodo; Conectores SFP, SC y ST. Hasta 120 km
- Funcionalidades avanzadas - Link Pass-Through, Far-End Fault, Auto-MDIX y Loopback
- Soporte Dispositivos PD: Tipo 1 PoE, Tipo 2 PoE+
- PD power classification detection (Class 0,1,2,3,4)
- PD Power Reset
- Versiones Temperatura Industrial -40ºC a 75ºC
Power over Ethernet IEEE 802.3af hasta 15,4W
| Modelos PoE | Temp. Industrial | Descripción óptica | Con. |
|---|---|---|---|
| SFP | |||
| S-110P-SFP | 100Base-X | SFP | |
| S-110P-SFP-XT | 100Base-X | SFP | |
| Multimodo | |||
| S-110P-M2SC2 S-110P-M2ST2 |
100Base-FX 1310nm, 2 Km | SC ST |
|
| S-110P-M2SC2-XT S-110P-M2ST2-XT |
100Base-FX 1310nm, 2 Km | SC ST |
|
| Monomodo | |||
| S-110P-S2ST20 S-110P-S2SC20 |
100Base-LX 1310nm, 20 Km | ST SC |
|
| S-110P-S2ST20-XT S-110P-S2SC20-XT |
100Base-LX 1310nm, 20 Km | ST SC |
|
| S-110P-S2SC40 S-110P-S2ST40 |
100Base-EX 1310nm, 40 Km | SC ST |
|
| S-110P-S2SC80 S-110P-S2ST80 |
100Base-ZX 1550nm, 80 Km | SC ST |
|
| S-110P-S2SC120 S-110P-S2ST120 |
100Base-ZX 1550nm, 120 Km | SC ST |
|
Power over Ethernet IEEE 802.3af hasta 15,4W - Bidireccionales Single Fiber
| Modelos PoE | Temp. Industrial | Descripción óptica | Con. |
|---|---|---|---|
| Multimodo BIDIreccional | |||
| S-110P-M1SC2U S-110P-M1SC2D |
1310nmTX/1550nmRX, 2 km 1550nmTX/1310nmRX, 2 km |
SC | |
| Monomodo BIDIreccional | |||
| S-110P-S1SC20U S-110P-S1SC20D |
1310nmTX/1550nmRX, 20 km 1550nmTX/1310nmRX, 20 km |
SC | |
| S-110P-S1SC20U-XT S-110P-S1SC20D-XT |
1310nmTX/1550nmRX, 20 km 1550nmTX/1310nmRX, 20 km |
SC | |
Power over Ethernet IEEE 802.3af/at hasta 30W
| Modelos PoE+ | Temp. Industrial | Descripción óptica | Con. |
|---|---|---|---|
| SFP | |||
| S-110PP-SFP | 100Base-X | SFP | |
| S-110PP-SFP-XT | 100Base-X | SFP | |
| Multimodo | |||
| S-110PP-M2SC2 S-110PP-M2ST2 |
100Base-FX 1310nm, 2 Km | SC ST |
|
| S-110PP-M2SC2-XT S-110PP-M2ST2-XT |
100Base-FX 1310nm, 2 Km | SC ST |
|
| Monomodo | |||
| S-110PP-S2ST20 S-110PP-S2SC20 |
100Base-LX 1310nm, 20 Km | ST SC |
|
| S-110PP-S2ST20-XT S-110PP-S2SC20-XT |
100Base-LX 1310nm, 20 Km | ST SC |
|
| S-110PP-S2SC40 S-110PP-S2ST40 |
100Base-EX 1310nm, 40 Km | SC ST |
|
| S-110PP-S2SC80 S-110PP-S2ST80 |
100Base-ZX 1550nm, 80 Km | SC ST |
|
| S-110PP-S2SC120 S-110PP-S2ST120 |
100Base-ZX 1550nm, 120 Km | SC ST |
|
Power over Ethernet IEEE 802.3af/at hasta 30W - Bidireccionales Single Fiber
| Modelos PoE+ | Temp. Industrial | Descripción | Con. |
|---|---|---|---|
| Multimodo BIDIreccional | |||
| S-110PP-M1SC2U S-110PP-M1SC2D |
1310nmTX/1550nmRX - 2 km 1550nmTX/1310nmRX - 2 km |
SC | |
| Monomodo BIDIreccional | |||
| S-110PP-S1SC20U S-110PP-S1SC20D |
1310nmTX/1550nmRX - 20 km 1550nmTX/1310nmRX - 20 km |
SC | |
| S-110PP-S1SC20U-XT S-110PP-S1SC20D-XT |
1310nmTX/1550nmRX - 20 km 1550nmTX/1310nmRX - 20 km |
SC | |
Conversor Gigabit PoE y PoE+
- 1-2x 10/100/1000TX PSE +1-2x 1000BaseX
- Par Fibras multimodo/monomodo; Conectores SFP, SC y ST. Hasta 160 km.
- Funcionalidades avanzadas - Link Pass-Through, Far-End Fault, Auto-MDIX e Loopback
- Soporte Dispositivos PD: Tipo 1 PoE, Tipo 2 PoE+
- PD power classification detection (Class 0,1,2,3,4)
- PD Power Reset
- Redundancia Fibra
- Versiones Temperatura Industrial -40ºC a 75ºC
Power over Ethernet IEEE 802.3af hasta 15,4W
| Modelos PoE | Temp. Ind. | Puertas PSE | Descripción óptica | Con. |
|---|---|---|---|---|
| SFP | ||||
| S-1110P-SFP | 1 | 1x 100/1000Base-X | SFP | |
| S-1110P-SFP-XT | 1 | 1x 100/1000Base-X | SFP | |
| S-1110P-DSFP | 1 | 2x 100/1000Base-X | SFP | |
| S-1110DP-SFP | 2 | 1x 100/1000Base-X | SFP | |
| S-1110DP-DSFP | 2 | 2x 100/1000Base-X | SFP | |
| Multimodo | ||||
| S-1110P-M2SC05 S-1110P-M2ST05 |
1 | 1x 1000Base-SX 850nm, 550m | SC ST |
|
| S-1110DP-M2SC05 S-1110DP-M2ST05 |
2 | SC ST |
||
| S-1110P-M2SC05-XT S-1110P-M2ST05-XT |
1 | SC ST |
||
| S-1110P-M2SC2 S-1110P-M2ST2 |
1 | 1x 1000Base-LX 1310nm, 2 Km | SC ST |
|
| S-1110DP-M2SC2 S-1110DP-M2ST2 |
2 | SC ST |
||
| Monomodo | ||||
| S-1110P-S2ST10 S-1110P-S2SC10 |
1 | 1x 1000Base-LX 1310nm, 10 Km | ST SC |
|
| S-1110DP-S2ST10 S-1110DP-S2SC10 |
2 | ST SC |
||
| S-1110P-S2ST10-XT S-1110P-S2SC10-XT |
1 | ST SC |
||
| S-1110P-S2SC40 S-1110P-S2ST40 |
1 | 1x 1000Base-EX 1310nm, 40 Km | SC ST |
|
| S-1110DP-S2SC40 S-1110DP-S2ST40 |
2 | SC ST |
||
| S-1110P-S2SC70 S-1110P-S2ST70 |
1 | 1x 1000Base-ZX 1550nm, 70 Km | SC ST |
|
| S-1110DP-S2SC70 S-1110DP-S2ST70 |
2 | SC ST |
||
| S-1110P-S2SC120 S-1110P-S2ST120 |
1 | 1x 1000Base-ZX 1550nm, 120 Km | SC ST |
|
| S-1110DP-S2SC120 S-1110DP-S2ST120 |
2 | 1x 1000Base-ZX 1550nm, 120 Km | SC ST |
|
| S-1110P-S2SC160 S-1110P-S2ST160 |
1 | 1x 1000Base-ZX 1550nm, 160 Km | SC ST |
|
| S-1110DP-S2SC160 S-1110DP-S2ST160 |
2 | 1x 1000Base-ZX 1550nm, 160 Km | SC ST |
|
Power over Ethernet IEEE 802.3af hasta 15,4W - Bidireccionales Single Fiber
| Modelos PoE | Puertas PSE | Descripción óptica | Con. |
|---|---|---|---|
| Monomodo BIDIreccional - 1000BaseBX | |||
| S-1110P-S1SC10U S-1110P-S1SC10D |
1 | 1310nmTX/1490nmRX, 10 km 1490nmTX/1310nmRX, 10 km |
SC |
| S-1110DP-S1SC10U S-1110DP-S1SC10D |
2 | 1310nmTX/1490nmRX, 10 km 1490nmTX/1310nmRX, 10 km |
SC |
| S-1110P-S1SC20U S-1110P-S1SC20D |
1 | 1310nmTX/1490nmRX, 20 km 1490nmTX/1310nmRX, 20 km |
SC |
| S-1110DP-S1SC20U S-1110DP-S1SC20D |
2 | 1310nmTX/1490nmRX, 20 km 1490nmTX/1310nmRX, 20 km |
SC |
| S-1110P-S1SC40U S-1110P-S1SC40D |
1 | 1310nmTX/1490nmRX, 40 km 1490nmTX/1310nmRX, 40 km |
SC |
| S-1110DP-S1SC40U S-1110DP-S1SC40D |
2 | 1310nmTX/1490nmRX, 40 km 1490nmTX/1310nmRX, 40 km |
SC |
| S-1110P-S1SC80U S-1110P-S1SC80D |
1 | 1510nmTX/1590nmRX, 80 km 1590nmTX/1510nmRX, 80 km |
SC |
| S-1110DP-S1SC80U S-1110DP-S1SC80D |
2 | 1510nmTX/1590nmRX, 80 km 1590nmTX/1510nmRX, 80 km |
SC |
| S-1110P-S1SC120U S-1110P-S1SC120D |
1 | 1510nmTX/1590nmRX, 120 km 1590nmTX/1510nmRX, 120 km |
SC |
| S-1110DP-S1SC120U S-1110DP-S1SC120D |
2 | 1510nmTX/1590nmRX, 120 km 1590nmTX/1510nmRX, 120 km |
SC |
Power over Ethernet IEEE 802.3af/at hasta 30W
| Modelos PoE+ | Temp. Ind. | Puertas PSE | Descripción óptica | Con. |
|---|---|---|---|---|
| SFP | ||||
| S-1110PP-SFP | 1 | 1x 100/1000Base-X | SFP | |
| S-1110PP-SFP-XT | 1 | 1x 100/1000Base-X | SFP | |
| S-1110PP-DSFP | 1 | 2x 100/1000Base-X | SFP | |
| S-1110DPP-SFP | 2 | 1x 100/1000Base-X | SFP | |
| S-1110DPP-DSFP | 2 | 2x 100/1000Base-X | SFP | |
| Multimodo | ||||
| S-1110PP-M2SC05 S-1110PP-M2ST05 |
1 | 1x 1000Base-SX 850nm, 550m | SC ST |
|
| S-1110DPP-M2SC05 S-1110DPP-M2ST05 |
2 | SC ST |
||
| S-1110PP-M2SC05-XT S-1110PP-M2ST05-XT |
1 | SC ST |
||
| S-1110PP-M2SC2 S-1110PP-M2ST2 |
1 | 1x 1000Base-LX 1310nm, 2 Km | SC ST |
|
| S-1110DPP-M2SC2 S-1110DPP-M2ST2 |
2 | SC ST |
||
| Monomodo | ||||
| S-1110PP-S2ST10 S-1110PP-S2SC10 |
1 | 1x 1000Base-LX 1310nm, 10 Km | ST SC |
|
| S-1110DPP-S2ST10 S-1110DPP-S2SC10 |
2 | ST SC |
||
| S-1110PP-S2ST10-XT S-1110PP-S2SC10-XT |
1 | ST SC |
||
| S-1110PP-S2SC40 S-1110PP-S2ST40 |
1 | 1x 1000Base-EX 1310nm, 40 Km | SC ST |
|
| S-1110DPP-S2SC40 S-1110DPP-S2ST40 |
2 | SC ST |
||
| S-1110PP-S2SC70 S-1110PP-S2ST70 |
1 | 1x 1000Base-ZX 1550nm, 70 Km | SC ST |
|
| S-1110DPP-S2SC70 S-1110DPP-S2ST70 |
2 | SC ST |
||
| S-1110PP-S2SC120 S-1110PP-S2ST120 |
1 | 1x 1000Base-ZX 1550nm, 120 Km | SC ST |
|
| S-1110DPP-S2SC120 S-1110DPP-S2ST120 |
2 | 1x 1000Base-ZX 1550nm, 120 Km | SC ST |
|
| S-1110PP-S2SC160 S-1110PP-S2ST160 |
1 | 1x 1000Base-ZX 1550nm, 160 Km | SC ST |
|
| S-1110DPP-S2SC160 S-1110DPP-S2ST160 |
2 | 1x 1000Base-ZX 1550nm, 160 Km | SC ST |
|
Power over Ethernet IEEE 802.3af/at hasta 30W - Bidireccionales Single Fiber
| Modelos PoE+ | Puertas PSE | Descripción óptica | Con. |
|---|---|---|---|
| Monomodo BIDIreccional - 1000BaseBX | |||
| S-1110PP-S1SC10U S-1110PP-S1SC10D |
1 | 1310nmTX/1490nmRX, 10 km 1490nmTX/1310nmRX, 10 km |
SC |
| S-1110DPP-S1SC10U S-1110DPP-S1SC10D |
2 | 1310nmTX/1490nmRX, 10 km 1490nmTX/1310nmRX, 10 km |
SC |
| S-1110PP-S1SC20U S-1110PP-S1SC20D |
1 | 1310nmTX/1490nmRX, 20 km 1490nmTX/1310nmRX, 20 km |
SC |
| S-1110DPP-S1SC20U S-1110DPP-S1SC20D |
2 | 1310nmTX/1490nmRX, 20 km 1490nmTX/1310nmRX, 20 km |
SC |
| S-1110PP-S1SC40U S-1110PP-S1SC40D |
1 | 1310nmTX/1490nmRX, 40 km 1490nmTX/1310nmRX, 40 km |
SC |
| S-1110DPP-S1SC40U S-1110DPP-S1SC40D |
2 | 1310nmTX/1490nmRX, 40 km 1490nmTX/1310nmRX, 40 km |
SC |
| S-1110PP-S1SC80U S-1110PP-S1SC80D |
1 | 1510nmTX/1590nmRX, 80 km 1590nmTX/1510nmRX, 80 km |
SC |
| S-1110DPP-S1SC80U S-1110DPP-S1SC80D |
2 | 1510nmTX/1590nmRX, 80 km 1590nmTX/1510nmRX, 80 km |
SC |
| S-1110PP-S1SC120U S-1110PP-S1SC120D |
1 | 1510nmTX/1590nmRX, 120 km 1590nmTX/1510nmRX, 120 km |
SC |
| S-1110DPP-S1SC120U S-1110DPP-S1SC120D |
2 | 1510nmTX/1590nmRX, 120 km 1590nmTX/1510nmRX, 120 km |
SC |

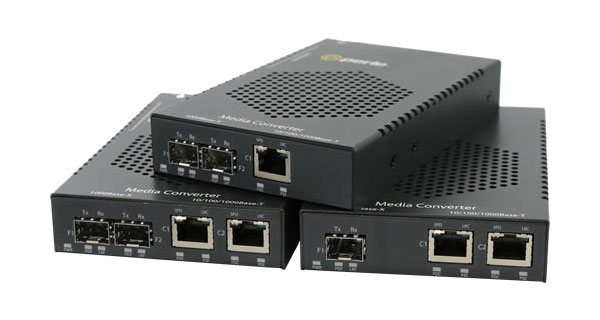

Conversor Gigabit HiPoE
- 1-2x 10/100/1000TX PSE + 1-2x 1000BaseX
- Para Fibras multimodo/monomodo; Conectores SFP, SC y ST. Hasta 160 km
- Funcionalidades avanzadas - Link Pass-Through, Far-End Fault, Auto-MDIX y Loopback
- PD Power Reset
- Soporte Dispositivos PD: Tipo 1 PoE, Tipo 2 PoE+, Tipo 3 Hi-PoE y Tipo 4 Hi-PoE
- PD power classification detection (Class 0,1,2,3,4)
- Redundancia Fibra
- Versiones Temperatura Industrial -40ºC a 75ºC
Power over Ethernet IEEE 802.3 af/at/bt hasta 100W
| Modelos Temp. standard | Modelos Temp. Industrial | PSE | Descripción | Con. |
|---|---|---|---|---|
| SFP | ||||
| S-1110HP-SFP | S-1110HP-SFP-XT | 1 | 1x 100/1000Base-X | SFP |
| S-1110HP-DSFP | S-1110HP-DSFP-XT | 1 | 2x 100/1000Base-X | SFP |
| S-1110HP-SFP | S-1110DHP-SFP-XT | 2 | 1x 100/1000Base-X | SFP |
| S-1110HP-DSFP | S-1110DHP-DSFP-XT | 2 | 2x 100/1000Base-X | SFP |
| Multimodo | ||||
| S-1110HP-SC05 S-1110HP-ST05 |
S-1110HP-SC05-XT S-1110HP-ST05-XT |
1 | 1x 1000Base-SX 850nm, 550m | SC ST |
| S-1110DHP-SC05-XT S-1110DHP-ST05-XT |
S-1110DHP-SC05-XT S-1110DHP-ST05-XT |
2 | 1x 1000Base-SX 850nm, 550m | SC ST |
| S-1110HP-SC2 S-1110HP-ST2 |
- | 1 | 1x 1000Base-LX 1310nm, 2 Km | SC ST |
| S-1110DHP-SC2 S-1110DHP-ST2 |
- | 2 | 1x 1000Base-LX 1310nm, 2 Km | SC ST |
| Monomodo | ||||
| S-1110HP-ST10 S-1110HP-SC10 |
S-1110HP-ST10-XT S-1110HP-SC10-XT |
1 | 1x 1000Base-LX 1310nm, 10 Km | ST SC |
| S-1110DHP-ST10 S-1110DHP-SC10 |
S-1110DHP-ST10-XT S-1110DHP-SC10-XT |
2 | 1x 1000Base-LX 1310nm, 10 Km | ST SC |
| S-1110HP-SC40 S-1110HP-ST40 |
- | 1 | 1x 1000Base-EX 1310nm, 40 Km | SC ST |
| S-1110DHP-SC40 S-1110DHP-ST40 |
- | 2 | 1x 1000Base-EX 1310nm, 40 Km | SC ST |
| S-1110HP-SC70 S-1110HP-ST70 |
- | 1 | 1x 1000Base-ZX 1550nm, 70 Km | SC ST |
| S-1110DHP-SC70 S-1110DHP-ST70 |
- | 2 | 1x 1000Base-ZX 1550nm, 70 Km | SC ST |
| S-1110HP-SC120 S-1110HP-ST120 |
- | 1 | 1x 1000Base-ZX 1550nm, 120 Km | SC ST |
| S-1110DHP-SC120 S-1110DHP-ST120 |
- | 2 | 1x 1000Base-ZX 1550nm, 120 Km | SC ST |
| S-1110HP-SC160 S-1110HP-ST160 |
- | 1 | 1x 1000Base-ZX 1550nm, 160 Km | SC ST |
| S-1110DHP-SC160 S-1110DHP-ST160 |
- | 2 | 1x 1000Base-ZX 1550nm, 160 Km | SC ST |
Power over Ethernet IEEE 802.3 af/at/bt hasta 100W - Bidireccionales Single Fiber
| Modelos Temp. standard | Modelos Temp. Industrial | PSE | Descripción | Con. |
|---|---|---|---|---|
| Monomodo BIDIreccional | ||||
| S-1110HP-SC10U S-1110HP-SC10D |
S-1110HP-SC10U-XT S-1110HP-SC10D-XT |
1 | 1310nmTX/1490nmRX, 10 km 1490nmTX/1310nmRX, 10 km |
SC |
| S-1110DHP-S1SC10U S-1110DHP-S1SC10D |
S-1110DHP-SC10U-XT S-1110DHP-SC10D-XT |
2 | 1310nmTX/1490nmRX, 10 km 1490nmTX/1310nmRX, 10 km |
SC |
| S-1110HP-SC20U S-1110HP-SC20D |
- | 1 | 1310nmTX/1490nmRX, 20 km 1490nmTX/1310nmRX, 20 km |
SC |
| S-1110DHP-SC20U S-1110DHP-SC20D |
- | 2 | 1310nmTX/1490nmRX, 20 km 1490nmTX/1310nmRX, 20 km |
SC |
| S-1110HP-SC40U S-1110HP-SC40D |
- | 1 | 1310nmTX/1490nmRX, 40 km 1490nmTX/1310nmRX, 40 km |
SC |
| S-1110DHP-SC40U S-1110DHP-SC40D |
- | 2 | 1310nmTX/1490nmRX, 40 km 1490nmTX/1310nmRX, 40 km |
SC |
| S-1110HP-SC80U S-1110HP-SC80D |
- | 1 | 1510nmTX/1590nmRX, 80 km 1590nmTX/1510nmRX, 80 km |
SC |
| S-1110DHP-SC80U S-1110DHP-SC80D |
- | 2 | 1510nmTX/1590nmRX, 80 km 1590nmTX/1510nmRX, 80 km |
SC |
| S-1110HP-SC120U S-1110HP-SC120D |
- | 1 | 1510nmTX/1590nmRX, 120 km 1590nmTX/1510nmRX, 120 km |
SC |
| S-1110DHP-SC120U S-1110DHP-SC120D |
- | 2 | 1510nmTX/1590nmRX, 120 km 1590nmTX/1510nmRX, 120 km |
SC |
