Módulos SFP 1G
Módulos ópticos SFP compatibles con MSA. Amplio catálogo de módulos compatibles con sistemas de fabricantes como CISCO, HP, JUNIPER, ALCATEL LUCENT, HUAWEI, AVAYA, BROCADE, etc. Componentes ópticos de alta calidad y rendimiento, hasta 4 Gbps con diagnóstico integrado (DDM).
Transceivers Duplex, Simplex BIDIreccionales, CWDM y DWDM.
Optical Transceivers
Enterprise & Industrial Grades
Secure Operation
Módulos Ópticos ORing Industrial
- Temperatura de servicio: 0ºC a 70ºC
- DDM - Digital Diagnostics Monitoring
Protocolos: Ethernet
SFP Duplex - 1Gbps
Transceivers Gigabit Ethernet
| Fibra | L. d' Onda | Referencia | Distancia |
|---|---|---|---|
| Multi Modo | 850nm | SFP1G-SX | 550 m |
| SFP1G-SX-DDM | |||
| 1310nm | SFP1G-MLX | 2 Km | |
| SFP1G-MLX-DDM | |||
| Mono Modo | 1310nm | SFP1G-LX10 | 10 Km |
| SFP1G-LX10-DDM | |||
| SFP1G-LX20 | 20 km | ||
| SFP1G-LX20-DDM | |||
| SFP1G-LHX30 | 30 Km | ||
| SFP1G-LHX40 | 40 Km | ||
| 1550nm | SFP1G-XD50 | 50 Km | |
| SFP1G-ZX70 | 70 Km | ||
| SFP1G-ZX70-DDM | |||
| SFP1G-ZX-80 | 80 Km | ||
| SFP1G-ZX-120 | 120 Km |
SFP Simplex BIDI - 1Gbps
Transceivers Gigabit Ethernet bidirezionali, single fiber
| Fibra | L. d' Onda | Referencia | Distancia |
|---|---|---|---|
| Mono Modo | 1310nmTX/1550nmRX | SFP1GB3-LX10 | 10 Km |
| SFP1GB3-LX20 | 20 Km | ||
| SFP1GB3-LX40 | 40 Km | ||
| SFP1GB3-LX60 | 60 Km | ||
| 1550nmTX/1310nmRX | SFP1GB5-LX10 | 10 Km | |
| SFP1GB5-LX20 | 20 Km | ||
| SFP1GB5-LX40 | 40 km | ||
| SFP1GB5-LX60 | 60 Km | ||
| 1490nmTX/1550nmRX | SFP1GB4-LX80 | 80 km | |
| 1150nmTX/1490nmRX | SFP1GB5-LX-80 |
SFP de cobre - 1000Mbps / 2,5Gbps / 10Gbps
- Industrial Grade
- Temperatura de servicio: -40ºC a 85ºC
- Conector: RJ45
| Referencia | Descripción |
|---|---|
| SFP100-RJ-I | Ethernet 10M/100M |
| SFP1G-RJ-I | Ethernet 1000BaseT |
| SFP2G5RJ-I | Ethernet 10M/100M/1G/2,5Gbps |
| SFP10G-RJ-I | Ethernet 10G BaseT |

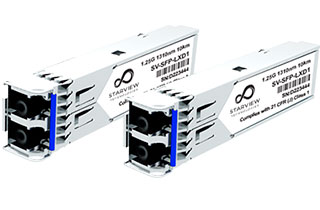

Módulos Ópticos Starview - Compatibles con sistemas de cualquier productor
- 1Gbps / 2,5Gbps / 4Gbps / 10Gbps
- Compatible con los principales fabricantes (Coding)
- Temperatura de servicio: 0ºC a 70ºC
- DDM - Digital Diagnostics Monitoring
Protocolos: Ethernet, Fiber channel, ATM/SONET, SDH
SFP Duplex - 1Gbps
| Fibra | Aplicación | L. de Onda (nm) | Referencia | Distancia (Km) | |
|---|---|---|---|---|---|
1,25 Gbps
|
Multi Modo | 1000BaseSX / 1G Fiber Channel | 850 | SV-SFP-SXD | 0,55 |
| 1300 | SV-SFP-ESXD | 2 | |||
| Mono Modo | 1000BaseLX / 1G Fiber Channel | 1310 | SV-SFP-LXD1 | 10 | |
| SV-SFP-LXD2 | 20 | ||||
| 1000BaseEX / 1G Fiber Channel | SV-SFP-LXD4 | 40 | |||
| 1000BaseZX / 1G Fiber Channel | 1550 | SV-SFP-ZXD6 | 60 | ||
| SV-SFP-ZXD8 | 80 | ||||
| SV-SFP-ZXD12 | 120 | ||||
| SV-SFP-ZXD16 | 160 |
SFP Simplex BIDI - 1Gbps
| Fibra | Aplicación | L. de Onda (nm) | Referencia | Distancia | |
|---|---|---|---|---|---|
|
Multi Modo | 1000BaseBX | 1310TX / 1550RX | SV-SFP-ESXD1 | 2 Km |
| 1550TX / 1310RX | SV-SFP-ESXD2 | ||||
| Mono Modo | 1000BaseBX | 1310TX / 1550RX | SV-SFP-LXD11 | 10 Km | |
| 1550TX / 1310RX | SV-SFP-LXD12 | ||||
| 1310TX / 1490RX | SV-SFP-LXD13 | ||||
| 1490TX / 1310RX | SV-SFP-LXD14 | ||||
| 1310TX / 1550RX | SV-SFP-LXD21 | 20 Km | |||
| 1550TX / 1310RX | SV-SFP-LXD22 | ||||
| 1310TX / 1490RX | SV-SFP-LXD23 | ||||
| 1490TX / 1310RX | SV-SFP-LXD24 | ||||
| 1310TX / 1550RX | SV-SFP-LXD41 | 40 Km | |||
| 1550TX / 1310RX | SV-SFP-LXD42 | ||||
| 1310TX /1490RX | SV-SFP-LXD43 | ||||
| 1490TX / 1310RX | SV-SFP-LXD44 | ||||
| 1310TX / 1550RX | SV-SFP-LXD61 | 60 Km | |||
| 1550TX / 1310RX | SV-SFP-LXD62 | ||||
| 1550TX / 1490RX | SV-SFP-LXD85 | 80 Km | |||
| SV-SFP-LXD125 | 120 Km | ||||
| 1490 TX / 1550 RX | SV-SFP-LXD86 | 80 Km | |||
| SV-SFP-LXD126 | 120 Km |
SFP Duplex - 2,5Gbps
| Fibra | Aplicación | L. d' Onda (nm) | Código | Distancia (Km) | |
|---|---|---|---|---|---|
Multi rate 2,125 - 2,7 Gbps
|
Multi Modo | OC48 / STM16 / FC2 | 850 | SV-SFP-2GSXDH | 0,3 |
| Mono Modo | OC48 / STM16 / FC2 |
1310 | SV-SFP-2GLXDH | 2 | |
| SV-SFP-2GLXD1H | 10 | ||||
| SV-SFP-2GLXD2H | 20 | ||||
| SV-SFP-2GLXD4H | 40 | ||||
| 1550 | SV-SFP-2GZXD4H | 40 | |||
| SV-SFP-2GZXD8H | 80 |
SFP Duplex - 4Gbps
| Fibra | Aplicación | L. d' Onda (nm) | Código | Distancia (Km) | |
|---|---|---|---|---|---|
Multi rate 125 Mbps - 4,25 Gbps
|
Multi Modo | Ethernet / STM / OC / FC | 850 | SV-SFP-4GSXD | 0,3 |
| Mono Modo | Ethernet / STM / OC / FC | 1310 | SV-SFP-4GLXD | 2 | |
| SV-SFP-4GLXD1 | 10 | ||||
| SV-SFP-4GLXD2 | 20 | ||||
| SV-SFP-4GLXD4 | 40 |
Módulos Ópticos para sistemas del fabricante Perle
- Compatibles CISCO
- Temperatura de servicio: 0ºC a 70ºC
- DDM - Digital Diagnostics Monitoring
- Conectores LC
Protocolos: Ethernet, Fiber channel, ATM/SONET, SDH
SFP 1Gbps Duplex
Gigabit Ethernet, Fiber Channel 1, FICON
| Fibra | L. de Onda | Referencia | Distancia | Equivalentes CISCO |
|---|---|---|---|---|
| Multi Modo | 850nm | PSFP-1000D-M2LC05 | 550 m | SFP-GE-S |
| 850nm | PSFP-1000-M2LC05 | 550 m | GLC-SX-MM | |
| 1310nm | PSFP-1000D-M2LC2 | 2 Km | - | |
| Mono Modo | 1310nm | PSFP-1000D-S2LC10 | 10 Km | SFP-GE-L |
| 1310nm | PSFP-1000-S2LC10 | 10 Km | GLC-LH-SM | |
| 1310nm | PSFP-1000D-S2LC20 | 20 Km | - | |
| 1310nm | PSFP-1000D-S2LC40 | 40 Km | SFP-GE-L-40 | |
| 1550nm | PSFP-1000D-S2LC80 | 80 Km | SFP-GE-Z |
SFP 1Gbps Simplex BIDI
Gigabit Ethernet, Fiber Channel 1, FICON, SONET OC-24
| Fibra | L. de Onda | Referencia | Distancia | Equivalentes CISCO |
|---|---|---|---|---|
| Multi Modo | 1310nmTX/1550nmRX | PSFP-1000D-M1LC2U | 2 Km | - |
| 1550nmTX/1310nmRX | PSFP-1000D-M1LC2D | 2 km | - | |
| Mono Modo | 1310nmTX/1490nmRX | PSFP-1000-S1LC10U | 10 Km | GLC-BX-U |
| 1490nmTX/1310nmRX | PSFP-1000-S1LC10D | 10 Km | GLC-BX-D | |
| 1310nmTX/1490nmRX | PSFP-1000D-S1LC40U | 40 Km | GLC-BX-U-40 | |
| 1490nmTX/1310nmRX | PSFP-1000D-S1LC40D | 40 Km | GLC-BX-D-40 | |
| 1490nmTX/1550nmRX | PSFP-1000D-S1LC60U | 60 Km | GLC-BX-U-60 | |
| 1550nmTX/1490nmRX | PSFP-1000D-S1LC60D | 60 km | GLC-BX-D-60 | |
| 1490nmTX/1550nmRX | PSFP-1000D-S1LC80U | 80 Km | GLC-BX-U-80 | |
| 1550nmTX/1490nmRX | PSFP-1000D-S1LC80D | 80 km | GLC-BX-D-80 |
