Gateway de Protocolos

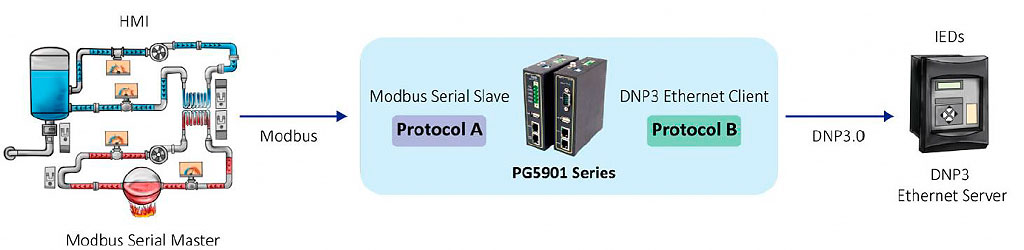

Los gateways de protocolo industriales son dispositivos esenciales en la automatización moderna, ya que permiten la comunicación entre equipos, sistemas y redes que utilizan diferentes protocolos industriales. En entornos productivos donde conviven tecnologías de distintas generaciones y fabricantes, estos dispositivos actúan como “traductores” que garantizan la interoperabilidad y el flujo continuo de información.
Conversión de protocolos serie o Ethernet. Diseñado para entornos exigentes en subestaciones eléctricas, centrales eléctricas, la industria del petróleo y el gas, la manufactura, etc.
Heavy Industry
Conversión de protocolos Serie. Modbus TCP/RTU/ASCII, DNP3.0 TCP o seriale, IEC 60870-5-101, IEC 60870-5-103, IEC 60870-5-104, IEC 61850.
Protocol conversion Modbus TCP/RTU/ASCII, DNP3.0 TCP or serial, IEC 60870-5-101, IEC 60870-5-103, IEC 60870-5-104, IEC 61850
- Dual 10/100 Mbps Ethernet port, Optional 802.3af PoE PD capable
- 1-port RS-232/422/485, baud rate up to 921.6 Kbps
- Embedded IPsec, PPTP and OpenVPN for enhanced security
- Strong EMC protection, works in environments from -40 to 85°C
- IP30 Metal housing with Aluminum heat sink
Protocol conversion Modbus TCP/RTU/ASCII, DNP3.0 TCP or serial, IEC 60870-5-101, IEC 60870-5-103, IEC 60870-5-104, IEC 61850
- Dual 10/100 Mbps Ethernet port, Optional 802.3af PoE PD capable or 100/1000 Mbps SFP Slot
- 4-port RS-232/422/485, baud rate up to 921.6 Kbps, D-Sub9 or Terminal Block, Optional 3kV Serial Isolation
- Embedded IPsec, PPTP and OpenVPN for enhanced security
- Strong EMC protection, works in environments from -40 to 85°C
- IP30 Metal housing with Aluminum heat sink
- Redundant DC power input, one Relay Output
Seamless conversion between different Ethernet based protocols. Compliant with IEC 61850-3 and IEEE 1613 Power Substation Standards
- 6 x 10/100Mbps RJ45 or SFP Ethernet ports, Embedded IPsec VPN for enhanced security
- Same hardware platform for different protocol conversion (Modbus TCP, DNP3.0 over Ethernet, IEC 60870-5-104, IEC 61850)
- Embedded PPTP, IPsec and OpenVPN client/server for enhanced security
- Redundant power inputs with 24-48 VDC ,100-240 VAC, 100-370 VDC variations, two relay outputs
- Rackmount. Temperature range: -40ºC a 80ºC
Conversion between different Ethernet or Serial based protocols. Compliant with IEC 61850-3 and IEEE 1613 Power Substation Standards
- 6 x 10/100Mbps RJ45 or SFP Ethernet ports, Embedded IPsec VPN for enhanced security
- 8 port RS-232/422/485, D-Sub9 or TB5 connector, Optional isolation
- Same hardware platform for different protocol conversion (ModbusTCP/RTU/ASCII, DNP3.0 TCP or serial, IEC 60870-5-101, IEC 60870-5-103, IEC 60870-5-104, IEC 61850)
- Embedded PPTP, IPsec and OpenVPN client/server for enhanced security
- Redundant power inputs with 24-48 VDC ,100-240 VAC, 100-370 VDC variations, two relay outputs
- Rackmount. Temperature range: -40ºC a 80ºC
Smart Grid Protocol Converter. Conversion between different Ethernet or Serial based protocols. Compliant with IEC 61850-3 and IEEE 1613 Power Substation Standards
- 6 x 10/100Mbps RJ45 or SFP Ethernet ports, Embedded IPsec VPN for enhanced security
- 16 port RS-232/422/485, D-Sub9 or TB5 connector, Optional isolation
- Same hardware platform for different protocol conversion (ModbusTCP/RTU/ASCII, DNP3.0 TCP or serial, IEC 60870-5-101, IEC 60870-5-103, IEC 60870-5-104, IEC 61850)
- Embedded PPTP, IPsec and OpenVPN client/server for enhanced security
- Redundant power inputs with 24-48 VDC ,100-240 VAC, 100-370 VDC variations, two relay outputs
- Rackmount. Temperature range: -40ºC a 80ºC
Industrial M2M Cellular Protocol Gateway
Acceso a redes móviles 4G de dispositivos seriales RS232/422/485.
- DIN Rail Mounting
- Rango Extendido de Temperaturas
- Comunicaciones seguras: SSL VPN - IPsec VPN
