IRG5410

Enterprise-Class Edge Cellular Routers & Gateways

Overview
Most comprehensive set of features, functionality, and performance to provide primary or failover back-up connectivity to remote infrastructure and assets. These ultra-low-power, rugged, high-performance Cellular Routers, with dual-SIM slots. IRG5410 Router comes with an intuitive web GUI and CLI interface.

IRG5410 Routers provide fast, secure, and reliable managed LTE network connectivity where wired options are impossible to deploy or require a backup. This is crucial for enabling a wide range of applications while ensuring the highest degree of security to protect the integrity of critical services. Reduce the cost of downtime and service calls, and bringing distributed sites online faster. With support for Data, SMS, Voice, and Video, an IRG5410 and can be integrated into any enterprise cloud, building, industrial, or mobile location network infrastructure.

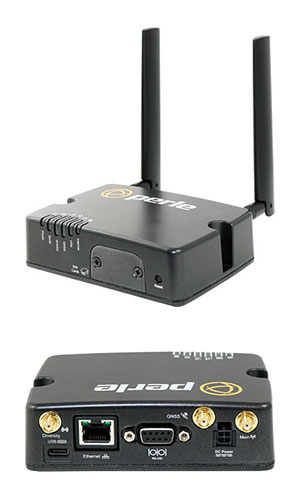

irg5410

Features

  • 4G LTE Advanced - Cat6 and Cat12
  • Dual-SIM LTE Failover for true Business Continuity
  • 1x 10/100/1000BaseT(X) ports
  • 1 x USB 3.2 Type-C with a transfer rate up to 5Gbps. Console Port or Ethernet over USB
  • 1 x RS232 DB9 female connector. Industrial Protocols Encapsulations: ModBus, DNP3 and IEC-870-5-101, ModBus TCP Gateway
  • VLAN, IPSec, OpenVPN, VPN Failover (16 concurrent VPN tunnels)
  • SSH client/server connections (SSH 1 and SSH 2), SSL/TLS client/server data encryption (TLSv1/1.1/1.2 and SSLv2),  Dyn DNS, 2F Authentication, Access Control, SNMPv3, DMZ
  • RIP, RIPv2, RIPng, OSPFv1/2/3, BGP-4, NAT, VRRP, STP, MSTP, LLDP, PPPoE
  • OCI Container - Docker based implementation. Supports public and private container registries
  • Sys Log, Event Type, Report Type, Alerts & Monitoring, Triggers Status Screen Report, Data Usage, Diagnostic
  • One GPIO Input, Ignition Sense
  • GPS / Global Navigation Satellite System (GNSS) Included
  • Rugged, Die Cast Alluminum, Compact, Industrial-grade form factor (IP54)
  • EN 50155, E-Mark, IECEx/IECx, ATEX/Ex Class 1 Zone 2 certified
  • IEC60571 & IEC62236
atexatexEN50155
IRG5410
  • 1x LTE-A Cat6 - 300Mbps Down/ 50Mbps Up
  • Dual Mini-SIM (2FF)
  • 1 x Ethernet 10/100/1000TX (RJ45)
  • 1x RS232 (DB9F) - 300bps to 230Kbps
  • 1 x USB 3.2 Type-C Console Port or Ethernet over USB
  • 1 x GPIO input - Digital Input & Pulse Counting VDC: 0 for ≤ 1V, 1 for ≥ 2.7V
  • 1 x Ignition Sense - Analog Input: 0.5V to 36V
  • GPS / GNSS

Frequency Bands

4G/LTE Bands (15) -2100(B1), 1900(B2), 1800(B3), AWS(B4), 850(B5), 2600(B7), 900(B8), 700(B12), 700(B13), 800(B20), 1900(B25), 850(B26), 700(B29), 2300(B30), TDD B41
3G HSPA/HSPA+ Bands (6) -2100(B1), 1900(B2), 1800(B3), AWS(B4), 850(B5), 900(B8)
Public Safety Band - Band 26
IRG5410+
  • 1x LTE-A Cat12 - 600Mbps Down / 150Mbps Up
  • Dual Mini-SIM (2FF)
  • 1 x Ethernet 10/100/1000TX (RJ45)
  • 1x RS232 (DB9F) - 300bps to 230Kbps
  • 1 x USB 3.2 Type-C Console Port or Ethernet over USB
  • 1 x GPIO input - Digital Input & Pulse Counting VDC: 0 for ≤ 1V, 1 for ≥ 2.7V
  • 1 x Ignition Sense - Analog Input: 0.5V to 36V
  • GPS / GNSS

Frequency Bands

4G/LTE Bands (24) - 2100(B1), 1900(B2), 1800(B3), AWS(B4), 850(B5), 2600(B7), 900(B8),1800(B9), 700(B12), 700(B13), 850(B18), 850(B19), 800(B20), 850(B26), 700(B28), 700(B29), 2300(B30), 1500(B32), TDD B41, TDD B42, TDD B43, TDD B46, CBRS B48, 1700(B66)
3G HSPA/HSPA+ Bands (9) - 2100(B1), 1900(B2), 1800(B3), AWS(B4), 850(B5), 800(B6), 900(B8), 1700(B9), 850(B19)
Public Safety Bands - Band 26, 28
Power

- Input Power: DC input. 12-24VDC on terminal block 4pin Molex
- Power Consumption (Typ.) 3,3 Watts

Environmental

Operating Temperature -40 to 70°C (-40 to 158°F)
Operating Humidity 5% to 95% Non-condensing

Physical Characteristics

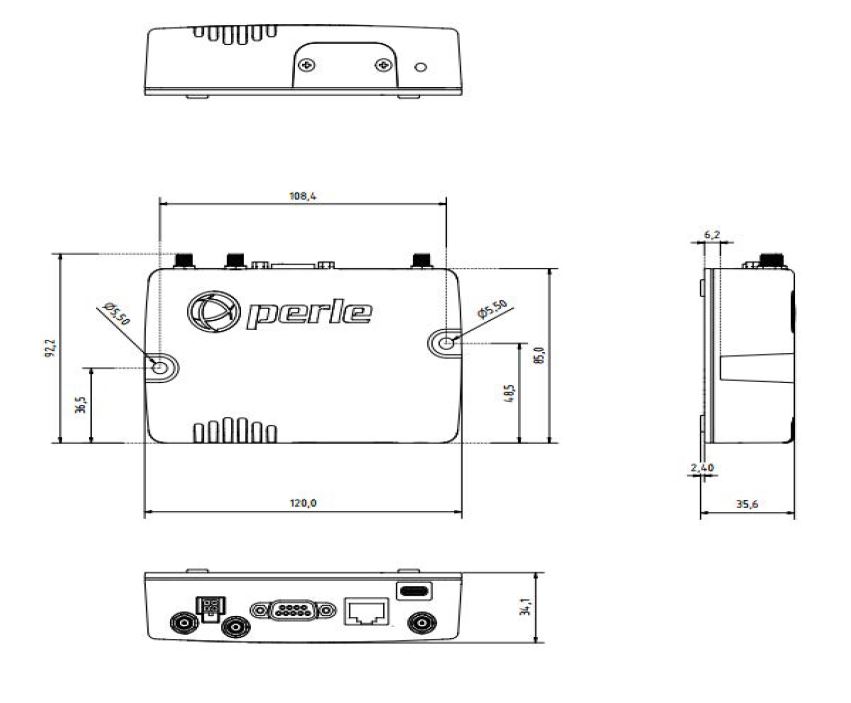

Dimensions (mm): 120 x 85 x 34 mm
Enclosure: Die Cast Aluminium - IP54
Warranty 2 years

Accessories
  • UNIV DIN Rail Router Mount
  • GNSS PASV Antenna SMA/CAl
  • Power Adapter 12VDC/2A power supply
  • GPIO Cable w/4 pin plug

  • Shock & Vibration

    SAE J1455 (Vibration: Section 4.10.4.1 and 4.10.4.2 Cab Mount, Shock: Section 4.11.3.4 Operational Shock)
    MIL-STD-810G (Shock: test method 516.6. Operational Vibration: test method 514.6)
    EN 61373 (Shock, Vibration long-life / functional-random)

  • Hazloc

    IECEx/IECx, ATEX/Ex Class 1 Zone 2, Directive 2014/34/EU
    ANSI/ISA 12.12.01, Class 1 Division 2 Groups A-D, ISA 12.12.01-2015

  • Vehicle Usage

    E-Mark (UN ECE Regulation 10.04, ISO 7637-2:2011 and ISO 16750-2:2012 )

  • Velocity

    Cellular tower connectivity can be established and maintained at up to 100 meters per second (360km per hour)

  • Railway

    • EN 50155: 2017 Clause 4.3.6
    • EN 50121-1: 2017
    • EN 50121-3-2: 2016
    • EN 50121-4: 2016
    • IEC 60571:2012 For Clause 12.2.8 & 12.2.9
    • IEC 62236-1: 2018
    • IEC 62236-3-2: 2008
    • IEC 62236-4: 2018

  • Emissions

    • FCC 47 Part 15 Subpart B, Class B
    • ICES-003 Issue 6 Class B (Canada)
    • FCC Part 15.247 Subpart C ( 2.4 Ghz)
    • FCC Part 15.407 Subpart E ( 5 Ghz)
    • ANSI C63.4 Class B (Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz)
    • EN61000-3-2: 2014 (Limits for Harmonic Current Emissions)
    • EN61000-3-3: 2013 (Limits of Voltage Fluctuations and Flicker)
    • CISPR 32:2015/EN 55032:2015 Class B (Electromagnetic compatibility of multimedia equipment - Emission requirements)

  • Immunity

    • CISPR 25:2016/EN55025: (Vehicles, boats and internal combustion engines - RDC)
    • CISPR 35:2016/EN 55035:2017 (IR)EN 61000-4-2:2009 (ESD)
      +/-2 kV, +/-4 kV, +/-6 kV, +/-8 kV (Contact)
      +/-15 kV (Air)
      Operating mode: powered on
    • EN 61000-4-3: 2006 + A1:2007 + A2:2010(RS)
    • EN 61000-4-4:2012 (EFT) 2 KV (Criteria A)
    • EN 61000-4-5:2014+AMD1:2017 (Surge) 2KV (line to earth), 1.5KV (line to line)
    • EN 61000-4-6: 2013 (CS)
    • EN 61000-4-8: 2009 (PFMF)
    • EN 61000-4-9: 2016 (PMF)
    • EN 61000-4-11: 2004 + A1:2017
    • EN 61000-4-16
    • EN 61000-6-4: 2007 + A1: 2011
    • ISO 7637-2:2004

  • Safety

    • UL/IEC 61010-1
    • UL/IEC 61010-2
    • UL/EN/IEC 62368-1 (previously 60950-1)
    • CAN/CSA C22.2 No. 62368-1

  • Cellular / WWAN Radio Standards

    • EN 300 328 (V2.1.1:2019), ETSI EN 300 328 V2.1.1 (2016-11) (Electromagnetic compatibility)
    • EN 301 893 (V1.8.1:2015), ETSI EN 301 893 V2.1.1 (2017-05) (Radiated spurious emissions)
    • EN 301 489-1 (V2.1.1:2017-02), ETSI EN 301 489-1 V2.1.1 (2017-02)
    • EN 301 489-17 (V3.2.0:2017-03), ETSI EN 301 489-17 V3.1.1 (2017-02)
    • EN 301 908-1 v11.1.7:2018-12, ETSI EN 301 908-1 V7.1.1 (2015-03) (Radiated emissions RF control and monitoring)
    • EN 301 908-13 v11.1.2:2017-07, ETSI EN 301 908-13 V11.1.2 (2017-07) (RF Conducted)
    • EN 62311:2019, IEC 62311 Ed. 1.0 b:2007 (Human exposure restrictions for radio frequency electromagnetic fields)

  • Environmental Specifications

    Reach, RoHS3, and WEEE Compliant
