IRG7440

Enterprise-Class Edge Cellular 5G Router & Gateway

Overview
Most comprehensive set of features, functionality, and performance to provide primary or failover back-up connectivity to remote infrastructure and assets. These ultra-low-power, rugged, high-performance Cellular Routers can be easily deployed using an intuitive web GUI. For advanced admin scripts, RESTFul API and CLI are also available.

IRG7000 Routers provide fast, secure, and reliable managed 5G network connectivity where wired options are impossible to deploy or require a backup. This is crucial for enabling a wide range of applications while ensuring the highest degree of security to protect the integrity of critical services. Reduce the cost of downtime and service calls, and bringing distributed sites online faster. With support for Data, SMS, Voice, and Video, an IRG7440 and can be integrated into any enterprise cloud, building, industrial, or mobile location network infrastructure.

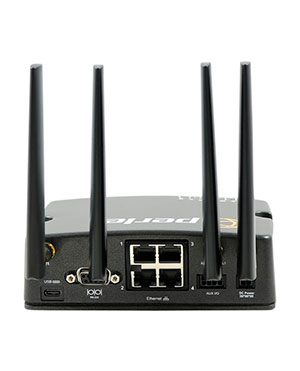

irg7000

Features

  • 5G Router for Primary or Failover Connectivity
  • 4.5Gbps downlink and 660Mbps uplink speeds
  • 4x 10/100/1000BaseT(X) ports
  • 1 x USB 3.2 Type-C with a transfer rate up to 5Gbps. Console Port or Ethernet over USB
  • 1 x RS232 (DB9F) + 1 RS485 Half Duplex
  • VLAN, IPSec, OpenVPN, VPN Failover (16 concurrent VPN tunnels)
  • SSH client/server connections (SSH 1 and SSH 2), SSL/TLS client/server data encryption (TLSv1/1.1/1.2 and SSLv2),  Dyn DNS, 2F Authentication, Access Control, SNMPv3, DMZ
  • RIP, RIPv2, RIPng, OSPFv1/2/3, BGP-4, NAT, VRRP, STP, MSTP, LLDP, PPPoE
  • OCI Container - Docker based implementation. Supports public and private container registries
  • Sys Log, Event Type, Report Type, Alerts & Monitoring, Triggers Status Screen Report, Data Usage, Diagnostic
  • One GPIO Input, Ignition Sense
  • GPS / Global Navigation Satellite System (GNSS) Included
  • Rugged, Die Cast Alluminum, Compact, Industrial-grade form factor (IP54)
iot edge
crn-edge
security today
govies
iot award
taa


IRG7440 Specifications

  • 1x 5G NR - 4,5Gbps dowlink / 660Mbps uplink
  • 4G/LTE (Cat-20), 3G fallback
  • Mini-SIM (2FF)
  • 4 x Ethernet 10/100/1000TX (RJ45)
  • 1x RS232 (DB9F) - 300bps to 230Kbps
  • 1x RS485 Half Duplex
  • 1 x USB 3.2 Type-C Console Port or Ethernet over USB
  • 1 x GPIO input - Digital Input & Pulse Counting VDC: 0 for ≤ 1V, 1 for ≥ 2.7V
  • 1 x Ignition Sense - Analog Input: 0.5V to 36V
  • GPS / GNSS

  • Frequency Bands

    5G Sub-6 GHz: n1, n2, n3, n5, n28, n41, n66, n71, n77, n78, n79

    4G LTE: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B18, B19, B20, B21, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71

    3G HSPA/HSPA+ Bands: B1, B2, B3, B4, B5, B6, B8, B9, B19

    Data & SMS Operation over 5G with fallback networks 4G/LTE, 3G HSPA+ / HSPA+ / HSPA / UMTS (WCDMA)

  • Power

    Input Power: DC input. 12-24VDC on terminal block 4pin Molex
    Power Consumption (Typ.) 6,5 Watts

  • Environmental

    Operating Temperature -40 to 70°C (-40 to 158°F)
    Operating Humidity 5% to 95% Non-condensing

  • Physical Characteristics

    Dimensions (mm): 146 x 99 x 45 mm
    Enclosure: Die Cast Aluminium - IP54
    Warranty 2 years

  • Accessories
    • UNIV DIN Rail Router Mount
    • GNSS PASV Antenna SMA/CAl
    • Power Adapter 12VDC/2A power supply
    • GPIO Cable w/4 pin plug

  • Shock & Vibration

    MIL-STD-810G (Shock: test method 516.6. Operational Vibration: test method 514.6)

  • Cellular/Telecom Regulatory Approvals

    • CE
    • FCC/ICES
    • RED
    • PTCRB/CTIA

  • Emissions

    • FCC 47 Part 15 Subpart B, Class B
    • ICES-003 Issue 6 Class B (Canada)
    • ANSI C63.4 Class B (Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz)
    • EN61000-3-2: 2014 (Limits for Harmonic Current Emissions)
    • EN61000-3-3: 2013 (Limits of Voltage Fluctuations and Flicker)
    • EN 61000-6-4: 2007 + A1: 2011
    • CISPR 32:2015/EN 55032:2015 Class B (Electromagnetic compatibility of multimedia equipment - Emission requirements)

  • Immunity

    • CISPR 35:2016/EN 55035:2017 (IR)
    • EN 61000-4-2:2009 (ESD) +/-2 kV, +/-4 kV, +/-6 kV, +/-8 kV (Contact), +/-15 kV (Air) Operating mode: powered on
    • EN 61000-4-3: 2006 + A1:2007 + A2:2010(RS)
    • EN 61000-4-4:2012 (EFT) 2 KV (Criteria A)
    • EN 61000-4-5:2014+AMD1:2017 (Surge) 2KV (line to earth), 1.5KV (line to line)
    • EN 61000-4-6: 2013 (CS)
    • EN 61000-4-8: 2009 (PFMF)
    • EN 61000-4-9: 2016 (PMF)
    • EN 61000-4-11: 2004 + A1:2017
    • EN 61000-4-16
    • EN 61000-6-2 (General Immunity for Industrial Environments)

  • Safety

    • CE Mark
    • UL/EN/IEC 62368-1 (including CB)
    • CAN/CSA C22.2 No. 62368-1

  • Cellular / WWAN Radio Standards

    • EN 301 489-1:2019 Ed2.2.3
    • EN 301 908-25 (Imt Cellular Network: Essential requirements)
    • EN 62311:2020 (Human exposure restrictions for radio frequency electromagnetic fields)

  • Environmental Specifications

    Reach, RoHS3, and WEEE Compliant

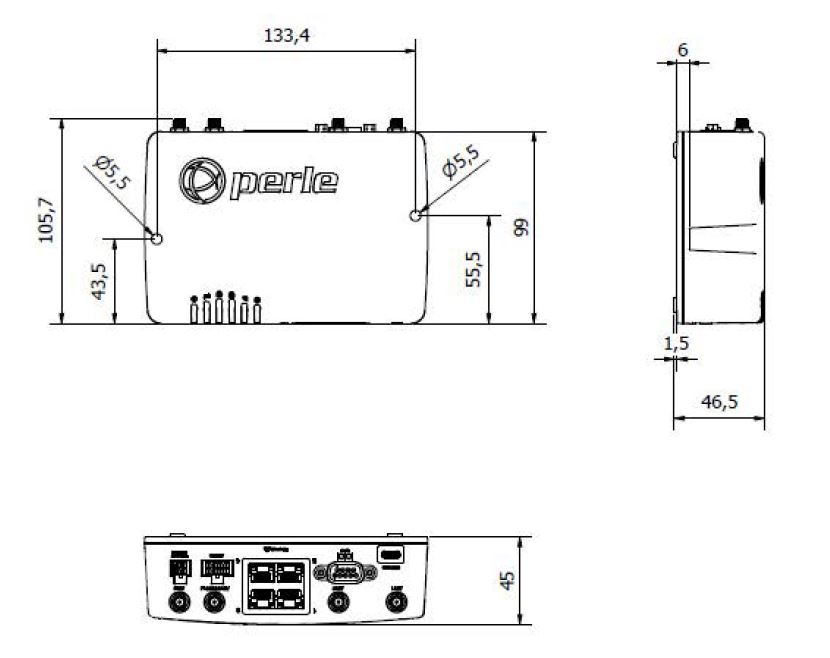

IRG7440 Mechanical
