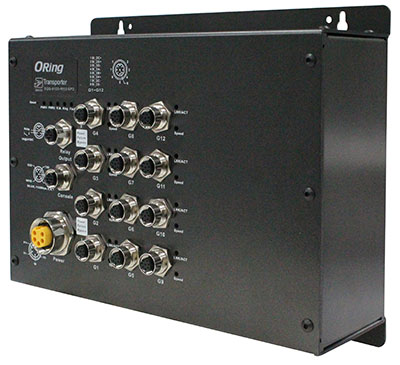

TGS-9120-M12-BP2

EN50155 Managed Ethernet Switch with 12GE (2-pair Bypass), M12 connector, 24VDC

Overview

ORing's TransporterTM series managed Ethernet switches are designed for industrial applications, such as rolling stock, vehicle, and railway applications. TGS-9120-M12-BP2 is managed Redundant Ring Ethernet switch with 12x10/100/1000Base-T(X) ports which is specifically designed for the toughest and fully compliant with EN50155 requirement

The switch support Ethernet Redundancy protocol, O-Ring (recovery time < 30ms over 250 units of connection), O-Chain, MRP*note and MSTP/RSTP/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. TGS-9120-M12-BP2 includes 2 sets of bypass ports that protect the network from failures and Network maintenance by ensuring network integrity during power loss. And supports wide operating temperature from -40°C to 75°C. TGS-9120-M12-BP2 can also be managed centralized and conveniently by Open-Vision, Except the Web-based interface, Telnet and console (CLI) configuration.

TGS-9120-M12

Features

  • 24Gbps Switch bandwidth and 7µs latency
  • Support IPV6 new internet protocol version
  • Support O-Ring (recovery time < 30ms) and MSTP(RSTP/STP compatible) for Ethernet Redundancy
  • O-Chain allow multiple redundant network rings. Standard IEC 62439-2 MRP on request
  • Application-based QoS management, IGMP snooping support, Device Binding security, DOS/DDOS auto prevention. MAC based port security
  • Supports IEEE 1588v2 clock synchronization
  • Support Modbus TCP protocols
  • SNMP v1/v2c/v3 support; RMON for traffic monitoring
  • ACL and 802.1x User Authentication for security
  • Event notification through Syslog, Email, SNMP trap
  • Open-Vision support centralized management; configurable by Web, Telnet, Console, CLI
  • IEEE 802.3az Energy-Efficient Ethernet
  • EN50155-compliant Ethernet switch for rolling stock application
  • Rigid IP-30 housing; Wall mounting enabled

TGS-9120-M12-BP2 Specifications

Interfaces

  • 12x 10/100/1000Base-T(X) in M12 (8-pin A-coding, female)
  • 1x RS232 Console Port in M12 connector (5 pin female A-coding)
  • Relay output
Regulatory Approvals

Power

  • Dual DC inputs, 12~48VDC on 5-pin M23 female connector
  • Power Consumption (Typ.) 17,3 Watts
  • Overload Current Protection Present

Environmental

  • Operating Temperature -40 to 75°C (-40 to 167°F)
  • Operating Humidity 5% to 95% Non-condensing

Physical Characteristics

  • Dimensions (mm): 260 (W) x 91.3 (D) x216 (H)
  • Enclosure: metallic - IP30
  • Warranty 5 years

Accessories

  • NDR series, Din Rail Power Supply
  • Open-Vision M500, Network Management Windows
  • DBU-01 Device Configuration Backup Unit
