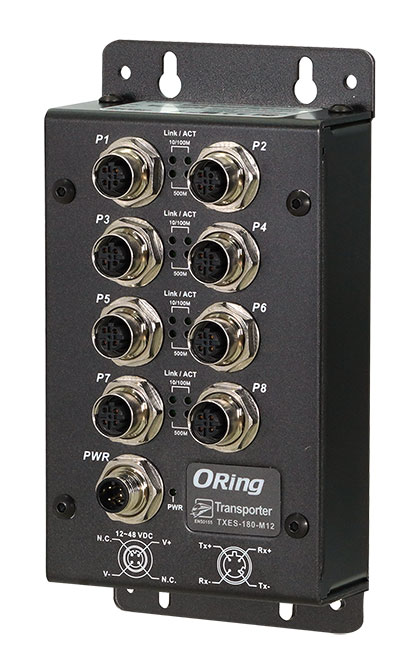

TXES-180-M12
EN50155 Unmanaged Ethernet Switch with 8x 10/100/500Base-T(X), M12 connector, 24VDC
Overview
ORing’s TransporterTM series un-managed Ethernet switches are designed for industrial applications, such as rolling stock, vehicle, and railway applications. The TXES-180-M12 is an un-managed Ethernet switch with 8x10/100/500Base-T(X) which is specifically designed for the toughest and fully compliant with EN50155 requirement. TXES-180-M12 EN50155 Ethernet switch use M12 connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. In addition, the wide operating temperature range from -40ºC to 75ºC can satisfy most of operating environment.
Features
- 8x 10/100/500Base-T(X) ports
- 1,6Gbps Switch bandwidth and 7µs latency
- Supports store and forward transmission
- Supports flow control
- EN50155-compliant Ethernet switch for rolling stock application
- Rigid IP-30 housing
- Wall mounting enabled
Interfaces
- 8 x 10/100/500Base-T(X) ports in M12 connector (4-pin D-coding, female)
Power
- Redundant Input power 24 (12-48) VDC on 4-pin M12 A-coded, male connector
- Power Consumption (Typ.) 1,6 Watts
- Overload Current Protection Present
Environmental
- Operating Temperature -40 to 75°C (-40 to 167°F)
- Operating Humidity 5% to 95% Non-condensing
Physical Characteristics
- Dimensions (mm): 88.9 (W) x 40 (D) x178.2 (H)
- Enclosure: metallic - IP30
- Warranty 5 years
Accessories
- NDR series, Din Rail Power Supply
