IGPS-P9084GP-LA

Industrial IEC 61850 12-port managed Gigabit PoE Ethernet switch with 8x10/100/1000Base-T(X) P.S.E. ports and 4x100/1000Base-X, SFP socket

Overview

IGPS-P9084GP-LA is IEC61850-3 managed PoE Ethernet switch with 8x10/100/1000Base-T(X) P.S.E. ports and 4x100/1000Base-X SFP ports. The switch is designed for power substation application and rolling stock application, fully compliant with the requirement of IEC 61850-3 and IEEE 1613

It supports Ethernet Redundancy protocols such as O-Ring (with a recovery time of < 20ms over 250 units) and MSTP (compatible with RSTP/STP), ensuring reliable protection for mission-critical applications from network interruptions or temporary malfunctions. The switch also features Power over Ethernet (PoE) capabilities, delivering up to 30 watts per port, with a maximum total PoE power budget of 240W. Operating reliably in a wide temperature range from -40°C to 75°C, the IGPS-P9084GP-LA offers centralized management through Open-Vision, accessible via web-based interface, Telnet, and console (CLI) configuration.

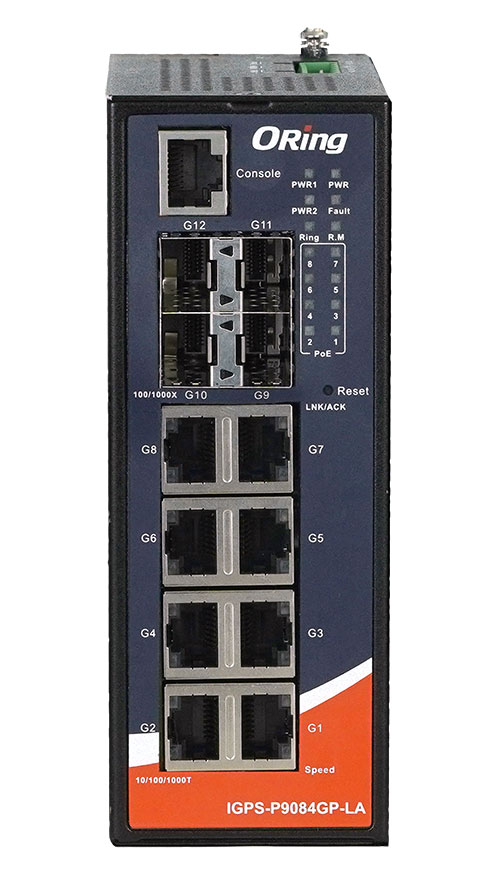

igps-p9084gp-la

Features

  • Designed for Power substation application and fully compliant with the requirement of IEC61850-3/IEEE 1613
  • PoE IEEE802.3af and IEEE802.3at
  • 24Gbps Switch bandwidth and 7µs latency
  • Support IPV6 new internet protocol version
  • Support O-Ring (recovery time < 30ms) and MSTP(RSTP/STP compatible) for Ethernet Redundancy
  • O-Chain allow multiple redundant network rings. Standard IEC 62439-2 MRP on request
  • Application-based QoS management, IGMP snooping support, Device Binding security, DOS/DDOS auto prevention
  • Support EtherNet/IP and Modbus TCP protocols
  • Support IEEE 1588v2 clock syncronization
  • SNMP v1/v2c/v3 support; RMON for traffic monitoring
  • ACL and 802.1x User Authentication for security
  • Event notification through Syslog, Email, SNMP trap
  • Open-Vision support centralized management; configurable by Web, Telnet, Console, CLI
  • IEEE 802.3az Energy-Efficient Ethernet
  • Robust EMS design, provide 8KV ESD and 4KV Surge protection
  • Dual DC inputs
  • Rigid IP-30 housing; DIN-Rail and wall mounting

IGPS-P9084GP-LA Specifications

Interfaces

  • 8x 10/100/1000Base-TX with P.S.E. ports
  • 4x 100/1000 BaseX SFP Ports
  • 1x RS232 Console Port (RJ45)
  • Relay output
Regulatory Approvals

Power

  • Dual DC inputs. 50-57VDC on 6-pin terminal block
  • Power Consumption (Typ.) 13,2 Watts
  • Overload Current Protection Present

PoE

  • PoE power budget: 240W max - 30W/port

Environmental

  • Operating Temperature -40 to 75°C (-40 to 167°F)
  • Operating Humidity 5% to 95% Non-condensing

Physical Characteristics

  • Dimensions (mm): 54,3 (W) x 108,3 (D) x 145,1 (H)
  • Enclosure: metallic - IP30
  • Warranty 5 years

Accessories

  • NDR-240 series, 240W Din Rail Power Supply
  • SFP1G series 1Gbps SFP optical transceiver
  • SFP100 series 100Mbps SFP optical transceiver
  • Open-Vision M500, Network Management Windows
  • DBU-01 Device Configuration Backup Unit
