IGS-P9164GC-HV

IEC 61850-3 Cyber-hardened Managed Ethernet Switch with 16GE + 4G Combo, Dual AC/DC

Overview
The IGS-P9164GC-HV is L2 Managed IEC 61850-3 substation network switch, certified to meet the robust cybersecurity standards of IEC 62443-4-2 to safeguard against potential threats. Specifically designed for power substation applications, these switches fully adhere to the requirements of IEC 61850-3 and IEEE 1613.

It supports 16x 10/100/1000Base-T(X) ports and 4 gigabit combo ports. With completely support of Ethernet Redundancy protocol, O-Ring (recovery time <30ms over 250 units of connection) and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. IGS-P9164GC-HV supports wide operating temperature from -40°C to 85°C and can also be managed remotely and convenient by Open-Vision, Except the web-based interface, Telnet and console (CLI). Therefore, the cyber security switch is one of the most reliable choice for power and utilities applications.

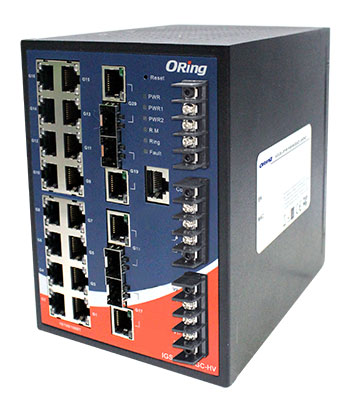

igs-9812

Features

  • 40Gbps Switch bandwidth and 7µs latency
  • Support IPV6 new internet protocol version
  • Support O-Ring (recovery time < 30ms) and MSTP(RSTP/STP compatible) for Ethernet Redundancy
  • O-Chain allow multiple redundant network rings. Standard IEC 62439-2 MRP on request
  • Application-based QoS management, IGMP snooping support, Device Binding security, DOS/DDOS auto prevention
  • Support EtherNet/IP and Modbus TCP protocols
  • Built-in MMS server and IEC 61850 QoS
  • Support IEEE 1588v2 clock Synchronization
  • SNMP v1/v2c/v3 support; RMON for traffic monitoring
  • ACL and 802.1x User Authentication for security
  • Event notification through Syslog, Email, SNMP trap
  • Open-Vision support centralized management; configurable by Web, Telnet, Console, CLI
  • According to IEC 62443-4-1 and certified with the IEC 62443-4-2 industrial cybersecurity standards
  • Fully compliant with the requirement of IEC 61850-3 and IEEE 1613
  • Dual High Voltage inputs
  • Rigid IP-30 housing; DIN-Rail and wall mounting

IGS-P9164GC-HV Specifications

Interfaces

  • 16x 10/100/1000Base-T(X) Ports in RJ45 Auto MDI/MDIX
  • 4x Gigabit Combo Port with 10/100/1000Base-T(X) and 100/1000Base-X SFP
  • 1x RS232 Console Port (RJ45)
  • Relay output
Regulatory Approvals

Power

  • Dual inputs 100-240(85~264) VAC / 125~300(88~300) VDC power inputs at terminal block
  • Power Consumption (Typ.) 18,5 Watts
  • Overload Current Protection Present

Environmental

  • Operating Temperature -40 to 85°C (-40 to 167°F)
  • Operating Humidity 5% to 95% Non-condensing

Physical Characteristics

  • Dimensions (mm): 115 (W) x 159 (D) x 154 (H)
  • Enclosure: metallic - IP30
  • Warranty 5 years

Accessories

  • SFP1G series 1Gbps SFP optical transceiver
  • SFP100 series 100Mbps SFP optical transceiver
  • Open-Vision M500, Network Management Windows
  • DBU-01 Device Configuration Backup Unit
