EMG8608

8-Port EN 50155 Certified Railway IP67 Waterproof Managed Layer-3 Gigabit Switch

Overview

ATOP’s EMG8608 IP67-rated Railway-compliant Ethernet switch is the best solution for providing high-speed Gigabit connectivity in track-side or on-board Railway applications. Its rugged, aluminum enclosure can effectively protect the Switch core in any environment.

The embedded redundant-power supply input provides a reliable and failure-proof safety mechanism to minimize down-times. EMG8608 comes in either redundant Low-Voltage DC power input (12~57 VDC) or in redundant High-Voltage DC power input (50~145 VDC). Each power module, including a Relay-output alarm, uses a S-coding M12 connector that makes EMG8608 ideal and simple for engineers setting up a Fault-Alarm System.

Its IP67 housing protection, combined with a wide operating temperature of -40 to 75°C and wall mounting capacities make it suitable to most Railway applications in harsh environments or industrial field applications.

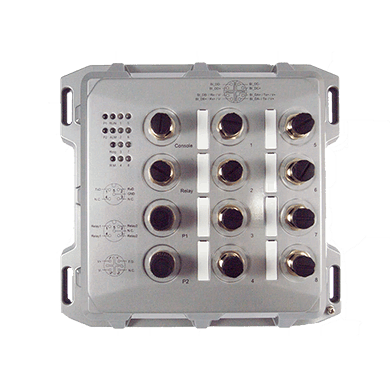

EMG8508

Features

  • 8x 10/100/1000 BASE-T(X) ports, M12 connector
  • Ethernet Redundancy ITU-T G.8032 ERPS, STP, RSTP, MSTP, MRP(Manager/Client), Compatible Ring/Chain, U-Ring
  • Powerful Layer-3 Switching, supporting BGPv4, IPv4 Static, RIPv1/v2 and OSPFv2
  • Supports IEEE 1588 PTP V1/V2, IEEE 1588 Hardware E2E Transparent Clock
  • Automation Profiles: Modbus/TCP status registers
  • SNMP v1/v2c/v3 support; RMON for traffic monitoring
  • ACL and 802.1x User Authentication for security
  • Event notification through Syslog, Email, SNMP trap
  • IEEE 802.3az for Energy Efficient Ethernet
  • Redundant power input, DC or High Voltage DC
  • Security features based on IEC62443-4-2
  • EN50155, EN50121-4, IEC60571 and UL 61010-2-201 certified
  • Rigid IP-67 housing; Wall mount

EMG8608 Specifications

Interfaces

  • 8x 10/100/1000Base-T(X) in M12 (8-pin X-coding)
  • 1x RS232 Console Port in M12 connector (5 pin female A-coding)
  • 2x Relay output
Regulatory Approvals

Power

  • EMG8608 - Dual DC inputs, 12 – 57 VDC on 4-pin M12 (S-coded) connector
  • EMG8608-HV - Dual DC inputs, 50~145VDC on 4-pin M12 (S-coded) connector
  • Power Consumption (Typ.) 13,5 Watts
  • Overload Current Protection Present

Environmental

  • Operating Temperature -40 to 70°C
  • Operating Humidity 5% to 95% Non-condensing

Protocols

IPv4, IPv6, IGMPv1/v2/v3, IGMP Snooping,GARP,GMRP, GVRP, SNMPv1/v2c/v3, SNMP Inform, ICMP, Telnet, SSH, DHCP Server/Relay/Client, DHCP Option 66/67/82, BootP, RARP, TFTP, NTP Server/Client, SNTP, SMTP, SMTP (Gmail), RMON, HTTP, HTTPS, Syslog, MRP (Client), LLDP, IEEE 1588 PTP V1/V2, IEEE 1588 Hardware E2E Transparent Clock, 802.1x, EAP, RADIUS, TACACS+, Mirror port, QoS, ACL, Serial Console, U-Ring, STP, RSTP, MSTP, Redundancy
Compatible Ring, Voice VLAN, sFlow, PoE continue

Layer 3 Protocols

Routing: IPv4 Unicast static routing, RIP v1/v2, OSPFv2, BGPv4
Multicast: IGMPv1/v2/v3, DVMRP, PIM-DM, PIM-SM, PIM-SSM
Routing Redundancy: VRRP (Virtual Router Redundancy Protocol)

Physical Characteristics

  • Dimensions (mm): 216(W) x 232(H) x 72 (D)
  • Enclosure: metallic - IP67 (according to EN60529)
  • Warranty 5 years

Accessories

  • Din Rail Kit
  • NDR series, Din Rail Power Supply
