IES-3082GP

Industrial 10-port managed Ethernet switch with 8x10/100Base-T(X) and 2x100/1000Base-(F)X, SFP socket

Overview
IES-3082GP is managed Redundant Ring Ethernet switch with 8x10/100Base-T(X) and 2x100/1000Base-X SFP ports. With complete support of Ethernet Redundancy protocol, O-Ring (recovery time < 10ms over 250 units of connection), Open-Ring, O-RSTP and MSTP/RSTP/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. IES-3082GP can be managed centralized and convenient by a powerful windows utility — Open-Vision. In addition, the wide operating temperature range from -40°C to 75°C can satisfy most of operating environment.

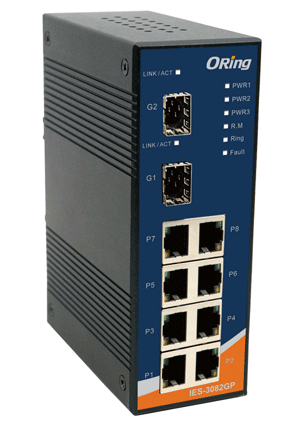

ies-3082gp

Features

  • 5,6 Gbps Switch bandwidth and 7µs latency
  • Support IPV6 new internet protocol version
  • Support O-Ring, O-Chain and IEC 62439-2 MRP for Ethernet redundancy
  • MSTP/RSTP/STP (IEEE 802.1s/w/D)
  • Application-based QoS management, IGMP snooping support, Device Binding security, DOS/DDOS auto prevention
  • Support Modbus TCP
  • Supports SNTP and PTP Client for clock synchronization
  • SNMP v1/v2c/v3 support; RMON for traffic monitoring
  • ACL and 802.1x User Authentication for security
  • Event notification through Syslog, Email, SNMP trap
  • Open-Vision support centralized management; configurable by Web, Telnet, Console, CLI
  • Triple DC inputs
  • Rigid IP-30 housing; DIN-Rail and wall mounting

IES-3082GP Specifications

Interfaces

  • 8x 10/100Base-T(X) ports in RJ45
  • 2x 100/1000BaseX SFP Ports
  • 1x RS232 Console Port (RJ45)
  • Relay output
Regulatory Approvals

Power

  • Triple DC inputs. 12-48VDC on 7-pin terminal block and power jack
  • Power Consumption (Typ.) 8 Watts
  • Overload Current Protection Present

Environmental

  • Operating Temperature -40 to 75°C (-40 to 167°F)
  • Operating Humidity 5% to 95% Non-condensing

Physical Characteristics

  • Dimensions (mm): 54,2 (W) x 107,1 (D) x 145,4 (H)
  • Enclosure: metallic - IP30
  • Warranty 5 years

Accessories

  • NDR-75 series, 75W Din Rail Power Supply
  • SFP1G series 1Gbps SFP optical transceiver
  • SFP100 series 100Mbps SFP optical transceiver
  • Open-Vision M500, Network Management Windows
  • DBU-01 Device Configuration Backup Unit
