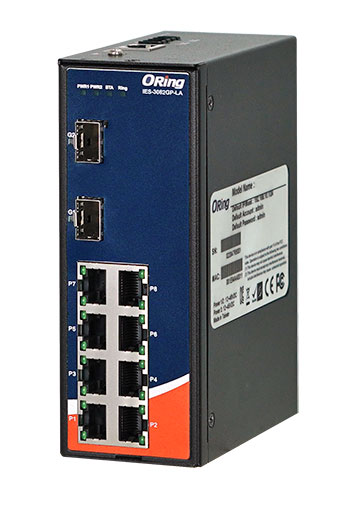

IES-3082GP-LA
Industrial 10-port managed Ethernet switch with 8x 10/100Base-T(X) and 2x 100/1000Base-FX, SFP socket
Overview
IES-3082GP-LA is a managed Redundant Ring Ethernet switch with 8x10/100Base-T(X) ports and 2x100/1000Base-X SFP socket. With complete support of Ethernet Redundancy protocol, O-Ring (recovery time < 30ms over 250 units of connection), O-Chain, MRP, and MSTP/RSTP/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. O-Chain allows multiple redundant network rings of different redundancy protocols to join and function as a larger, more robust compound network topology. O-Chain provides ease-of-use while maximizing fault-recovery swiftness, flexibility, compatibility, and cost-effectiveness in one set of network redundancy topology. The wide operating temperature range from -40 to 75 °C can satisfy most operating environments.
Features
- 5,6 Gbps Switch bandwidth and 10µs latency
- Support IPV6 new internet protocol version
- Support O-Ring, O-Chain and IEC 62439-2 MRP for Ethernet redundancy
- MSTP/RSTP/STP (IEEE 802.1s/w/D)
- Application-based QoS management, IGMP snooping support, Device Binding security, DOS/DDOS auto prevention
- Support Modbus TCP
- Supports SNTP and PTP Client for clock synchronization
- SNMP v1/v2c/v3 support; RMON for traffic monitoring
- ACL and 802.1x User Authentication for security
- Event notification through Syslog, Email, SNMP trap
- Open-Vision support centralized management; configurable by Web, Telnet, Console, CLI
- Dual DC inputs
- Rigid IP-30 housing; DIN-Rail and wall mounting
IES-3082GP-LA Specifications
Interfaces
- 8x 10/100Base-T(X) ports in RJ45
- 2x 100/1000BaseX SFP Ports
- 1x RS232 Console Port (RJ45)
Power
- Dual DC inputs. 12-48VDC on 4-pin terminal block
- Power Consumption (Typ.) 6 Watts
- Overload Current Protection Present
Environmental
- Operating Temperature -40 to 75°C (-40 to 167°F)
- Operating Humidity 5% to 95% Non-condensing
Physical Characteristics
- Dimensions (mm): 54,3 (W) x 107 (D) x 145 (H)
- Enclosure: metallic - IP30
- Warranty 5 years
Accessories
- NDR-75 series, 75W Din Rail Power Supply
- SFP1G series 1Gbps SFP optical transceiver
- SFP100 series 100Mbps SFP optical transceiver
- Open-Vision M500, Network Management Windows
- DBU-01 Device Configuration Backup Unit
