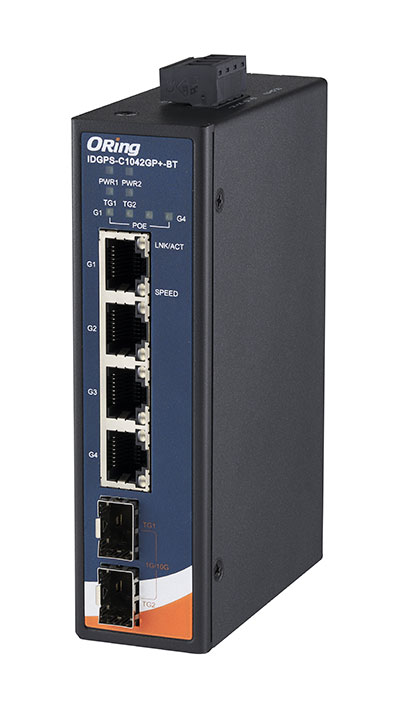

IDGPS-C1042GP+-BT Industrial PoE Switch
Industrial Unmanaged IEEE 802.3bt PoE Switch 4 port 2.5G PSE + 2 1G/10G SFP
Overview IDGPS-C1042GP+-BT
The IDGPS-C1042GP+-BT is an unmanaged Ethernet switch with 4 x 10/100/1000/2500Base-T(X) IEEE 802.3bt PSE ports and 2 x 1G/10GBase-X, SFP socket, offering high-speed and reliable connectivity and total power budget of 240Watts with maximum 90Watts per port. With our high power 802.3bt solution, you can easily connect and power high-power devices such as IP cameras, wireless APs, and VoIP phones without the need for separate power sources or complicated setups. The four 2.5 Gigabit ports are available for connecting high-speed devices. Additionally, the two 10G Ethernet ports can be utilized for uplink transmission, establishing a high-bandwidth transmission. With an extensive operating temperature range spanning from -40°C to 75°C, they effortlessly adapt to various operational environments.
Features IDGPS-C1042GP+-BT
- Provides 4x10/100/1000/2500Base-T(X) HiPoE PSE ports
- Support IEEE 802.3bt compliant PoE with maximum 90Watts per port
- Switching latency: 10 µs - Switching bandwidth: 60Gbps
- Support store and forward transmission
- Supports Jumbo frame up to 16KBytes
- Dual power inputs
- Rigid IP-40 housing design
- DIN Rail mounting
Interfaces
- 4 x 10/100/1000/2500Base-T(X) PSE Ports in RJ45
- 2 x 1G/10GBaseX (SFP)
Environmental
- Operating Temperature -40 to 75°C
- Operating Humidity 5% to 95% Non-condensing
Power
- Redundant Input Power Dual DC inputs. 52-57 VDC on 4-pin terminal block
- Total POE power budget is 240Watts with maximum 90Watts per port
- Power Consumption (Typ.): 10 Watts (PD not included)
- Overload Current Protection Present
Physical Characteristics
- Dimensions (mm): 35(W) x 88 (D) x 130(H)
- Enclosure: metallic - IP40
- Warranty: 5 years
Accessories
- NDR-120 series 120W DIN-Rail power supply
- NDR-240 series 240W DIN-Rail power supply
