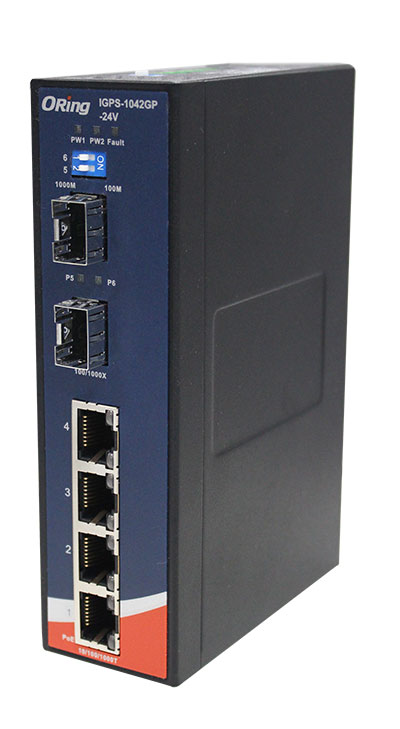

IGPS-1042GP-24V
Industrial 6-port slim type unmanaged Gigabit PoE Ethernet switch with 4x10/100/1000Base-T(X) P.S.E. and 2x100/1000Base-X, SFP socket, 24VDC power input
Overview
IGPS-1042GP-24V is an unmanaged PoE Ethernet switch with P.S.E. function. IGPS-1042GP-24V supports Power over Ethernet, a system to transmit electrical power, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. IGPS-1042GP-24V has 4x10/100/1000Base-T(X) P.S.E. (Power Sourcing Equipment) ports, and 2x100/1000Base-X SFP port. The SFP port optical network speed can be set by changing the settings of the DIP-Switch below. IGPS-1042GP-24V supports wide range 24~36VDC power inputs and generates 50VDC P.S.E. power output per port. P.S.E. is a device (switch or hub for instance) that will provide power in a PoE setup. The wide operating temperature range from -40ºC to 70ºC can satisfy most of operating environment.
Features
- Provides 4x10/100/1000Base-T(X) PoE (P.S.E.) ports
- Support P.S.E. based on IEEE 802.3at standard up to 30 Watts per port
- Support store and forward transmission
- Advanced PoE power boost technology to support dual 24VDC power inputs
- Very wide operating temperature range from -40 to 70°C
- Rigid IP-30 housing design
- DIN Rail mounting
Interfaces
- 4 x 10/100/1000Base-T(X) PSE Ports in RJ45
- 2 x 100/1000 BaseX (SFP)
Environmental
- Operating Temperature -40 to 70°C
- Operating Humidity 5% to 95% Non-condensing
Power
- Redundant Input Power Dual DC inputs. 24-36 VDC on 6-pin terminal block
- Power Consumption (Typ.): 6,2 Watts (powered device not included)
- Overload Current Protection Present
- Relay output to carry capacity of 1A at 24VDC
Physical Characteristics
- Dimensions (mm): 41(W)x94,9(D)x144,3(H)
- Enclosure: metallic - IP30
- Warranty: 5 years
Accessories
- SFP 100M & 1G modules
- NDR-120 series 120W DIN-Rail power supply
