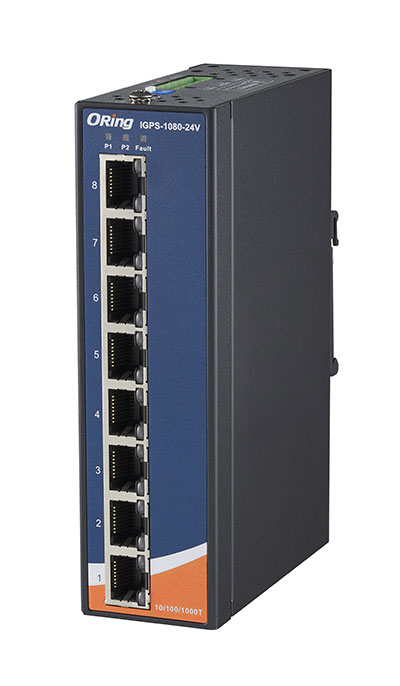

IGPS-1080A-24V
Industrial Slim Type 8 port PoE Unmanaged Ethernet Switch
Overview
IGPS-1080-24V is the unmanaged gigabit PoE switch with P.S.E. function and relay output of 24VDC at 1A. IGPS-1080-24V supports Power over Ethernet, a system to transmit electrical power, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. IGPS-1080-24V supports wide-range 12~57VDC power inputs and generates 50VDC P.S.E. power output per port. IGPS-1080-24V PoE switch has 8x 10/100/1000Base-T(X) P.S.E. (Power Sourcing Equipment) ports. The wide operating temperature range from -40°C to 75°C can satisfy most of operating environment. Therefore, the switch is one of the most reliable choices for PoE Ethernet application.
Features
- Provides 8x10/100/1000Base-T(X) PoE (P.S.E.) ports
- Support P.S.E. based on IEEE 802.3at standard up to 30 Watts per port
- Switching latency: 7 µs - Switching bandwidth: 16Gbps
- Support store and forward transmission
- Supports Jumbo frame up to 9KBytes
- Dual 12-57VDC power inputs
- Rigid IP-30 housing design
- DIN Rail mounting
- E-Mark certified
Interfaces
- 8 x 10/100/1000Base-T(X) PSE Ports in RJ45
Environmental
- Operating Temperature -40 to 75°C
- Operating Humidity 5% to 95% Non-condensing
Power
- Redundant Input Power Dual DC inputs. 12-57VDC on 6-pin terminal block
- POE Power Budget: 60Watts(12~24VDC) / 120 Watts (24~57VDC)
- Power Consumption (Typ.): 8 Watts (PD not included)
- Overload Current Protection Present
- Relay output to carry capacity of 1A at 24VDC
Physical Characteristics
- Dimensions (mm): 26,1(W) x 94,9(D) x 144,3(H)
- Enclosure: metallic - IP30
- Warranty: 5 years
Accessories
- NDR-120 series 120W DIN-Rail power supply
- NDR-240 series 240W DIN-Rail power supply
