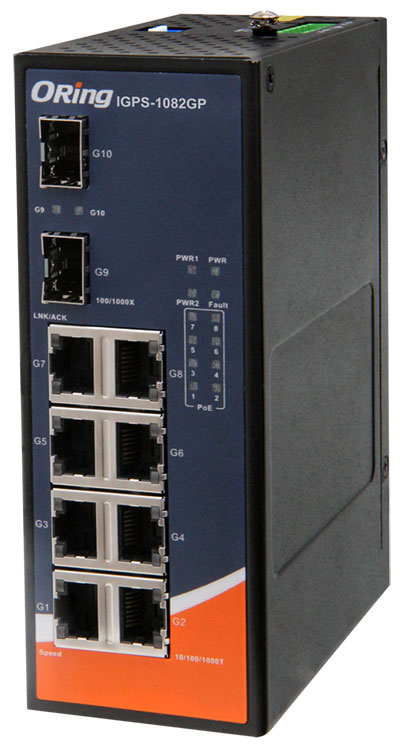

IGPS-1082GP
Industrial 10-port unmanaged Gigabit PoE Ethernet switch with 8x10/100/1000Base-T(X) P.S.E. and 2x100/1000Base-X, SFP socket
Overview
IGPS-1082GP series is full Gigabit unmanaged PoE Ethernet switches with 8x10/100/1000Base-T(X) P.S.E. ports and 2x100/1000Base-X SFP ports. IGPS-1082GP series also support Power over Ethernet, a system to transmit electrical power up to 30 watts, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. Each IGPS-1082GP series switch has 8x10/100/1000Base-T(X) P.S.E. (Power Sourcing Equipment) ports. P.S.E. is a device (switch or hub for instance) that will provide power in a PoE connection. And support wide operating temperature from -40 ºC to 75 ºC.
Features
- Provides 8x10/100/1000Base-T(X) PoE (P.S.E.) ports
- Support P.S.E. based on IEEE 802.3at standard up to 30 Watts per port
- Switching latency: 7 µs - Switching bandwidth: 20Gbps
- Support store and forward transmission
- Supports Jumbo frame up to 9KBytes
- Dual power inputs
- Rigid IP-30 housing design
- DIN Rail mounting
Interfaces
- 8 x 10/100/1000Base-T(X) PSE Ports in RJ45
- 2 x 100/1000BaseX (SFP)
Environmental
- Operating Temperature -40 to 75°C
- Operating Humidity 5% to 95% Non-condensing
Power
- Redundant Input Power Dual DC inputs. 50-57 VDC on 6-pin terminal block
- Total POE power budget is 180Watts with maximum 30Watts per port
- Power Consumption (Typ.): 11 Watts (PD not included)
- Overload Current Protection Present
- Relay output to carry capacity of 1A at 24VDC
Physical Characteristics
- Dimensions (mm): 54,3(W)x108,3(D)x145,1(H)
- Enclosure: metallic - IP30
- Warranty: 5 years
Accessories
- NDR-120 series 120W DIN-Rail power supply
- NDR-240 series 240W DIN-Rail power supply
