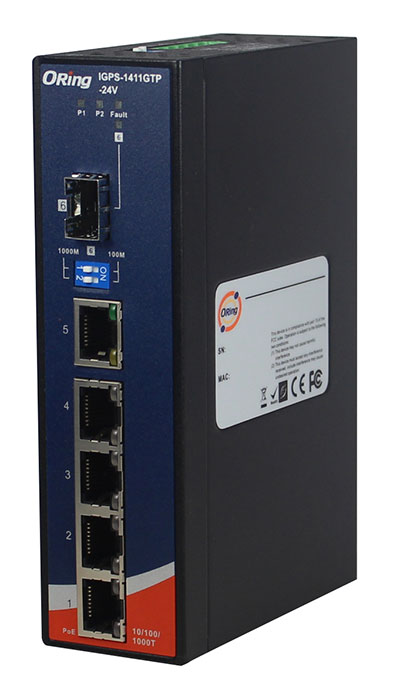

IGPS-1411GTPA-24V
Industrial 6-port slim type unmanaged Gigabit PoE Ethernet switch with 4x10/100/1000Base-T(X) P.S.E. and 1x10/100/1000Base-T(X) and 1x1000Base-X, SFP socket, 24VDC power inputs
Overview
IGPS-1411GTP-24V is an unmanaged PoE Ethernet switch with P.S.E. function. IGPS-1411GTP-24V supports Power over Ethernet, a system to transmit electrical power, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. IGPS-1411GTP-24V has 4x10/100/1000Base-T(X) P.S.E. (Power Sourcing Equipment) ports, 1 additional Gigabit port, and 1x100/1000Base-X SFP port. The SFP port optical network speed can be set by changing the settings of the DIP-Switch below. IGPS-1411GTP-24V supports wide range 12~36VDC power inputs and generates 50VDC P.S.E. power output per port. P.S.E. is a device (switch or hub for instance) that will provide power in a PoE setup.
Features
- Provides 4x10/100/1000Base-T(X) PoE (P.S.E.) ports
- Support P.S.E. based on IEEE 802.3at standard up to 30 Watts per port
- Support store and forward transmission
- SFP port support 100Base-FX and 1000Base-X speed
- Very wide operating temperature range from -40 to 70°C
- Support dual wide range 12~36VDC power inputs for power redundancy
- Rigid IP-30 housing design
- DIN Rail mounting
Interfaces
- 4 x 10/100/1000Base-T(X) PSE Ports in RJ45
- 1 x 10/100/1000Base-T(X) Ports in RJ45
- 1 x 100/1000BaseX (SFP)
Environmental
- Operating Temperature -40 to 70°C
- Operating Humidity 5% to 95% Non-condensing
Power
- Redundant Input Power Dual DC inputs. 12-36 VDC on 6-pin terminal block
- Power Consumption (Typ.): 6,5 Watts (powered device not included)
- Overload Current Protection Present
- Relay output to carry capacity of 1A at 24VDC
Physical Characteristics
- Dimensions (mm): 41 (W) x 94.9 (D) x 144.3(H)
- Enclosure: metallic - IP30
- Warranty: 5 years
Accessories
- SFP 100M & 1G modules
- NDR-120 series 120W DIN-Rail power supply
