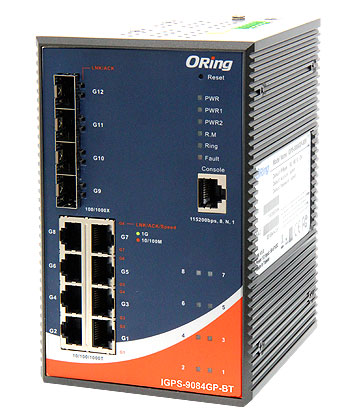

IGPS-9084GP-BT Manged PoE Switch
Industrial 12-port managed Gigabit High power PoE Ethernet switch with 8x10/100/1000Base-T(X) bt P.S.E. ports and 4x100/1000Base-X, SFP socket
Overview IGPS-9084GP-BT
IGPS-9084GP-BT is managed redundant ring PoE Ethernet switch with 8x10/100/1000Base-T(X) bt P.S.E. ports and 4x100/1000Base-X SFP ports. The switch support Ethernet Redundancy protocol, O-Ring (recovery time < 30ms over 250 units of connection) and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. IGPS-9084GP-BT supports Power over Ethernet with 8x10/100/1000Base-T(X) 90Watts P.S.E. (Power Sourcing Equipment) ports. And support wide operating temperature from -40 ºC to 75 ºC. IGPS-9084GP-BT can also be managed centralized and convenient by Open-Vision, Except the Web-based interface, Telnet and console (CLI) configuration.
Features IGPS-9084GP-BT
- 8-ports IEEE 802.3af/at/bt compliant PoE; total power budget 240W with maximum 90W per port
- 24Gbps Switch bandwidth and 7µs latency
- Support IPV6 new internet protocol version
- Support O-Ring (recovery time < 30ms) and MSTP(RSTP/STP compatible) for Ethernet Redundancy
- O-Chain allow multiple redundant network rings. Standard IEC 62439-2 MRP on request
- Application-based QoS management, IGMP snooping support, Device Binding security, DOS/DDOS auto prevention
- Support Modbus TCP protocols
- SNMP v1/v2c/v3 support; RMON for traffic monitoring
- ACL and 802.1x User Authentication for security
- Event notification through Syslog, Email, SNMP trap
- Open-Vision support centralized management; configurable by Web, Telnet, Console, CLI
- IEEE 802.3az Energy-Efficient Ethernet
- Dual DC inputs
- Rigid IP-30 housing; DIN-Rail and wall mounting
IGPS-9084GP-BT Specifications
Interfaces
- 8x 10/100/1000Base-T(X) ports with P.S.E. in RJ45
- 4x 100/1000Base-X (SFP) ports
- 1x RS232 Console Port (RJ45)
- Relay output
Power
- Dual DC inputs. 50-57VDC on 6-pin terminal bloc
- Power Consumption (Typ.) 13 Watts
- Overload Current Protection Present
PoE
- PoE power budget: 240W max - 30W/port
Environmental
- Operating Temperature -40 to 75°C (-40 to 167°F)
- Operating Humidity 5% to 95% Non-condensing
Physical Characteristics
- Dimensions (mm): 96.4 (W) x 105.5 (D) x 154 (H)
- Enclosure: metallic - IP30
- Warranty 5 years
Accessories
- NDR-240 series, 240W Din Rail Power Supply
- SFP1G series 1Gbps SFP optical transceiver
- SFP100 series 100Mbps SFP optical transceiver
- Open-Vision M500, Network Management Windows
- DBU-01 Device Configuration Backup Unit
