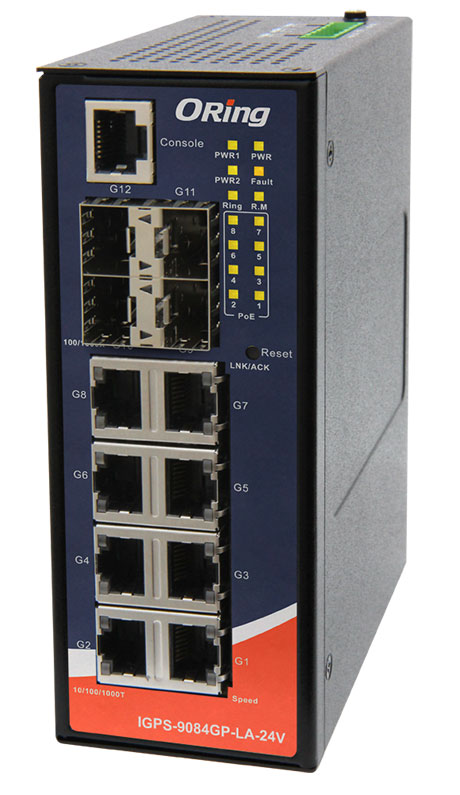

IGPS-9084GP-LA-24V

Managed Cyber-hardened 12-port Gigabit POE Switch with 8x10/100/1000Base-T(X) ports and 4x100/1000Base-X, SFP socket

Overview

The IGPS-9084GP-LA-24V is a layer 2 managed cyber security switch for industrial applications, equipped with 8x 10/100/1000Base-T(X) P.S.E. ports and 4x 100/1000Base-X SFP ports. Certified to IEC 62443-4-2 standards, it incorporates robust cybersecurity measures to safeguard against potential threats and vulnerabilities.

It supports Ethernet Redundancy protocols such as O-Ring (with a recovery time of < 20ms over 250 units) and MSTP (compatible with RSTP/STP), ensuring reliable protection for mission-critical applications from network interruptions or temporary malfunctions. The switch also features Power over Ethernet (PoE) capabilities, delivering up to 30 watts per port, with a maximum total PoE power budget of 120W.

Features

PoE IEEE802.3af and IEEE802.3at
24Gbps Switch bandwidth and 7µs latency
Support IPV6 new internet protocol version
Support O-Ring (recovery time < 30ms) and MSTP(RSTP/STP compatible) for Ethernet Redundancy
O-Chain allow multiple redundant network rings. Standard IEC 62439-2 MRP on request
Application-based QoS management, IGMP snooping support, Device Binding security, DOS/DDOS auto prevention
Support EtherNet/IP and Modbus TCP protocols
SNMP v1/v2c/v3 support; RMON for traffic monitoring
ACL and 802.1x User Authentication for security
Event notification through Syslog, Email, SNMP trap
Open-Vision support centralized management; configurable by Web, Telnet, Console, CLI
IEEE 802.3az Energy-Efficient Ethernet
Robust EMS design, provide 8KV ESD and 4KV Surge protection
According to IEC 62443-4-1 and certified with the IEC 62443-4-2 industrial cybersecurity standards
Dual DC inputs
Rigid IP-30 housing; DIN-Rail and wall mounting
