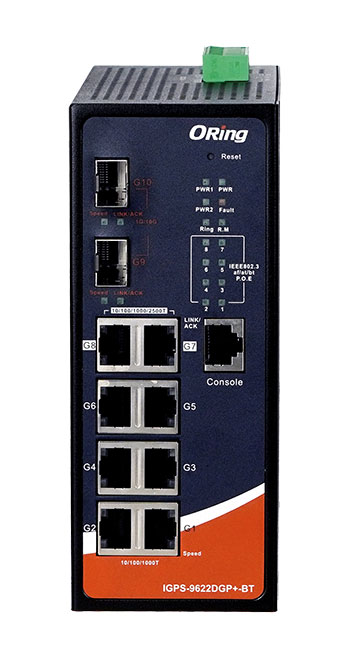

IGPS-9622DGP+-BT - HiPoE Switch
Industrial 10-port Layer 2 Managed PoE++ Switch with 6x10/100/1GBase-T(X) P.S.E ports and 2x10/100/1G/2.5GBase-T(X) P.S.E ports plus 2x1G/10GBase-X, SFP+ socket
Overview
IGPS-9622DGP+-BT is Layer-2 managed Gigabit Ethernet switch with 6x10/100/1000Base-T(X) P.S.E ports and 2x100/1G/2.5G Base-T(X) P.S.E ports plus 2x1G/10GBase-X SFP+ slots. The switch support Ethernet Redundancy protocol, O-Ring (recovery time <30ms) and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. IGPS-9622DGP+-BT also support Power over Ethernet, a system to transmit electrical power up to 90 watts with total 240 watts PoE budget, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. Each IGPS-9622DGP+-BT switch has 6x10/100/1000Base-T(X) P.S.E. (Power Sourcing Equipment) ports. P.S.E. and 2x100/1G/2.5G Base-T(X) P.S.E ports are a device (switch or hub for instance) that will provide power in a PoE connection. And support wide operating temperature from -40 ºC to 75 ºC. IGPS-9622DGP+-BT can also be managed centralized and convenient by Open-Vision, Except the Web-based interface, Telnet and console (CLI) configuration.
Features
- Support 8-ports IEEE 802.3af/at/bt compliant PoE and total power budget is 240W with maximum 90W per port
- 62Gbps Switch bandwidth and 7µs latency
- Support IPV6 new internet protocol version
- Support O-Ring (recovery time < 30ms) and MSTP(RSTP/STP compatible) for Ethernet Redundancy
- O-Chain allow multiple redundant network rings. Standard IEC 62439-2 MRP on request
- Application-based QoS management, IGMP snooping support, Device Binding security, DOS/DDOS auto prevention
- Support EtherNet/IP and Modbus TCP protocols
- SNMP v1/v2c/v3 support; RMON for traffic monitoring
- ACL and 802.1x User Authentication for security
- Event notification through Syslog, Email, SNMP trap
- Open-Vision support centralized management; configurable by Web, Telnet, Console, CLI
- IEEE 802.3az Energy-Efficient Ethernet
- Dual DC inputs
- Rigid IP-30 housing; DIN-Rail and wall mounting
IGPS-9622DGP+-BT Specifications
Interfaces
- 2x 10/100/1000/2500Base-T(X) ports with P.S.E. in RJ45
- 6x 10/100/1000Base-T(X) ports with P.S.E. in RJ45
- 2x 1000/10G Base-X with SFP/SFP+ port
- 1x RS232 Console Port (RJ45)
- Relay output
Power
- Dual DC inputs. 50-57VDC on 6-pin terminal bloc
- Power Consumption (Typ.) 23,8 Watts
- Overload Current Protection Present
PoE
- PoE power budget: 240W max - 30W/port
Environmental
- Operating Temperature -40 to 75°C (-40 to 167°F)
- Operating Humidity 5% to 95% Non-condensing
Physical Characteristics
- Dimensions (mm): 65 (W) x 160,2 (D) x 153,6 (H)
- Enclosure: metallic - IP30
- Warranty 5 years
Accessories
- NDR-240 series, 240W Din Rail Power Supply
- SFP1G series 1Gbps SFP optical transceiver
- SFP100 series 100Mbps SFP optical transceiver
- Open-Vision M500, Network Management Windows
- DBU-01 Device Configuration Backup Unit
