IGPS-9822DGP+

Industrial 12-port layer2 managed Gigabit PoE Ethernet switch with 8x10/100/1000Base-T(X) P.S.E ports and 2x100/1G/2.5GBaseX+2x1G/10GBase-X, SFP+ socket

Overview
The IGPS-9822DGP+ is a managed Gigabit Ethernet switch equipped with 8x 10/100/1000Base-T(X) P.S.E ports and 2x 100/1G/2.5GBase-X + 2x 1G/10GBase-X SFP ports. It supports Ethernet redundancy protocols such as O-Ring (with a recovery time of < 30ms) and MSTP (RSTP/STP compatible), ensuring fast recovery to protect mission-critical applications from network interruptions or temporary malfunctions.

IGPS-9822DGP+ supports Power over Ethernet (PoE), enabling the transmission of electrical power up to 30 watts per port. Each switch includes 8x 10/100/1000Base-T(X) P.S.E. (Power Sourcing Equipment) ports, making it suitable for powering various devices in industrial settings.

Operating reliably across a wide temperature range from -40°C to 75°C, IGPS-9822DGP+ meets the demanding environmental conditions of industrial applications. It can be centrally managed and monitored conveniently using Open-Vision, though it excludes the web-based interface, Telnet, and console (CLI) configurations.

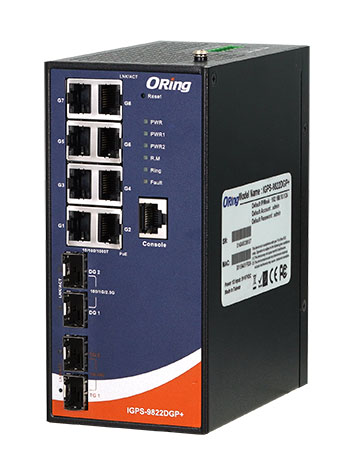

igps-9822dgp

Features

  • PoE IEEE802.3af and IEEE802.3at
  • 66Gbps Switch bandwidth and 7µs latency
  • Support IPV6 new internet protocol version
  • Support O-Ring (recovery time < 30ms) and MSTP(RSTP/STP compatible) for Ethernet Redundancy
  • O-Chain allow multiple redundant network rings. Standard IEC 62439-2 MRP on request
  • Application-based QoS management, IGMP snooping support, Device Binding security, DOS/DDOS auto prevention
  • Support EtherNet/IP and Modbus TCP protocols
  • SNMP v1/v2c/v3 support; RMON for traffic monitoring
  • ACL and 802.1x User Authentication for security
  • Event notification through Syslog, Email, SNMP trap
  • Open-Vision support centralized management; configurable by Web, Telnet, Console, CLI
  • IEEE 802.3az Energy-Efficient Ethernet
  • Dual DC inputs
  • Rigid IP-30 housing; DIN-Rail and wall mounting

IGPS-9822DGP+ Specifications

Interfaces

  • 8x 10/100/1000Base-TX with P.S.E. ports
  • 2x 100/1000/2500 BaseX SFP Ports
  • 2x 1G/10G BaseX SFP Ports
  • 1x RS232 Console Port (RJ45)
  • Relay output
Regulatory Approvals

Power

  • Dual DC inputs. 50-57VDC on 6-pin terminal block
  • Power Consumption (Typ.) 13,2 Watts
  • Overload Current Protection Present

PoE

  • PoE power budget: 240W max - 30W/port

Environmental

  • Operating Temperature -40 to 75°C (-40 to 167°F)
  • Operating Humidity 5% to 95% Non-condensing

Physical Characteristics

  • Dimensions (mm): 74,3 (W) x 125 (D) x 153,6 (H)
  • Enclosure: metallic - IP30
  • Warranty 5 years

Accessories

  • NDR-240 series, 240W Din Rail Power Supply
  • SFP1G series 1Gbps SFP optical transceiver
  • SFP100 series 100Mbps SFP optical transceiver
  • Open-Vision M500, Network Management Windows
  • DBU-01 Device Configuration Backup Unit
