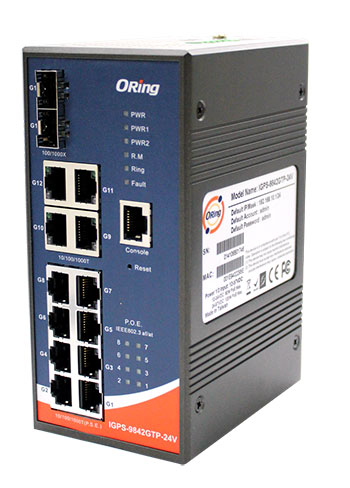

IGPS-9842GTP-24V - Industrial PoE Ethernet Switch
Industrial 14-port managed Gigabit PoE Ethernet switch with 8x10/100/1000Base-T(X) P.S.E. and 4x10/100/1000Base-T(X) and 2x100/1000Base-X, SFP socket
Overview
IGPS-9842GTP-24V is a managed redundant ring PoE Ethernet switch with 8x10/100/1000Base-T(X) P.S.E. ports and 4x10/100/1000Base-T(X) copper ports and 2x100/1000Base-X SFP ports which is compliant with EN50155 request. With completely support of Ethernet Redundancy protocol, O-Ring (recovery time < 30ms over 250 units of connection) Open-Ring, O-Chain, MRP, ERPS and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. IGPS-9842GTP also support Power over Ethernet, up to 30 watts (total 120watts max.). Each IGPS-9842GTP switch has 8x10/100/1000Base-T(X) P.S.E. (Power Sourcing Equipment) ports. P.S.E. is a device (switch or hub for instance) that will provide power in a PoE connection. And support wide operating temperature from -40 to 75°C. IGPS-9842GTP can also be managed centralized and convenient by Open-Vision, Except the Web-based interface, Telnet and console (CLI) configuration.
Features
- PoE IEEE802.3af and IEEE802.3at
- 28Gbps Switch bandwidth and 7µs latency
- Support IPV6 new internet protocol version
- Support O-Ring (recovery time < 30ms) and MSTP(RSTP/STP compatible) for Ethernet Redundancy
- O-Chain allow multiple redundant network rings. Standard IEC 62439-2 MRP on request
- Application-based QoS management, IGMP snooping support, Device Binding security, DOS/DDOS auto prevention
- Support EtherNet/IP and Modbus TCP protocols
- SNMP v1/v2c/v3 support; RMON for traffic monitoring
- ACL and 802.1x User Authentication for security
- Event notification through Syslog, Email, SNMP trap
- Open-Vision support centralized management; configurable by Web, Telnet, Console, CLI
- IEEE 802.3az Energy-Efficient Ethernet
- Leading EN50155-compliant Ethernet switch for rolling stock application
- Dual DC inputs
- Rigid IP-30 housing; DIN-Rail and wall mounting
IGPS-9842GTP-24V Specifications
Interfaces
- 8x 10/100/1000Base-T(X) with P.S.E. ports in RJ45 Auto MDI/MDIX
- 4x 10/100/1000Base-T(X) in RJ45 Auto MDI/MDIX
- 2x 100/1000 BaseX SFP Ports
- 1x RS232 Console Port (RJ45)
- Relay output
Power
- Dual DC inputs. 12-57VDC on 6-pin terminal block
- Power Consumption (Typ.) 13,2 Watts
- Overload Current Protection Present
PoE
- 12 ~ 24VDC : total power budget is 60Watts with maximum
30Watts per port - 24 ~ 57VDC : total power budget is 120Watts with
maximum 30Watts per port
Environmental
- Operating Temperature -40 to 75°C (-40 to 167°F)
- Operating Humidity 5% to 95% Non-condensing
Physical Characteristics
- Dimensions (mm): 54,3 (W) x 108,3 (D) x 145,1 (H)
- Enclosure: metallic - IP30
- Warranty 5 years
Accessories
- NDR-240 series, 240W Din Rail Power Supply
- SFP1G series 1Gbps SFP optical transceiver
- SFP100 series 100Mbps SFP optical transceiver
- Open-Vision M500, Network Management Windows
- DBU-01 Device Configuration Backup Unit
