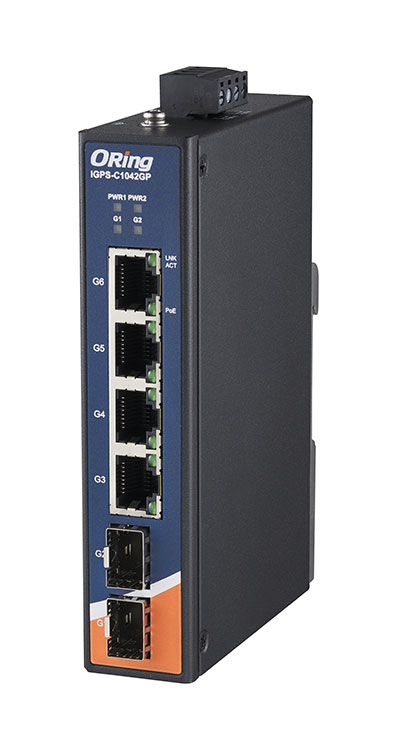

IGPS-C1042GP
Industrial Unmanaged Ethernet Switch, IEEE 802.3af/at 4GE PoE + 2G SFP
Overview
IGPS-C1042GP is unmanaged Ethernet Switch with 4x10/100/1000Base-T(X) P.S.E ports with 2x100/1000Base-X SFP ports and extended operating temperature range from -40℃ to 75℃ for the harsh environments.
Features
- Provides 4x10/100/1000T(X) PoE/PoE+ PSE ports
- Support IEEE 802.3af/at compliant PoE with maximum 30Watts per port
- Switching latency: 9 µs - Switching bandwidth: 12Gbps
- Support store and forward transmission
- Supports Jumbo frame up to 9KBytes
- Dual power inputs
- Rigid IP-40 housing design
- DIN Rail mounting
Interfaces
- 4 x 10/100/1000Base-T(X) PSE Ports in RJ45
- 2 x 100/1000BaseX (SFP)
Environmental
- Operating Temperature -40 to 75°C
- Operating Humidity 5% to 95% Non-condensing
Power
- Dual DC inputs. 48-57 VDC on 4-pin terminal block
- Total POE power budget is 120Watts with maximum 90Watts per port
- Power Consumption (Typ.): 6 Watts (PD not included)
- Overload Current Protection Present
Physical Characteristics
- Dimensions (mm): 28(W) x 88(D) x 130(H)
- Enclosure: metallic - IP40
- Warranty: 5 years
Accessories
- NDR-120 series 120W DIN-Rail power supply
- NDR-240 series 240W DIN-Rail power supply
