RGPS-92222GCP-NP

Industrial 26-port managed Gigabit PoE Ethernet switch with 22x10/100/1000Base-T(X) P.S.E., 2xGigabit combo P.S.E. and 2x100/1000Base-X, SFP socket

Overview

RGPS-92222GCP-NP series are Gigabit managed redundant ring PoE Ethernet switch with 22x10/100/1000Base-T(X) IEEE802.3at P.S.E. ports and 2xGigabit combo IEEE802.3at P.S.E. ports and 2x100/1000Base-X SFP ports. These switches support Ethernet Redundancy protocol, O-Ring (recovery time < 30ms over 250 units of connection) and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. RGPS-92222GCP-NP series also support Power over Ethernet, a system to transmit electrical power up to 30 watts, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. RGPS-92222GCP-NP models support wide operating temperature from -40 ºC to 60 ºC.

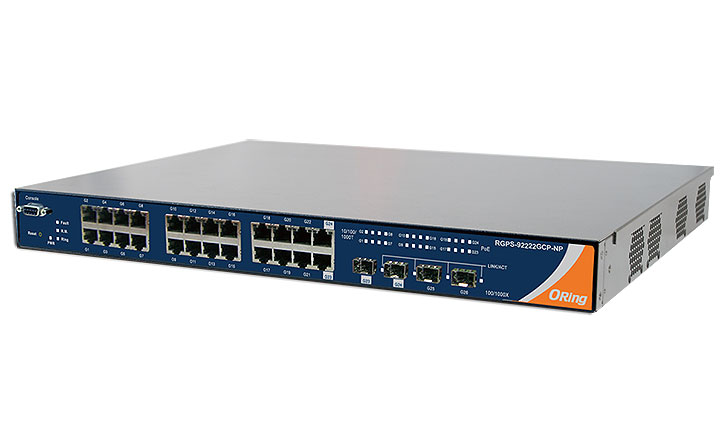

rgps-92222gcp-np

Features

  • 52 Gbps Switch bandwidth and 7µs latency
  • 24 port 10/100/1000Base-T(X) P.S.E. IEEE802.3at, up to 30 Watts / port
  • IEC 62443-4-1 and IEC 62443-4-2 industrial cybersecurity standards certified
  • Support O-Ring (recovery time < 30ms) and MSTP(RSTP/STP compatible) for Ethernet Redundancy
  • O-Chain allow multiple redundant network rings. IEC 62439-2 MRP on request
  • Support SMTP client and SNTP server protocol
  • Application-based QoS management, IGMP snooping support, Device Binding security, DOS/DDOS auto prevention
  • Modbus TCP
  • SNMP v1/v2c/v3 support; RMON for traffic monitoring
  • ACL and 802.1x User Authentication for security
  • Event notification through Syslog, Email, SNMP trap
  • Open-Vision support centralized management; configurable by Web, Telnet, Console, CLI
  • IEEE 802.3az Energy-Efficient Ethernet

RGPS-92222GCP-NP Specifications

Interfaces

  • 22 x 10/100/1000Base-T(X) with P.S.E. Ports in RJ45 Auto MDI/MDIX
  • 2x Gigabit Combo port with 10/100/1000Base-T(X) P.S.E. and 100/1000Base-X SFP ports
  • 2x 100/1000BaseX SFP ports
  • 1x RS232 Console Port (DB9)

Power

RGPS-92222GCP-NP-LP - 450W - 100~240VAC with power cord (total power budget 320W max)

RGPS-92222GCP-NP-P - 1000W - 100~240VAC with power cord (total power budget 720W max)

RGPS-92222GCP-NP : 50 ~ 57VDC with terminal block (Total power budget 720Watts based-on external power supply spec)

  • Power Consumption (Typ.) 37 Watts (PD not included)
  • Overload Current Protection Present

Environmental

  • Operating Temperature -40 to 60°C (-40 to 167°F)
  • Operating Humidity 5% to 95% Non-condensing

Physical Characteristics

  • Dimensions (mm): 431(W) x 342(D) x 44(H)
  • Enclosure: metallic - IP30
  • Warranty 5 years

Accessories

  • SFP1G series 1Gbps SFP optical transceiver
  • SFP100 series 100Mbps SFP optical transceiver
  • DBU-01 Device Configuration Backup Unit
Regulatory Approvals
