RGPS-9244GP-LP-HV

Industrial 28-port managed Gigabit PoE Ethernet switch with 24x10/100/1000Base-T(X) P.S.E. and 4x1G Base-X, SFP+ socket

Overview
RGPS-9244GP-LP-HV is Layer 2 Gigabit managed redundant ring PoE Ethernet switch with 24x10/100/1000Base-T(X) IEEE802.3at P.S.E. ports and 4x1GX SFP+ ports. The switch support Ethernet Redundancy protocol, O-Ring (recovery time <30ms) and MSTP (RSTP/STP compatible) to protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. RGPS-9244GP-LP-HV series support Power over Ethernet up to 30 watts and wide operating temperature from -40℃ to 60℃. Besides the Web-based interface, Telnet and console (CLI) configuration, it can also be remotely and centralized managed Open-Vision platform.

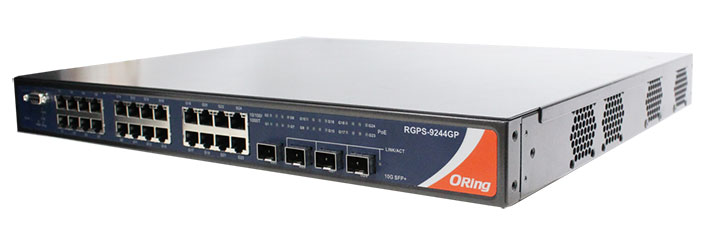

rgps-9244gp-lp-hv

Features

  • 128 Gbps Switch bandwidth and 7µs latency
  • 24 port 10/100/1000Base-T(X) P.S.E. IEEE802.3at, up to 30 Watts / port
  • Support O-Ring (recovery time <30ms) and MSTP(RSTP/STP compatible) for Ethernet Redundancy
  • O-Chain allow multiple redundant network rings. IEC 62439-2 MRP on request
  • Support SMTP client and SNTP server protocol
  • Application-based QoS management, IGMP snooping support, Device Binding security, DOS/DDOS auto prevention
  • Modbus TCP
  • SNMP v1/v2c/v3 support; RMON for traffic monitoring
  • ACL and 802.1x User Authentication for security
  • Event notification through Syslog, Email, SNMP trap
  • Open-Vision support centralized management; configurable by Web, Telnet, Console, CLI
  • IEEE 802.3az Energy-Efficient Ethernet

RGPS-9244GP-LP-HV Specifications

Interfaces

  • 24 x 10/100/1000Base-T(X) with P.S.E. Ports in RJ45 Auto MDI/MDIX
  • 2x 1G Base-X with SFP port
  • 1x RS232 Console Port (DB9)

Power

  • Dual 100~240VAC with AC socket (2x 500W)
  • PoE Budget: 300Watts (-20℃~50℃) - 240Watts (50℃~60℃)
  • Power Consumption (Typ.) 49 Watts (PD not included)
  • Overload Current Protection Present

Environmental

  • Operating Temperature -40 to 60°C (-40 to 167°F)
  • Operating Humidity 5% to 95% Non-condensing

Physical Characteristics

  • Dimensions (mm): 431(W) x 392(D) x 44(H)
  • Enclosure: metallic - IP30
  • Warranty 5 years

Accessories

  • SFP1G series 1Gbps SFP optical transceiver
  • SFP100 series 100Mbps SFP optical transceiver
  • DBU-01 Device Configuration Backup Unit
Regulatory Approvals
