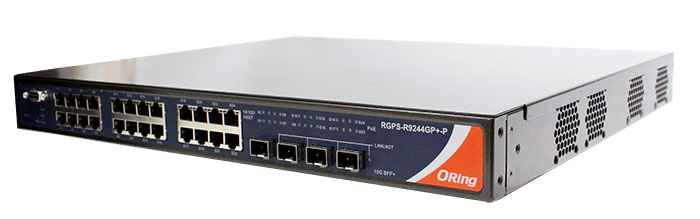

RGPS-R9244GP+

Industrial Layer-3 28-port managed Gigabit PoE Ethernet switch with 24x10/100/1000Base-T(X) P.S.E. and 4x1G/10GBase-X, SFP+ socket

Overview

RGPS-R9244GP+ series is Layer 3 Gigabit managed redundant ring PoE Ethernet switch with 24x10/100/1000Base-T(X) IEEE802.3at P.S.E. ports and 4x1G/10GBase-X SFP+ ports. The switch support Ethernet Redundancy protocol, O-Ring (recovery time < 30ms) and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. RGPS-R9244GP+ series also support Power over Ethernet, a system to transmit electrical power up to 30 watts.

Features

128 Gbps Switch bandwidth and 7µs latency
24 port 10/100/1000Base-T(X) P.S.E. fully compliant with IEEE802.3at standard, provide up to 30 Watts / port
Support Layer 3 static routing, RIP and VRRP function
Support O-Ring (recovery time < 30ms) and MSTP(RSTP/STP compatible) for Ethernet Redundancy
O-Chain allow multiple redundant network rings. Standard IEC 62439-2 MRP on request
Support SMTP client and SNTP server protocol
Application-based QoS management, IGMP snooping support, Device Binding security, DOS/DDOS auto prevention
Modbus TCP
SNMP v1/v2c/v3 support; RMON for traffic monitoring
ACL and 802.1x User Authentication for security
Event notification through Syslog, Email, SNMP trap
Open-Vision support centralized management; configurable by Web, Telnet, Console, CLI
IEEE 802.3az Energy-Efficient Ethernet
IEC 62443-4-1 and IEC 62443-4-2 industrial cybersecurity standards certified
