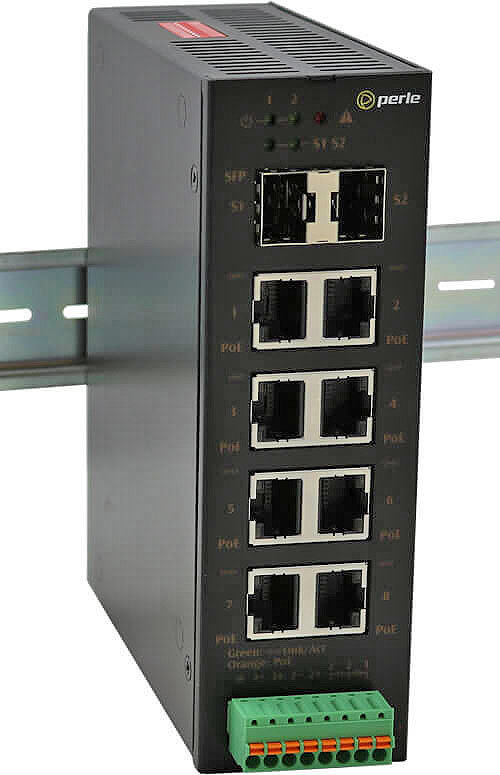

IDS-110HP
Industrial Type 8 port PoE/PoE+/HiPoE UnManaged Gigabit Ethernet Switch
Overview
Perle IDS-110HP PoE Switches are designed for deployment in challenging industrial environments where extensive temperature tolerance, resistance to vibrations and shocks, and compliance with stringent safety standards are required. Combines essential industrial Ethernet networking functionality, real-time deterministic network operation, and advanced rugged performance. While it requires no configuration and will operate instantly as soon as you power it up, the built-in QoS (Quality of Service) support for EtherNet/IP and PROFINET allows for traffic prioritization and effective management of resources.
In addition, these PoE Switches are classified as Power Sourcing Equipment (PSE). While using standard UTP cables that carry Ethernet data, the IDS-110HP has eight ports that provide up to 90 watts of power to Powered Devices (PDs) such as outdoor PTZ dome cameras, wireless access points, and way-side communication devices.
A built-in watchdog feature enables the IDS-110HP switch to operate as an intelligent device to prevent packet loss from powered devices (PDs) in the network. If a PD becomes unresponsive, the IDS-110HP will reboot the device without interrupting other PDs connected to the switch.
The IDS-110HP also provides a relay output contact that triggers an immediate alarm when redundant power fails.
Features
- Eight Gigabit PSE ports and two SFP slots
- 8x 10/100/1000TX ports with up to 90 Watts PSE power, IEEE 802.3bt compliant
- QoS (Quality of Service) prioritized messages
- IEEE 802.3az Energy Efficient Ethernet
- 6Kv surge protection
- EN50121-4
- Dual DC inputs
- Compact, corrosion resistant metal case
- Rigid IP-30 housing; DIN-Rail
IDS-110HP Specifications
- 8 x 10/100/1000Base-T(X) PSE Ports in RJ45 Auto MDI/MDIX
- 2 x 100/1000Base-X SFP slot
- Relay output
IDS-110HP- Operating Temperature -10°C to 60°C
IDS-110HP-XT - Operating Temperature -40°C to 75°C
- Operating Humidity 5% to 90% Non-condensing
- 270W total PoE power for the unit
- Support for full 803.2bt (90W) per port
- 54-57 VDC (PoE++ IEEE 803.2bt Type 4), 90W max per port
- 52-57 VDC (PoE++ IEEE 803.2bt Type 3), 60W max per port
- 52-57 VDC (Poe+ IEEE 802.3at Type 2), 30W max per port
- 46-57 VDC (PoE 802.3af or IEEE 802.3at Type 1), 15.4W max / port
- Dual DC inputs. 46-57VDC on 8-pin terminal block
- Power Consumption (Typ.) 9,8 Watts
- Overload Current Protection Present
- Dimensions (mm): 45 (W) x 125 (D) x 145 (H)
- Enclosure: metal - IP30
- Weight: 0,58Kg
- Warranty 5 years
