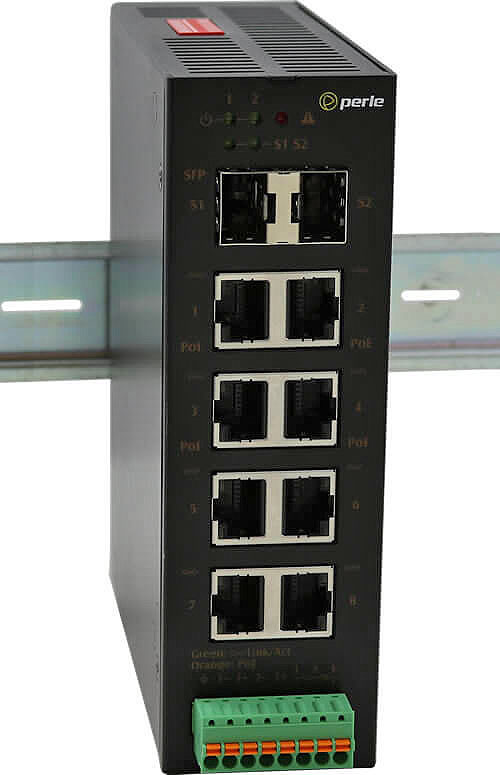

IDS-114HP Industrial PoE Switch
Industrial Type 10 port UnManaged Gigabit Ethernet Switch with 4 port PoE/PoE+/HiPoE
Overview
Perle IDS-114HP PoE Switches are designed for deployment in challenging industrial environments where extensive temperature tolerance, resistance to vibrations and shocks, and compliance with stringent safety standards are required. Combines essential industrial Ethernet networking functionality, real-time deterministic network operation, and advanced rugged performance. While it requires no configuration and will operate instantly as soon as you power it up, the built-in QoS (Quality of Service) support for EtherNet/IP and PROFINET allows for traffic prioritization and effective management of resources.
In addition, these PoE Switches are classified as Power Sourcing Equipment (PSE). While using standard UTP cables that carry Ethernet data, the IDS-114HP has fourt ports that provide up to 90 watts of power to Powered Devices (PDs) such as outdoor PTZ dome cameras, wireless access points, and way-side communication devices.
A built-in watchdog feature enables the IDS-114HP switch to operate as an intelligent device to prevent packet loss from powered devices (PDs) in the network. If a PD becomes unresponsive, the IDS-114HP will reboot the device without interrupting other PDs connected to the switch.
The IDS-114HP also provides a relay output contact that triggers an immediate alarm when redundant power fails.
Features
- Eight Gigabit ports and two SFP slots
- 4x 10/100/1000TX ports with up to 90 Watts PSE power, IEEE 802.3bt compliant
- QoS (Quality of Service) prioritized messages
- IEEE 802.3az Energy Efficient Ethernet
- EN50121-4
- Dual DC inputs
- Compact, corrosion resistant case attaches to a standard DIN Rail
- Rigid IP-30 housing; DIN-Rail
IDS-114HP Specifications
- 4 x 10/100/1000Base-T(X) PSE Ports in RJ45 Auto MDI/MDIX
- 4 x 10/100/1000Base-T(X) Ports in RJ45 Auto MDI/MDIX
- 2x 100/1000BaseX(SFP)
- Relay output
IDS-114HP- Operating Temperature -10°C to 60°C
IDS-114HP-XT - Operating Temperature -40°C to 75°C
- Operating Humidity 5% to 90% Non-condensing
- 270W total PoE power for the unit
- Support for full 803.2bt (90W) per port
- 54-57 VDC (PoE++ IEEE 803.2bt Type 4), 90W max per port
- 52-57 VDC (PoE++ IEEE 803.2bt Type 3), 60W max per port
- 52-57 VDC (Poe+ IEEE 802.3at Type 2), 30W max per port
- 46-57 VDC (PoE 802.3af or IEEE 802.3at Type 1), 15.4W max / port
- Dual DC inputs. 46-57VDC on 8-pin terminal block
- Power Consumption (Typ.) 9,8 Watts
- Overload Current Protection Present
- Dimensions (mm): 45 (W) x 125 (D) x 145 (H)
- Enclosure: metal - IP30
- Weight: 0,58Kg
- Warranty 5 years
- 480W DIN Rail Power Suply
- SFP1G series 1Gbps SFP optical transceiver
- SFP100 series 100Mbps SFP optical transceiver
- Panel/Wall mount kit
