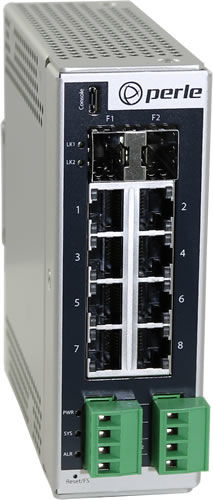

IDS-710HP
Industrial 10 port Managed Gigabit Ethernet Switch with 8x10/100/1000Base-T(X) PoE ports and 2x1G/2,5Base-X, SFP socket
Overview
The IDS-710HP is a 10 port Managed Ethernet Switch that can operate in industrial environments providing advanced performance and enabling real-time deterministic network operation. Eight 10/100/1000-Base-T Ethernet ports are available for networking Gigabit and Fast Ethernet devices. The two SFP slots support 10/100/1000 on Copper or 1G/2.5G on Fiber.
IDS-710HP has a built-in Power over Ethernet injector to supply up to 100W (PoE Type 3 & Type 4) per port for a total of 450W across all 8 ports. This is ideal for powering standards-based 802.3af, 802.3at, and 802.3bt compliant devices.
Perle Industrial Switches are designed to stand up to extreme temperatures, surges, vibrations, and shocks found in industrial automation, government, military, oil and gas, mining and outdoor applications. These rugged fan-less switches are hardened to provide superior reliability in -10 to 60°C or -40 and 70°C depending on version.
The IDS-710HP Managed Switches have Enterprise-grade features for environments where extensive security, QoS, and network integration functionality is required, including MRP (IEC62439-2), PROFINET, Modbus TCP, management VLAN, Management Access Lists, Password Strength requirements, RMON, N:1 port mirroring, and local alert log.
All Perle Industrial Ethernet Switches only use high-end components from the leading chip manufacturers to ensure the highest level of durability and reliability. All units have a corrosion resistance aluminum case and dual redundant power input with reverse polarity and overload protection.
Features
- IPv6
- Support for full 803.2bt (90W) on 5 Ethernet ports simultaneously
- Eight Gigabit PoE/PoE+ PSE capable ports, fully compliant to IEEE 802.3af/at
- Support P-Ring and MSTP/RSTP/STP for Ethernet Redundancy
- Standard IEC 62439-2 MRP
- IEEE1588v2, for clock synchronization
- AQoS and Class of service CoS. IP ToS/DSCP and IEEE 802.1p CoS
- PROFINET and Modbus TCP protocols supported for monitoring and device management
- Advanced protocols to optimize the performance and intelligence of the network: IGMP Snooping, LLDP-MED, GVRP, Voice VLANs, MSTP, GMRP, and IPv6 MLD Snooping
- SNMP v1/v2c/v3 support; RMON for traffic monitoring. Port mirroring
- ACL, TACACS+, RADIUS and 802.1x User Authentication for security
- Event notification through Syslog, Email, SNMP trap
- Central Windows management; configurable by Web, Telnet, Console, CLI
- Dual DC inputs
- Rigid IP-20 housing; DIN-Rail
IDS-710HP Specifications
- 8x 10/100/1000BaseT(X) PSE Ports in RJ45 Auto MDI/MDIX
- 2x 1G/2,5G BaseX SFP Ports
- 1x Console Port (microUSB typeB)
- Relay output
IDS-710HP- Operating Temperature -10°C to 60°C
IDS-710HP-XT - Operating Temperature -40°C to 70°C
- Operating Humidity 5% to 90% Non-condensing
- 450W total PoE power for the unit
- Support for full 803.2bt (90W) on 5 Ethernet ports simultaneously
- 52-57 VDC (PoE++ IEEE 803.2bt Type 4), 100W max per port
- 50-57 VDC (PoE++ IEEE 803.2bt Type 3), 60W max per port
- 50-57 VDC (Poe+ IEEE 802.3at Type 2), 30W max per port
- 44-57 VDC (PoE 802.3af or IEEE 802.3at Type 1), 15.4W max / port
- Redundant Power: Dual DC inputs. 44-57VDC on 4-pin terminal block
- Power Consumption (Typ.) 15,8 Watts
- Overload Current Protection Present
- Dimensions (mm): 45 (W) x 130 (D) x 130 (H)
- Enclosure: metal - IP20
- Weight: 0,48Kg
- Warranty 5 years
- 480W DIN Rail Power Suply
- SFP1G series 1Gbps SFP optical transceiver
- SFP2,5G series 2,5Gbps SFP optical transceiver
- Panel/Wall mount kit
