RGS-9168GCP

Industrial 24-port rack mount managed Gigabit Ethernet switch with 16xGigabit combo ports and 8x100/1000Base-X, SFP socket

Overview

RGS-9168GCP series are Gigabit managed redundant ring Ethernet switch with 16xGigabit combo ports and 8x100/1000Base-X, SFP socket. These switches support Ethernet Redundancy protocol, O-Ring (recovery time < 30ms over 250 units of connection) and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. And RGS-9168GCP series support wide operating temperature from -40 ºC to 75 ºC. RGS-9168GCP series can also be managed centralized and convenient by Open-Vision, Except the Web-based interface, Telnet and console (CLI) configuration.

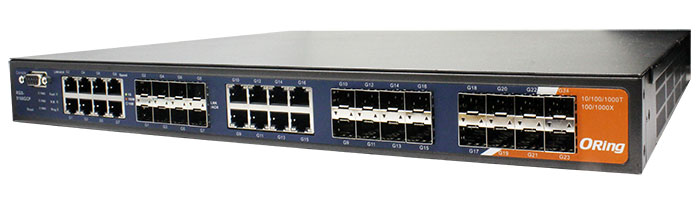

rgs-9168gcp

Features

  • 128 Gbps Switch bandwidth and 7µs latency
  • Support O-Ring (recovery time < 30ms) and MSTP(RSTP/STP compatible) for Ethernet Redundancy
  • O-Chain allow multiple redundant network rings. Standard IEC 62439-2 MRP on request
  • Support SMTP client and SNTP server protocol
  • Application-based QoS management, IGMP snooping support, Device Binding security, DOS/DDOS auto prevention
  • Modbus TCP
  • SNMP v1/v2c/v3 support; RMON for traffic monitoring
  • ACL and 802.1x User Authentication for security
  • Event notification through Syslog, Email, SNMP trap
  • Open-Vision support centralized management; configurable by Web, Telnet, Console, CLI

RGS-9168GCP Specifications

Interfaces

  • 16 Gigabit combo: 16 x 10/100/1000Base-TX (RJ45) or 16 x 100/1000BaseX (SFP)
  • 8x 100/1000BaseX SFP ports
  • 1x RS232 Console Port (DB9)

Power

RGS-9168GCP - Power Input: 100 ~ 240VAC with power cord

RGS-9168GCP-E - Power Inputs: 100~240VAC with power cord, and dual 48VDC (36~72VDC) power inputs at 6-pin terminal block

  • Power Consumption (Typ.) 28,2 Watts
  • Overload Current Protection Present

Environmental

  • Operating Temperature -40 to 75°C (-40 to 167°F)
  • Operating Humidity 5% to 95% Non-condensing

Physical Characteristics

  • Dimensions (mm): 431(W) x 342(D) x 44(H)
  • Enclosure: metallic - IP30
  • Warranty 5 years

Accessories

  • SFP1G series 1Gbps SFP optical transceiver
  • SFP100 series 100Mbps SFP optical transceiver
  • DBU-01 Device Configuration Backup Unit
Regulatory Approvals
