RGS-P9000

Managed Cyber-hardened IEC 61850-3 modular rack mount managed Gigabit Ethernet switch with 4 slots, Dual AC/DC

Overview

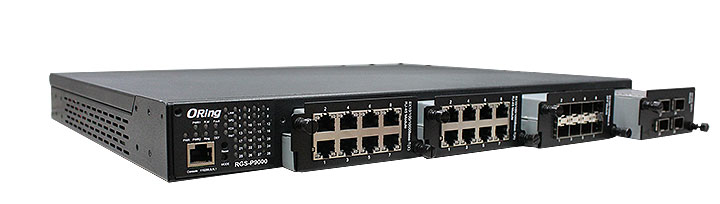

RGS-P9000 is Layer-2 modular managed redundant ring Ethernet switch with 4 slots. The switch is designed for power substation application and rolling stock application, fully compliant with the requirement of IEC 61850-3 and IEEE 1613. With completely support of Ethernet Redundancy protocol, O-Ring (recovery time < 30ms over 250 units of connection) and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. And support wide operating temperature from -40 ºC to 85 ºC. RGS-P9000 can also be managed centralized and convenient by Open-Vision, as well as the Web-based interface, Telnet and console (CLI) configuration.

rgs-p9000

Features

  • Modular Design, 4 slots (up to 3 slots for 8x1G port and 1 slot for 4x10G port)
  • 128 Gbps Switch bandwidth and 7µs latency
  • IEC 62443-4-1 and IEC 62443-4-2 industrial cybersecurity standards certified
  • Support O-Ring/O-Chain, IEC 62439-2 MRP, RSTP/MSTP for Ethernet Redundancy
  • Supports IEC 62439-3 HRS/PRP module for redundant network
  • Built-in MMS server and IEC 61850 QoS
  • Supports IEEE 1588v2 clock Synchronization
  • Application-based QoS management, IGMP snooping support, Device Binding security, DOS/DDOS auto prevention
  • Modbus TCP
  • SNMP v1/v2c/v3 support; RMON for traffic monitoring
  • ACL and 802.1x User Authentication for security
  • Open-Vision support centralized management; configurable by Web, Telnet, Console, CLI
  • IEEE 802.3az Energy-Efficient Ethernet
  • Transport NEMA TS1&TS2

RGS-P9000-LV -Chassis 4 slots, Low Voltage

Interfaces - Modules

  • 3+1 slots (up to 3 slots for 8x1G ports + 1 slot for 4x10G ports)
  • 1x RS232 Console Port (RJ45)

Power

  • Power Input: Dual 24/48VDC (20~72VDC)
  • Power Consumption (Typ.) 46 Watts
  • Overload Current Protection Present

Environmental

  • Op. Temp. 24VDC~36VDC (10G SFP+ module absent): -40 to 75°C
  • Op. Temp. 24VDC~36VDC (10G SFP+ module used): -20 to 50°C
  • Op. Temp. 36VDC~72VDC (10G SFP+ module absent): -40 to 85°C
  • Op. Temp. 36VDC~72VDC (10G SFP+ module used): -20 to 60°C
  • Operating Humidity 5% to 95% Non-condensing

RGS-P9000-HV -Chassis 4 slots, High Voltage

Interfaces - Modules

  • 3+1 slots (up to 3 slots for 8x1G ports + 1 slot for 4x10G ports)
  • 1x RS232 Console Port (RJ45)

Power

  • Power Input: Dual100-240(85~264) VAC /125~300(88~300) VDC
    power inputs at terminal block
  • Power Consumption (Typ.) 44 Watts
  • Overload Current Protection Present

Environmental

  • Operating Temperature (10G SFP+ module absent): -40 to 85°C
  • Operating Temperature (10G SFP+ module used): -20 to 60°C
  • Operating Humidity 5% to 95% Non-condensing

Physical Characteristics

  • Dimensions (mm): 440(W) x 356(D) x 44(H)
  • Enclosure: metallic - IP30
  • Warranty 5 years

Accessories

  • SFP1G series 1Gbps SFP optical transceiver
  • SFP100 series 100Mbps SFP optical transceiver
  • DBU-01 Device Configuration Backup Unit
openvision
sfp industrial
power supplies

  • Interfaces

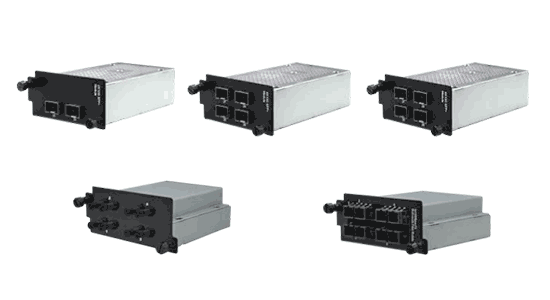

  • Modules for 10G slot

    • SWM-02GP+_4 - 2x10GBase-X, SFP+ socket
    • SWM-04GP+_4 - 4x10GBase-X SFP+ ports
    • SWM-04GP_4 - 4x1GBase-X SFP ports
    • SWM-04GF-MM/SS-ST_4 - 4x 1000Base-SX/LX ST Fiber ports
    • SWM-04GF-MM/SS-SC_4 - 4x 1000Base-SX/LX SC Fiber ports

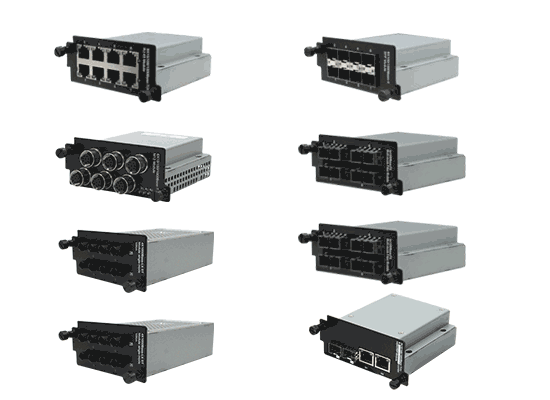

  • Modules for 1G slot

    • SWM-80GT - 8x 10/100/1000Base-T(X) RJ45 ports
    • SWM-08GP - 8x 100/1000Base-X, SFP socket
    • SWM-60GT-M12 - 6x 10/100/1000BaseT M12 ports
    • SWM-04GF-MM/SS-SC - 4x 1000Base-SX/LX SC Fiber ports
    • SWM-04FX-MM/SS-ST - 4x 1000Base-SX/LX ST Fiber ports
    • SWM-04FX-MM/SS-SC - 4x 100Base-FX/LX SC Fiber ports
    • SWM-04FX-MM/SS-ST- 4x 100Base-FX/LX ST Fiber ports
    • SWM-04FX-MM/SS-ST- 4x 100Base-FX/LX ST Fiber ports
    • SWM-20GT-HSR - 2x  100/1000 SFP combo HSR /PRP modular IEC 62439-3 Clause 4 (PRP) and Clause 5 (HSR) compliant

  • Regulatory Approvals

    • Industrial Cybersecurity IEC 62443-4-1, IEC 62443-4-2
    • EMC CE EMC (EN 55032, EN 55035), FCC Part 15B, IEC 61850-3, IEEE 1613
    • EMI EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15B class A, EN 61000-6-4
    • EMS EN 55032(IEC/EN 61000-4-2 (ESD), IEC/EN 61000-4-3 (RS),IEC/EN 61000-4-4 (EFT), IEC/EN 61000-4-5 (Surge), IEC/EN 61000-4-6 (CS), IEC/EN 61000-4-8(PFMF), IEC/EN 61000-4-11 (DIP)), EN 61000-6-2
    • Shock IEC60068-2-27
    • Free Fall IEC60068-2-32
    • Vibration IEC60068-2-6
    • Safety EN62368-1 , UL 61010-1, EN60950-1, IEC60950-1, UL60950-1
    • ITS Transport NEMA TS2
