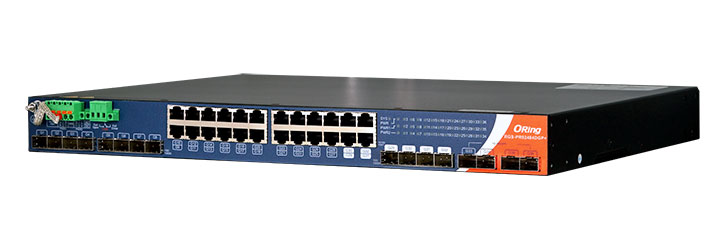

RGS-PR92484DGP+
Industrial Layer-3 36-port managed Gigabit Ethernet switch with 20x10/100/1000Base-T(X) +4x 100/1000Base SFP combo+8x 100/1000BaseX SFP and 4x1G/2.5G/10GBase-X, SFP+
Overview
RGS-PR92484DGP+ industrial substation automation Ethernet Layer 3 Managed switch is specially designed for industry applications. Equipped with 20x 10/100/1000Base-T(X) ports, 4x gigabit combo ports, 8x 100/1000BaseX SFP ports and 4x 1000/2500/10000BaseX SFP ports, making it ideal for large-scale industrial networks. The fanless switch supports redundant ring and RSTP/STP technologies, it also come with an isolated redundant power supply to increase system reliability and availability.
Features
- 144 Gbps Switch bandwidth and 7µs latency
- Support Layer 3 static routing, OSPF, RIP and VRRP
- Support O-Ring (recovery time < 30ms) and MSTP(RSTP/STP compatible) for Ethernet Redundancy
- O-Chain allow multiple redundant network rings. Standard IEC 62439-2 MRP on request
- Support SMTP client and SNTP server protocol
- Application-based QoS management, IGMP snooping support, Device Binding security, DOS/DDOS auto prevention
- Modbus TCP
- SNMP v1/v2c/v3 support; RMON for traffic monitoring
- ACL and 802.1x User Authentication for security
- Event notification through Syslog, Email, SNMP trap
- Open-Vision support centralized management; configurable by Web, Telnet, Console, CLI
- IEC 61850-3 and IEEE 1613 certified
RGS-PR92484DGP+ Specifications
Interfaces
- 20 x 10/100/1000Base-TX Ports in RJ45 Auto MDI/MDIX
- 4x Combo Gigabit (SFP/RJ45) ports
- 8x 100/1000BaseX SFP ports
- 4x 1G/2.5G/10GBase-X with SFP+ port
- 1x RS232 Console Port (RJ45)
Power
- Power Input: Dual 100 ~ 240VAC/DC
- Overload Current Protection Present
Environmental
- Operating Temperature -40 to 75°C (-40 to 167°F)
- Operating Humidity 5% to 95% Non-condensing
Physical Characteristics
- Dimensions (mm): 442(W) x 335(D) x 44(H)
- Enclosure: metallic - IP30
- Warranty 5 years
Accessories
- SFP1G series 1Gbps SFP optical transceiver
- SFP100 series 100Mbps SFP optical transceiver
- DBU-01 Device Configuration Backup Unit
