IES-1041FX
Industrial Mini Type 5 port Unmanaged Ethernet Switch
Overview
IES-1041FX series are unmanaged Ethernet switches with 4 x 10/100Base-T(X) and 100Base-FX ports. IES-1041FX series support redundant power input, configurable relay output alarm and rigid IP-30 housing. In addition, the wide operating temperature range from -40 to 75°C can satisfy most of operating environment.
Features
- 4x 10/100Base-T(X) and 1x100Base-FX fiber ports
- Switching latency: 7 µs - Switching bandwidth: 1Gbps
- Very wide operating temperature range from -40 to 75°C
- Dual redundant DC power inputs at terminal block
- Rigid IP-30 housing design
- DIN Rail mounting
Interfaces

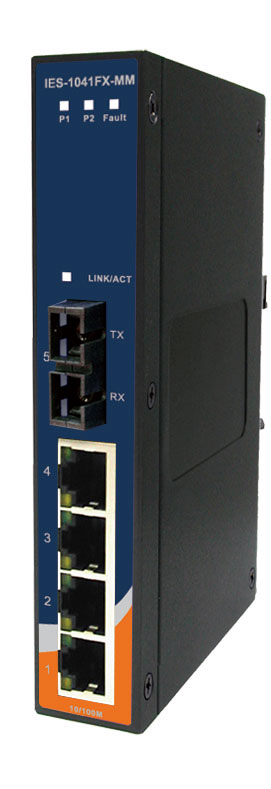

IES-1041FX-MM
- 4 x 10/100Base-T(X) Ports in RJ45 Auto MDI/MDIX
- 1 x 100Base-FX Multimode 1310nm(2Km), SC connector
IES-1041FX-SS
- 4 x 10/100Base-T(X) Ports in RJ45 Auto MDI/MDIX
- 1 x 100Base-FX Singlemode 1310nm(30Km), SC connector
Environmental
- Operating Temperature -40 to 75°C
- Operating Humidity 5% to 95% Non-condensing
Power
- Redundant Input Power Dual DC inputs. 12-48VDC on 6-pin terminal block
- Power Consumption (Typ.) 5 Watts
- Overload Current Protection Present
Physical Characteristics
- Dimensions (mm): 26.1(W) x 94.9(D) x 144.3(H)
- Enclosure: metallic - IP30
- Warranty: 5 years
Accessories
- MDR Series
- NDR-75 series 75W DIN-Rail power supply
