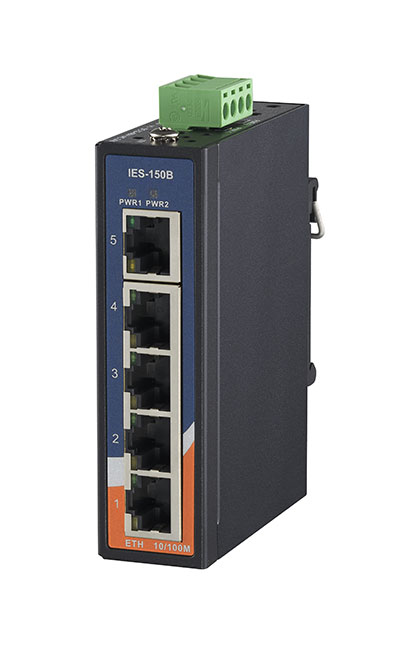

IES-150B Unmanaged Switch
Industrial Mini Type 5 port Unmanaged Ethernet Switch
Overview IES-150B
IES-150B is an unmanaged Ethernet switch with 5x10/100Base-T(X) ports. With very mini size of housing, you can install IES-150B easily. In addition, IES-150B is with rigid IP-30 housing design and can operate under harsh environment. The extended operating temperature range from -40 to 75°C is ready and can satisfy most requirement of operation.
Features IES-150B
- Support 5 x 10/100Base-T(X) ports
- Switching latency: 7 µs - Switching bandwidth: 1Gbps
- Very wide operating temperature range from -40 to 75°C
- Dual redundant DC power inputs at terminal block
- Rigid IP-30 housing design
- DIN Rail mounting
- E-Mark
Interfaces
- 5 x 10/100Base-T(X) Ports in RJ45 Auto MDI/MDIX
Environmental
- Operating Temperature -40 to 75°C
- Operating Humidity 5% to 95% Non-condensing
Power
- Redundant Input Power Dual DC inputs. 12-48VDC on 4-pin terminal block
- Power Consumption (Typ.) 3 Watts
- Overload Current Protection Present
Physical Characteristics
- Dimensions (mm): 26,1 (W) x 70 (D) x 95 (H)
- Enclosure: metallic - IP30
- Warranty: 5 years
Accessories
- MDR Series
- NDR-75 series 75W DIN-Rail power supply
