IGS-1041GPA Industrial Switch

Industrial 6-port slim type unmanaged Gigabit Ethernet switch with 4x10/100/1000Base-T(X) and 1x 1000Base-X, SFP socket

Overview
IGS-1041GPA series is an unmanaged gigabit Ethernet switch with 4 x 10/100/1000Base-T(X) and 1 x 1000Base-X SFP ports. IGS-1041GPA series support redundant power inputs, rigid IP-30 housing and have DIP switches for enabling or disabling relay output alarm. In addition, the wide operating temperature range from -40 to 70°C can satisfy most of operating environment.

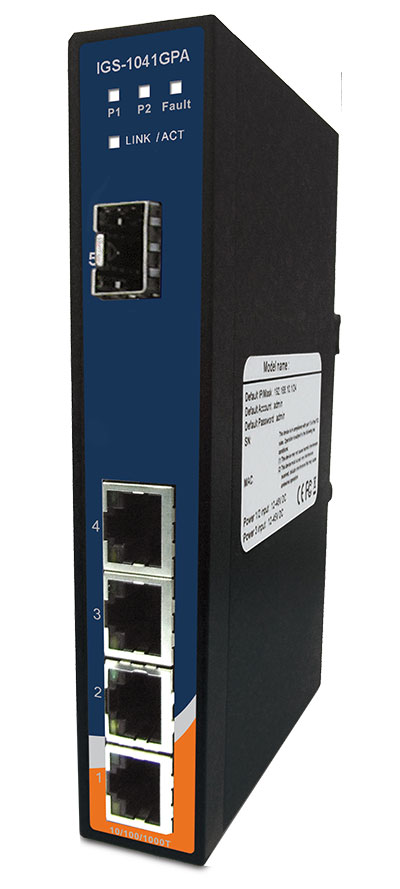

igs-1041gpa industrial switch

Features  IGS-1041GPA

  • Support 4 x 10/100/1000Base-T(X) and fiber ports
  • Very wide operating temperature range from -40 to 70°C
  • Dual redundant DC power inputs at terminal block
  • Rigid IP-30 housing design
  • DIN Rail mounting

Interfaces

  • 4 x 10/100/1000Base-T(X) Ports in RJ45 Auto MDI/MDIX
  • 1 x 1000 BaseX (SFP)

Environmental

  • Operating Temperature -40 to 70°C
  • Operating Humidity 5% to 95% Non-condensing

Power

  • Redundant Input Power Dual DC inputs. 12-48VDC on 6-pin terminal block
  • Power Consumption (Typ.) 5,5 Watts
  • Overload Current Protection Present
  • Relay output to carry capacity of 1A at 24VDC

Physical Characteristics

  • Dimensions (mm): 26,1(W) x 94,9(D) x 144,3(H)
  • Enclosure: metallic - IP30
  • Warranty: 5 years

Accessories

  • SFP 1G modules
  • NDR-75 series 75W DIN-Rail power supply
