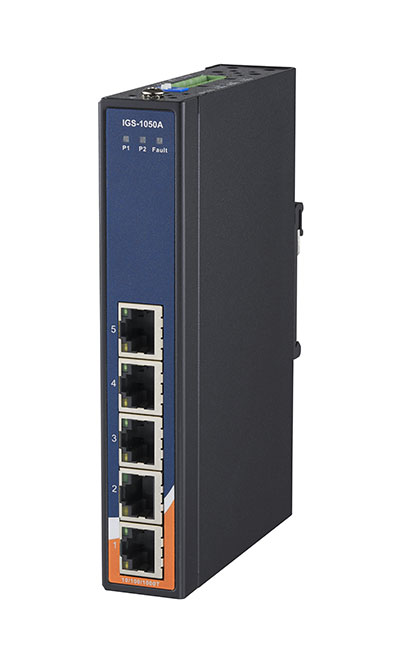

IGS-1050A
Industrial 5-port slim type unmanaged Gigabit Ethernet switch with 5x10/100/1000Base-T(X)
Overview
IGS-1050A is a unmanaged gigabit Ethernet switch with 5x 10/100/1000Base-T(X) ports. IGS-1050A supports redundant power inputs, rigid IP-30 housing and have DIP switch for enabling or disabling relay output alarm. In addition, the wide operating temperature range from -40 to 70°C can satisfy most of operating environment.
Features
- Support 5 x 10/100/1000Base-T(X)
- Very wide operating temperature range from -40 to 70°C
- Dual redundant DC power inputs at terminal block
- Rigid IP-30 housing design
- DIN Rail mounting
Interfaces
- 5 x 10/100/1000Base-T(X) Ports in RJ45 Auto MDI/MDIX
Environmental
- Operating Temperature -40 to 70°C
- Operating Humidity 5% to 95% Non-condensing
Power
- Redundant Input Power Dual DC inputs. 12-48VDC on 6-pin terminal block
- Power Consumption (Typ.) 5,5 Watts
- Overload Current Protection Present
- Relay output to carry capacity of 1A at 24VDC
Physical Characteristics
- Dimensions (mm): 26,1(W) x 94,9(D) x 144,3(H)
- Enclosure: metallic - IP30
- Warranty: 5 years
Accessories
- NDR-75 series 75W DIN-Rail power supply
