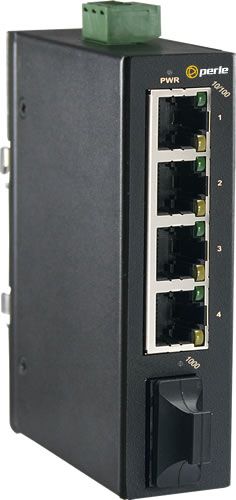

IDS-104FE
Industrial 5 port Unmanaged Fast Ethernet Switch
Overview
Perle IDS-104FE Industrial Gigabit Ethernet Switches are designed for easy deployment in industrial environments with harsh operating conditions and limited space. Designed to stand up to extreme temperatures, surges, vibrations, and shocks found in industrial automation, infrastructure, transportation, security, oil and gas, and mining.
For automation and industrial control systems using EtherNet/IP or PROFINET, these rugged DIN rail mountable switches with metal housing provides security and easy installation.
Features
- 4x 10/100TX ports
- IEEE 802.1p Quality of Service (QoS)
- IEEE 802.3az Energy Efficient Ethernet
- Power input 12/24/48 VDC
- Plastic compact DIN-Rail industrial case design.
- Provides 4kV surge protection
- Very high MTBF
- Complies with EN 61000-6-2 & EN 61000-6-4 EMC
IDS-104FE Specifications
Interfaces- 4 x 10/100Base-T(X) Ports in RJ45 Auto MDI/MDIX
- 1 x 100BaseX Ports in Duplex SC/ST
IDS-104FE-M2SC2 - 4x 10/100TX + 1x 100Base-FX, 1310nm multimode (2Km), duplex SC
IDS-104FE-M2ST2 - 4x 10/100TX + 1x 100Base-FX, 1310nm multimode (2Km), duplex ST
IDS-104FE-S2SC2 - 4x 10/100TX + 1x 100BaseFX, 1310nm singlemode (20Km), duplex SC
IDS-104FE-S2ST2 - 4x 10/100TX + 1x 100BaseFX, 1310nm singlemode (20Km), duplex ST
- DC input. 12-48VDC on 3-pin terminal block
- Power Consumption (Typ.) 2 Watts
- Overload Current Protection Present
- Operating Temperature -10°C to 60°C
- Operating Humidity 5% to 90% Non-condensing
- Dimensions (mm): 30 (W) x 70 (D) x 110 (H)
- Enclosure: plastic - IP30
- Warranty 5 years
- 75W DIN Rail Power Suply
- Panel/Wall mount kit
