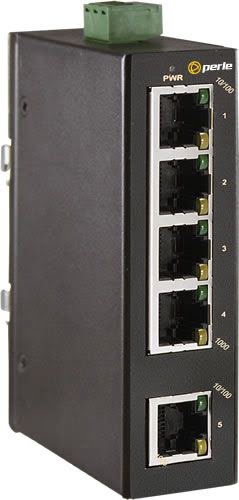

IDS-105FE
Industrial 5 port Unmanaged Fast Ethernet Switch
Overview
Perle IDS-105FE Industrial Gigabit Ethernet Switches are designed for easy deployment in industrial environments with harsh operating conditions and limited space. Designed to stand up to high temperatures, surges, vibrations, and shocks found in industrial automation, infrastructure, transportation, security, oil and gas, and mining.
For automation and industrial control systems using EtherNet/IP or PROFINET, these rugged DIN rail mountable switches with metal housing provides security and easy installation.
Features
- 5x 10/100TX ports
- IEEE 802.1p Quality of Service (QoS)
- IEEE 802.3az Energy Efficient Ethernet
- Power inputs 12/24/48 VDC
- Plastic compact DIN-Rail industrial case design.
- Rigid IP-30 housing; DIN-Rail
- Very High MTBF values
- Provides 4kV surge protection
- Complies with EN 61000-6-2 & EN 61000-6-4
IDS-105FE Specifications
Interfaces- 5x 10/100Base-T(X) Ports in RJ45 Auto MDI/MDIX
Power
- DC inputs. 12-48VDC on 3-pin terminal block
- Power Consumption (Typ.) 2 Watts
- Overload Current Protection Present
Enviromental
- Operating Temperature -10°C to 60°C
- Operating Humidity 5% to 90% Non-condensing
Physical Characteristics
- Dimensions (mm): 30 (W) x 70 (D) x 110 (H)
- Enclosure: plastic - IP30
- Warranty 5 years
Accessories
- 75W DIN Rail Power Suply
- Panel/Wall mount kit
