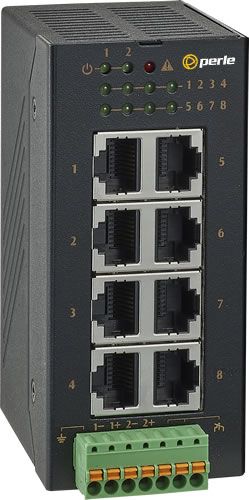

IDS-108FE
Industrial 8 port Unmanaged Fast Ethernet Switch
Overview
Perle IDS-108FE Industrial Fast Ethernet Switches are designed for easy deployment in industrial environments with harsh operating conditions and limited space. Designed to stand up to extreme temperatures, surges, vibrations, and shocks found in industrial automation, infrastructure, transportation, security, oil and gas, and mining.
These unmanaged switches support 9 to 55VDC redundant power input and provide a relay alarm for power failure. QoS support allows for traffic prioritization and effective management of resources.
For automation and industrial control systems using EtherNet/IP or PROFINET, these rugged DIN rail mountable switches with metal housing provides security and easy installation.
Features
- 8x 10/100TX ports
- IEEE 802.1p Quality of Service (QoS)
- IEEE 802.3az Energy Efficient Ethernet
- Dual DC inputs
- Compact, corrosion resistant metal case
- Rigid IP-40 housing; DIN-Rail
- Very high MTBF
- EN50121-4
IDS-108FE Specifications
- 8 x 10/100Base-T(X) Ports in RJ45 Auto MDI/MDIX
- 1x Alarm contact - One relay output with current 0.5A@30V
IDS-108FE- Operating Temperature -10°C to 60°C
IDS-108FE-XT - Operating Temperature -40°C to 75°C
- Operating Humidity 5% to 90% Non-condensing
- Dual DC inputs. 12-48VDC on -pin terminal block
- Power Consumption (Typ.) 3,4 Watts
- Overload Current Protection Present
- Dimensions (mm): 45 (W) x 75 (D) x 100 (H)
- Enclosure: metal - IP30
- Weight: 0,34Kg
- Warranty 5 years
- 75W DIN Rail Power Suply
- Panel/Wall mount kit
