IAP-420 Industrial Access Point

Industrial IEEE 802.11 b/g/n wireless access point

Overview IAP-420

IAP-420 / IAP-420+ series are reliable 802.11 b/g/n WLAN Access Point with 2 ports LAN. It supports 802.1X and MAC filters for security control. It can be configured to operate in AP/Bridge/Repeater/AP-Client mode. You are able to configure IAP-420 / IAP-420+ series by WEB interface via LAN port or WLAN interface. In addition, IAP-420+ also provides P.D. feature on ETH1 which is fully compliant with IEEE802.3af PoE P.D. specification.

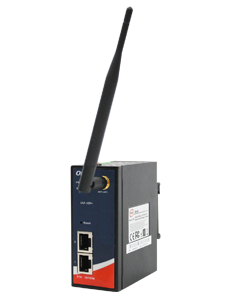

iap-420 industrial access point

Features IAP-420

  • High Speed Air Connectivity: WLAN interface support up to 150Mbps link speed
  • Support X-Roaming < 100 ms
  • Highly Security Capability: WEP/WPA/WPA-PSK(TKIP,AES)/ WPA2/WPA2-PSK(TKIP,AES)/802.1X  Authentication supported
  • Support AP/Repeater/AP-Client Mode
  • Support Multiple SSID to 4 SSID with VLAN
  • Secured Management by HTTPS
  • Event Warning by Syslog, Email, SNMP Trap and Relay output
  • Rigid IP-30 DIN Rail housing design
industrial antennas
power supplies

Interfaces

  • 1x WIFI 802.11 b/g/n
  • 2x 10/100Base-T(X) Port in RJ45

Antenna and connector: 2Dbi Antenna, Reverse SMA

Transmission Rate

  • IEEE 802.11b : 1/ 2/ 5.5/ 11 Mbps
  • IEEE 802.11g : 6/ 9/ 12/ 18/ 24/ 36/ 48/ 54 Mbps
  • IEEE 802.11n: up to 150Mbps

Frequency Band

  • America/FCC : 2.412~2.462 GHz (11 channels)
  • Europe CE/ETSI : 2.412~2.472 GHz (13 channels)

Power

IAP-420

  • Dual DC Inputs: 12-48VDC on 4pin terminal block and from P.o.E
  • Power Consumption (Typ.) 7 Watts

IAP-420+

  • Dual DC Inputs: 12-48VDC on 4pin terminal block and from P.o.E
  • PoE P.D. Port  Present at ETH1 - Fully compliant with IEEE 802.3af
  • Power Consumption (Typ.) 4 Watts

Environmental

  • Operating Temperature -10 to 60°C
  • Operating Humidity 5% to 95% Non-condensing

Physical Characteristics

  • Dimensions (mm): 41 (W) x 81 (D) x 95 (H)
  • Enclosure: metallic - IP30
  • Warranty 3 years

Accessories

  • MDR-30 series, 30W Din Rail Power Supply
  • NDR-75 series, 75W Din Rail Power Supply
  • Antennas

  • Regulatory Approvals

    • EMC CE EMC (EN 55024, EN 55032), FCC Part 15B
    • EMI EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15B class A
    • EMS EN 55024 (IEC/EN 61000-4-2 (ESD), IEC/EN 61000-4-3 (RS), IEC/EN 61000-4-4 (EFT), IEC/EN 61000-4-5 (Surge), IEC/EN 61000-4-6 (CS), IEC/EN61000-4-8(PFMF), IEC/EN 61000-4-11(DIP))
    • Shock IEC60068-2-27
    • Free Fall IEC60068-2-31
    • Vibration IEC60068-2-6
    • Safety UL60950-1
  • MTB 211477 hrs
