IGAP-840D Industrial Access Point

Industrial WIFI 5 Access Point with 4x10/100/1000Base-T(X)

Overview

The IGAP-840D is a reliable industrial WLAN Access Point featuring four Gigabit Ethernet ports and dual-band Wi-Fi 5 connectivity with speeds up to 867 Mbps. It supports AP, Client, and Repeater modes, configurable via LAN or WLAN through a secure HTTPS interface. With strong security features like WPA/WPA2, 802.1X, MAC filtering, and up to four SSIDs with VLAN, it ensures safe and flexible wireless communication. Additional features include X-Roaming (<100 ms), 2x2 MIMO, digital I/O, dual 12–48VDC power input, and rugged IP-30 housing, making it ideal for industrial wireless applications.

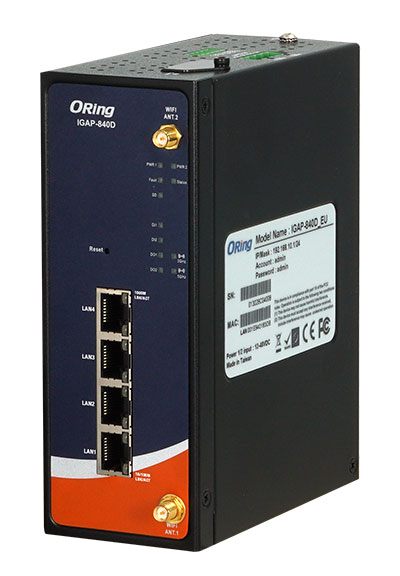

igap-840D

Features

  • High Speed Air Connectivity: Dual Band concurrently in WIFI 5
  • WLAN interface and support up to 867Mbps link speed
  • High data throughput with HT40 2x2 MIMO
  • Support X-Roaming < 100 ms
  • Support MAC Filtering
  • Highly Security Capability: WEP/WPA/WPA-PSK(TKIP,AES)/ WPA2/WPA2-PSK(TKIP,AES)/802.1X  Authentication supported
  • Support AP/Repeater/AP-Client Mode
  • Support Multiple SSID to 4 SSID with VLAN
  • Secured Management by HTTPS
  • Event Warning by Syslog, Email, SNMP Trap and Relay output
  • Provide 2 DI and 2 DO
  • IP-30 housing design
  • DIN-Rail and Wall-mount enabled
antennas
power supplies

Interfaces

  • 1x WIFI 802.11 ac/a/b/g/n
  • 4x 10/100/1000Base-T(X) Port in RJ45
  • 2x DI/DO

Antenna and connector: 2 x Reverse SMA Female

Transmission Rate

  • IEEE 802.11b : 1/ 2/ 5.5/ 11 Mbps
  • IEEE 802.11g : 6/ 9/ 12/ 18/ 24/ 36/ 48/ 54 Mbps
  • IEEE 802.11n: up to 300Mbps

Frequency Band

  • America/FCC : 2.412~2.462 GHz (11 channels)
  • Europe CE/ETSI : 2.412~2.472 GHz (13 channels) 5.180~5.240 GHz (4 channels)

Power

  • Dual DC inputs. 12-48VDC on 4-pin terminal block
  • Power Consumption (Typ.) 13 Watts

Environmental

  • Operating Temperature -10 to 70°C
  • Operating Humidity 5% to 95% Non-condensing

Physical Characteristics

  • Dimensions (mm): 60(W) x 125(D) x 158(H)
  • Warranty 5 years

Accessories

  • Antennas

  • Regulatory Approvals

    • EMC CE EMC (EN 55024, EN 55032), FCC Part 15B
    • EMI EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15B class A
    • EMS EN 55024 (IEC/EN 61000-4-2 (ESD), IEC/EN 61000-4-3 (RS), IEC/EN 61000-4-4 (EFT), IEC/EN 61000-4-5 (Surge), IEC/EN 61000-4-6 (CS), IEC/EN61000-4-8(PFMF), IEC/EN 61000-4-11(DIP))
    • Shock IEC60068-2-27
    • Free Fall IEC60068-2-31
    • Vibration IEC60068-2-6
    • Safety UL60950-1
  • MTB 211477 hrs
