IGAP-W612H+ Industrial Access Point IP67

Industrial outdoor IEEE 802.11 a/b/g/n wireless access point with 10/100/1000Base-T(X) PoE P.D., IP-67 grade

Overview

IGAP-W612H+ is a reliable IP-67 outdoor IEEE 802.11 a/b/g/n WLAN Access Point with 1 PoE P.D. Ethernet port. It can be configured to operate in AP/Client/Repeater mode. Specifically designed for the toughest industrial environments. In combination with its IP-67 design and the superb management functionality, IGAP-W612H+ provides a waterproof, dust-tight connection. In addition, IGAP-W612H+ provides a high power output of 27 dBm and high throughput up to 180Mbps to satisfy far distance connection. IGAP-W612H+ provides two N-type connectors, which can install any N-type antennas to extend communication distance. You are able to configure IGAP-W612H+ by WEB interface via LAN port or WLAN interface. In addition, IGAP-W612H+ also provides P.D. feature which is fully compliant with the IEEE802.3at PoE P.D. specification to save the layout cost of the power line. IGAP-W612H+ can be easily adopted in almost all kinds of applications and provides the most rugged solutions for managing your network in outdoor.

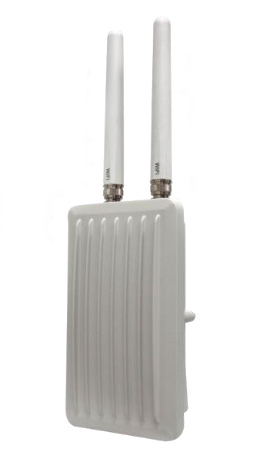

igap-w612h

Features

  • High-Speed Air Connectivity: Dual Band in IEEE 802.11 a/b/g/n and b/g/n WLAN interface selectable and support up to 300Mbps link speed
  • High throughput > 180Mbps with HT40 2x2 MIMO. High transmission power (27 dBm)
  • Support X-Roaming < 100 ms
  • Support MAC Filtering
  • Highly Security Capability: WEP/WPA/WPA-PSK(TKIP,AES)/ WPA2/WPA2-PSK(TKIP,AES)/802.1X  Authentication supported
  • Support AP/Repeater/AP-Client Mode
  • Support Multiple SSID to 4 SSID with VLAN
  • Secured Management by HTTPS
  • Event Warning by Syslog, Email, SNMP Trap and Relay output
  • Rigid IP-67 housing design
  • Pole mounting enabled
power supplies

Interfaces

  • 1x WIFI 802.11 a/b/g/n
  • 1x 10/100/1000Base-T(X) Port in RJ45

Antenna and connector: 2 x External N-type antenna connector

Transmission Rate

  • IEEE 802.11b : 1/ 2/ 5.5/ 11 Mbps
  • IEEE 802.11g : 6/ 9/ 12/ 18/ 24/ 36/ 48/ 54 Mbps
  • IEEE 802.11n: up to 300Mbps

Frequency Band

  • America/FCC : 2.412~2.462 GHz (11 channels)
  • Europe CE/ETSI : 2.412~2.472 GHz (13 channels) 5.180~5.240 GHz (4 channels)

Power

  • 48VDC from P.o.E
  • Power Consumption (Typ.) 7 Watts

Environmental

  • Operating Temperature -10 to 70°C
  • Operating Humidity 5% to 95% Non-condensing

Physical Characteristics

  • Dimensions (mm): 220,42 (W) x 127,42 (D) x 75 (H)
  • Enclosure: IP67
  • Warranty 5 years

Accessories

  • Antennas

  • Regulatory Approvals

    • EMC CE EMC (EN 55024, EN 55032), FCC Part 15B
    • EMI EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15B class A
    • EMS EN 55024 (IEC/EN 61000-4-2 (ESD), IEC/EN 61000-4-3 (RS), IEC/EN 61000-4-4 (EFT), IEC/EN 61000-4-5 (Surge), IEC/EN 61000-4-6 (CS), IEC/EN61000-4-8(PFMF), IEC/EN 61000-4-11(DIP))
    • Shock IEC60068-2-27
    • Free Fall IEC60068-2-31
    • Vibration IEC60068-2-6
    • Safety UL60950-1
  • MTB 211477 hrs
