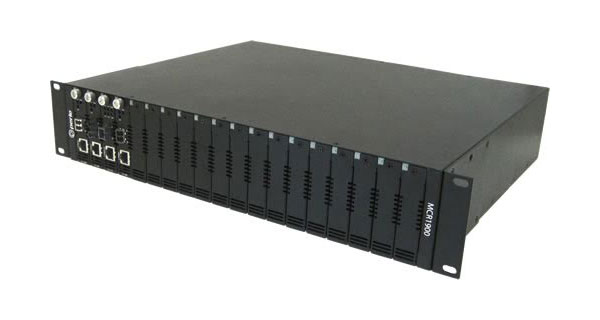

MCR1900 - Chasis Conversores Fibra Óptica
Sistema modular de alta densidad basado en chasis para conversores de medios. Ideal para entornos empresariales y de campus donde se requieren múltiples puntos de integración. Opcionalmente, se puede integrar una tarjeta de gestión SNMP.
- Sistema modular de alta densidad, 19 slots, para media converter fibra o extender cobre
- Alimentación redundante Load Sharing. Módulos Hot Swap
- Gestión SNMP opcional
MCR1900 - Bastidor para módulos conversores / extender
| MCR1900-AC - Chasis 19 slots para módulos media converter. Alimentación AC |
| MCR1900-DAC - Chasis 19 slots para módulos media converter. Alimentación Dual AC |
| MCR1900-DC - Chasis 19 slots para módulos media converter. Alimentación 48VDC |
| MCR1900-DDC - Chasis 19 slots per módulos converter. Alimentación Dual 48VDC |
| MCR-MGT - Módulo Gestión SNMP read/write, Telnet/SSH, Internet Browser access |
| PerleView - Device Management System Software |
High Density Platform
Rugged Chassis Design
Hot-Swappable modules
Power Supply Failover
Intelligent alarm relay
Módulos Conversores Fibra óptica
- Para Fibras multimodo o monomodo; Conectores SC, LC y ST. Distancias hasta 120 km
- Funcionalidades avanzadas - Link Pass-Through, Far-End Fault, Auto-MDIX y Loopback
- Para las versiones Managed: Información y Control de la puerta y del módulo
Fast ethernet
100 Mbps lado cobre y lado fibra
| Modelos Gestionados | Modelos No Gestionados | Descripción | Con. |
|---|---|---|---|
| Multimodo | |||
| CM-100-M2ST2 CM-100-M2SC2 CM-100-M2LC2 |
C-100-M2ST2 C-100-M2SC2 C-100-M2LC2 |
100BASE-TX to 100BASE-FX 1310nm, 2 Km |
ST SC LC |
| Monomodo | |||
| CM-100-S2ST20 CM-100-S2SC20 CM-100-S2LC20 |
C-100-S2ST20 C-100-S2SC20 C-100-S2LC20 |
100Base-TX a 100Base-LX 1310nm, 20 Km |
ST SC LC |
| CM-100-S2SC40 CM-100-S2ST40 CM-100-S2LC40 |
C-100-S2SC40 C-100-S2ST40 C-100-S2LC40 |
100Base-TX a 100Base-EX 1310nm, 40 Km |
ST SC LC |
| CM-100-S2SC80 CM-100-S2ST80 CM-100-S2LC80 |
C-100-S2SC80 C-100-S2ST80 C-100-S2LC80 |
100Base-TX a 100Base-ZX 1550nm, 80 Km |
ST SC LC |
| CM-100-S2SC120 CM-100-S2ST120 CM-100-S2LC120 |
C-100-S2SC120 C-100-S2ST120 C-100-S2LC120 |
100Base-TX a 100Base-ZX 1550nm, 120 Km |
ST SC LC |
Ethernet 10/100
10/100 Mbps lado cobre y 100Mbps lado fibra
| Modelos Gestionados | Modelos No Gestionados | Descripción | Con. |
|---|---|---|---|
| Multimodo | |||
| CM-110-M2ST2 CM-110-M2SC2 CM-110-M2LC2 |
C-110-M2ST2 C-110-M2SC2 C-110-M2LC2 |
10/100BASE-TX to 100BASE-FX 1310nm, 2 Km |
ST SC LC |
| Monomodo | |||
| CM-110-S2ST20 CM-110-S2SC20 CM-110-S2LC20 |
C-110-S2ST20 C-110-S2SC20 C-110-S2LC20 |
10/100Base-TX a 100Base-LX 1310nm, 20 Km |
ST SC LC |
| CM-110-S2SC40 CM-110-S2ST40 CM-110-S2LC40 |
C-110-S2SC40 C-110-S2ST40 C-110-S2LC40 |
10/100Base-TX a 100Base-EX 1310nm, 40 Km |
ST SC LC |
| CM-110-S2SC80 CM-110-S2ST80 CM-110-S2LC80 |
C-110-S2SC80 C-110-S2ST80 C-110-S2LC80 |
10/100Base-TX a 100Base-ZX 1550nm, 80 Km |
ST SC LC |
| CM-110-S2SC120 CM-110-S2ST120 CM-110-S2LC120 |
C-110-S2SC120 C-110-S2ST120 C-110-S2LC120 |
10/100Base-TX a 100Base-ZX 1550nm, 120 Km |
ST SC LC |
10 Gigabit
10M/100M/1G/2,5G/10 Gbps lado cobre y 1/10 Gbps lado fibra
| Modelos Gestionados | Modelos No Gestionados | Descripción |
|---|---|---|
| SFP | ||
| CM-10GRT-SFP | C-10GRT-SFP | 10M/100M/1G/2,5G/10GBaseT a 1G/10GBaseX (SFP) |
| CM-10GR-STS | C-10GR-STS | Dual slot 1G/10GBaseX(SFP) |
Gigabit Ethernet
1 Gbps lado cobre y 1 Gbps lado fibra
| Modelos Gestionados | Modelos No Gestionados | Descripción | Con. |
|---|---|---|---|
| SFP | |||
| CM-1000-SFP | C-1000-SFP | 1000BASE-T a1000BASE X (SFP vacio) | |
| Multimodo | |||
| CM-1000-M2ST05 CM-1000-M2SC05 CM-1000-M2LC05 |
C-1000-M2ST05 C-1000-M2SC05 C-1000-M2LC05 |
1000BASE-TX a 1000Base-SX 850nm, 550m |
ST SC LC |
| CM-1000-M2ST2 CM-1000-M2SC2 CM-1000-M2LC2 |
C-1000-M2ST2 C-1000-M2SC2 C-1000-M2LC2 |
1000BASE-TX a 1000Base-LX 1310nm, 2Km |
ST SC LC |
| Monomodo | |||
| CM-1000-S2ST10 CM-1000-S2SC10 CM-1000-S2LC10 |
C-1000-S2ST10 C-1000-S2SC10 C-1000-S2LC10 |
1000Base-TX a 1000Base-LX 1310nm, 10 Km |
ST SC LC |
| CM-1000-S2SC40 CM-1000-S2ST40 CM-1000-S2LC40 |
C-1000-S2SC40 C-1000-S2ST40 C-1000-S2LC40 |
1000Base-TX a 1000Base-EX 1310nm, 40 Km |
ST SC LC |
| CM-1000-S2SC70 CM-1000-S2ST70 CM-1000-S2LC70 |
C-1000-S2SC70 C-1000-S2ST70 C-1000-S2LC70 |
1000Base-TX a 1000Base-ZX 1550nm, 70 Km |
ST SC LC |
| CM-1000-S2SC120 CM-1000-S2ST120 CM-1000-S2LC120 |
C-1000-S2SC120 C-1000-S2ST120 C-1000-S2LC120 |
1000Base-TX a 1000Base-EZX 1550nm, 120 Km |
ST SC LC |
Ethernet 10/100/1000
10/100/1000 Mbps lado cobre y 1 Gbps lado fibra
| Modelos Gestionados | Modelos No Gestionados | Descripción | Con. |
|---|---|---|---|
| SFP | |||
| CM-1110-SFP | C-1110-SFP | 10/100/1000BASE-TX a 1000Base-X (SFP, slot vuoto) | |
| Multimodo | |||
| CM-1110-M2ST05 CM-1110-M2SC05 CM-1110-M2LC05 |
C-1110-M2ST05 C-1110-M2SC05 C-1110-M2LC05 |
10/100/1000BASE-TX a 1000Base-SX 850nm, 550m |
ST SC LC |
| CM-1110-M2ST2 CM-1110-M2SC2 CM-1110-M2LC2 |
C-1110-M2ST2 C-1110-M2SC2 C-1110-M2LC2 |
10/100/1000BASE-TX a 1000Base-LX 1310nm, 2Km |
ST SC LC |
| Monomodo | |||
| CM-1110-S2ST10 CM-1110-S2SC10 CM-1110-S2LC10 |
C-1110-S2ST10 C-1110-S2SC10 C-1110-S2LC10 |
10/100/1000Base-TX a 1000Base-LX 1310nm, 10 Km |
ST SC LC |
| CM-1110-S2SC40 CM-1110-S2ST40 CM-1110-S2LC40 |
C-1110-S2SC40 C-1110-S2ST40 C-1110-S2LC40 |
10/100/1000Base-TX a 1000Base-EX 1310nm, 40 Km |
ST SC LC |
| CM-1110-S2SC70 CM-1110-S2ST70 CM-1110-S2LC70 |
C-1110-S2SC70 C-1110-S2ST70 C-1110-S2LC70 |
10/100/1000Base-TX a 1000Base-ZX 1550nm, 70 Km |
ST SC LC |
| CM-1110-S2SC120 CM-1110-S2ST120 CM-1110-S2LC120 |
C-1110-S2SC120 C-1110-S2ST120 C-1110-S2LC120 |
10/100/1000Base-TX a 1000Base-EZX 1550nm, 120 Km |
ST SC LC |
